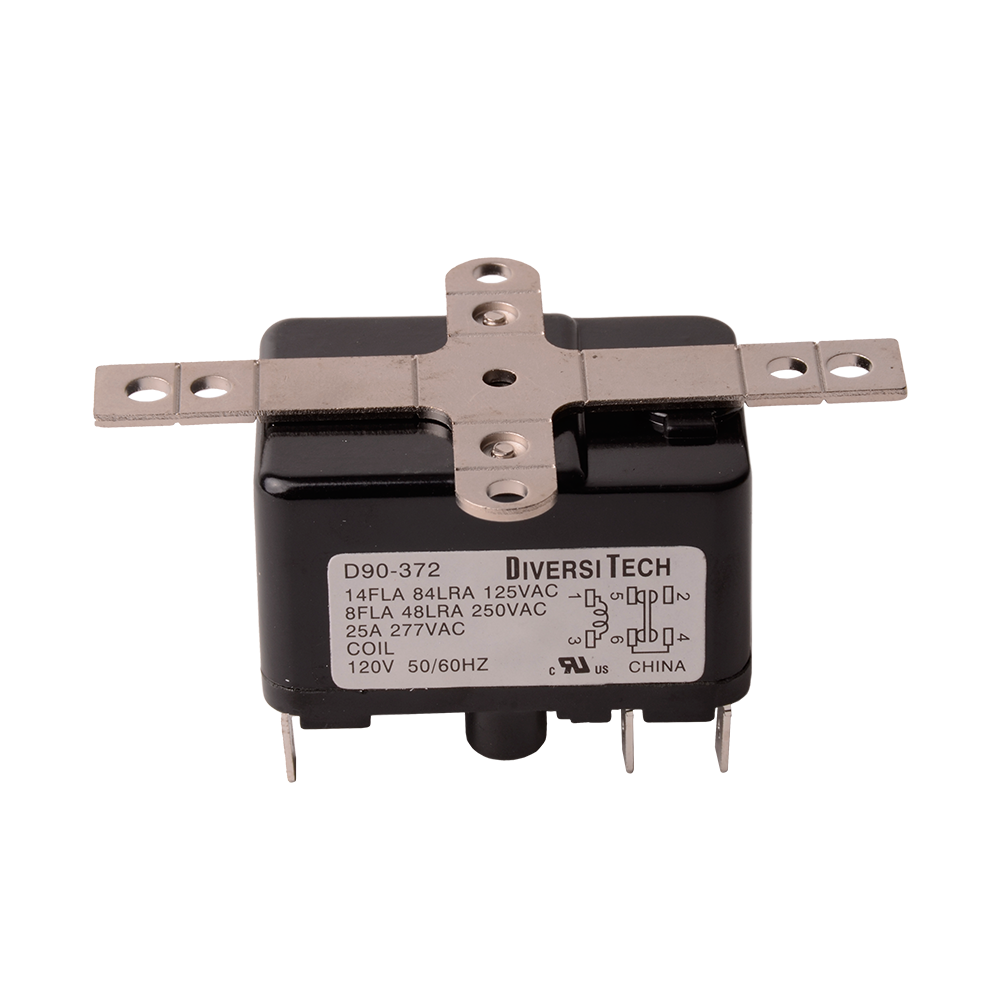

Diversitech D90-372 GP Relay 18A-120V

Product Description

The Diversitech D90-372 GP Relay (SPDT) is an 18A-120V relay suitable for heating, accessories, and replacement household furnace electronic relays. It features quick connect terminals and universal mounting with break-away tabs. It is used for switching solenoids, fan motors and general purpose switching. Manufactured in China.

• SPDT configuration.
• Features quick connect terminals.
• Universal mounting with break-away tabs.

Product Highlights

The Diversitech D90-372 is a general purpose relay with quick connect terminals and universal mounting.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: D90-372
• Country of Origin: china

Technical Specifications

• Product Type: RELAY
• Manufacturer: Diversitech
• Brand: Diversitech
• Model / MPN: D90-372
• Type: SPDT
• Hertz: 50/60
• Mount: Universal Mount
• Voltage: 120v
• Electrical Ratings (AFL): 8 A @ 250 VAC, 14 A @ 125 VAC
• Electrical Ratings (ALR): 84 A @ 125 VAC, 48 A @ 250 VAC
• Amperage Rating: 18 A
• Coil Voltage: 120 V AC
• Contact Form: 1 Form C SPDT
• Contact Rating: 14 FLA/60 LRA at 125 V, 8 FLA/25 LRA at 250 V
• Frequency Rating: 50/60 Hz
• Mounting Type: Surface
• Terminal Type: Quick-Connect
• Supplier Part #: D90-372
