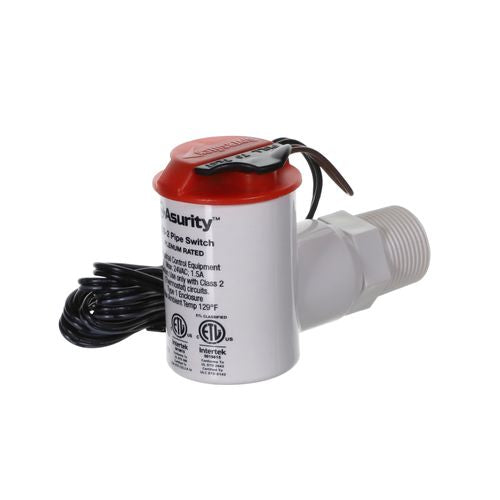

Diversitech cs-2-bulk50 Float Switch Bulk 50 Pack

Product Description

The DIVERSITECH cs-2-bulk50 is a bulk-packaged case of 50 CS-2 pipe-mounted elbow float switches engineered for condensate drain pan flood prevention in ducted air conditioning systems. Each switch uses a magnetic reed mechanism rated at 24 volts AC and 1.5 amps, operating in normally closed mode. When the water level in the auxiliary condensate drain pan rises due to a clogged drain line, the switch opens and shuts down the system before an overflow occurs. The plenum-rated housing and rust-resistant magnetic reed design make these switches a reliable choice for licensed HVAC technicians handling high-volume residential or light commercial installs.

This bulk case is intended for HVAC contractors and distributors who routinely install or stock float switches across multiple condensate drain pan applications. Each unit in the case is a pipe-mounted elbow style switch suited for ducted split systems and packaged units where an auxiliary drain pan or fitting is present. The Class 2 electrical classification and 2-wire connection simplify low-voltage integration into standard thermostat control circuits. A built-in test button on each switch allows quick field verification without waiting for actual water accumulation.

Key Features

• Bulk case of 50 individual CS-2 pipe-mounted elbow float switches for high-volume installs
• Magnetic reed switch mechanism resists rust and delivers consistent, repeatable operation
• Normally closed (N/C) SPST switch opens to cut system power when condensate level rises
• Plenum-rated housing meets air-handling space installation requirements
• Integrated test button on each unit allows immediate field function verification
• Class 2, 2-wire connection integrates directly into low-voltage control circuits

Compatibility

Designed as an OEM-style replacement and new-installation float switch for ducted residential and light commercial air conditioning systems equipped with an auxiliary condensate drain pan or elbow fitting.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with low-voltage control wiring. Shut off system power at the disconnect and thermostat before wiring the switch into the control circuit. The switch is rated for Class 2 low-voltage circuits only and must not be connected to line-voltage wiring. Use the integrated test button to confirm proper operation before returning the system to service.

Technical Specifications

• Rated Voltage: 24 volts AC
• Rated Current: 1.5 amps
• Switch Mode: Normally Closed (N/C)
• Switch Type: SPST
• Electrical Classification: Class 2
• Electrical Connection Type: 2-Wire
• Plenum Rated: Yes
• Test Switch: Yes
• Application: Drain Pan Flood Prevention
• Ducted or Ductless: Ducted
• Quantity: 50 units per case

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: cs-2-bulk50
