Diversitech CC-1 Condensate Cop Drain Pain Switch

Product Description

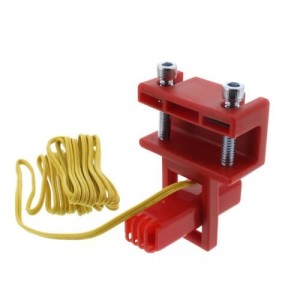

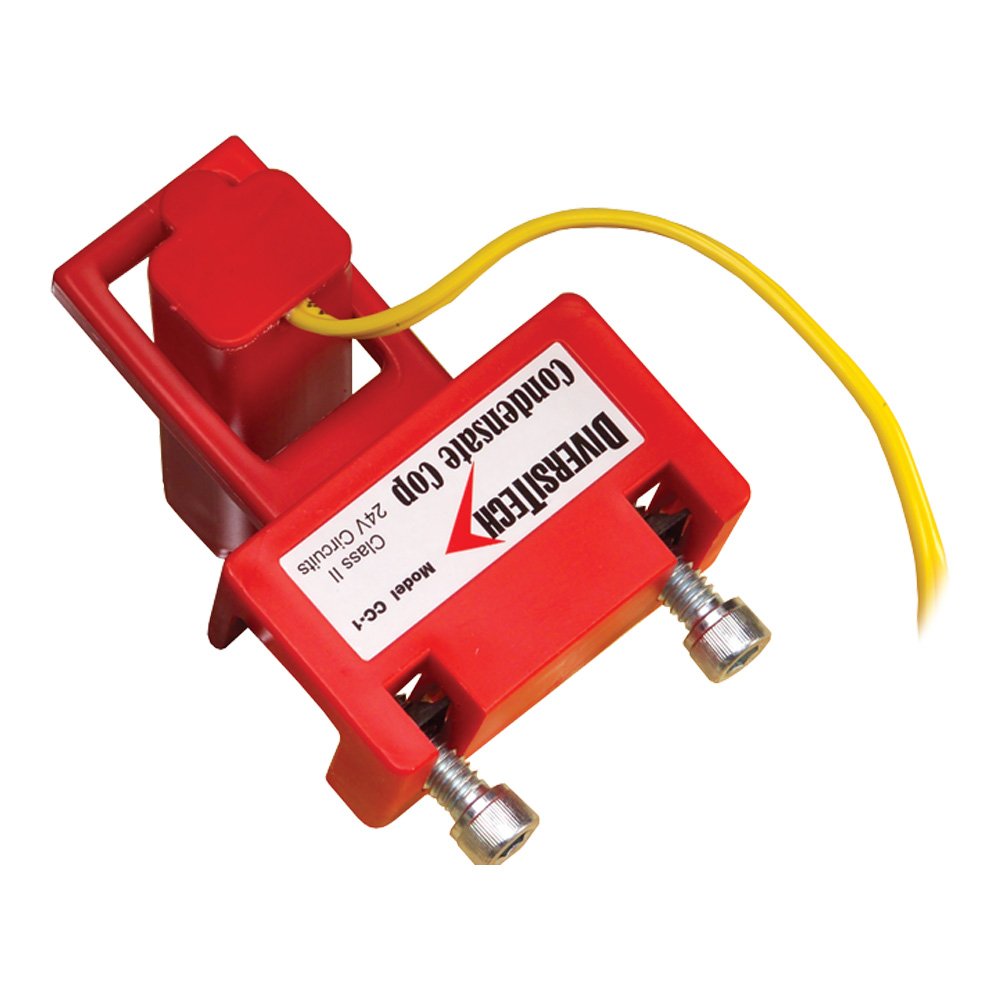

The DIVERSITECH CC-1 Condensate Cop Drain Pain Switch is a clamp-on float switch designed for HVAC drain pan installation. It features a large over-clamping area that fits easily over the edge of various drain pan types. A separate float/probe assembly swivels to accommodate drain pans with sloped sides. The switch opens when rising water presents a potential flooding condition.

• Designed to detect the presence of condensate in air conditioning and refrigeration systems.
• Features a magnetically actuated normally closed switch.
• Includes wire connector and clamping screws.

Product Highlights

The Condensate Cop is easy to install and maintain, preventing overflow and system damage.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: CC-1
• Country of Origin: United States

Technical Specifications

• Item Model Number: CC-1
• MPN: CC-1
• Brand: DIVERSITECH
• Connector Type: Clamp
• International Protection Rating: IP54
• Unit Count: 1.0 Count
• Amperage: 1.5 A
• Application: For Use With: 24 V Control Circuits
• Material: Metal/Plastic
• For Use With: Drain Pan
• Includes: Wire Connector and Clamping Screws
• Agency Compliance: UL
• Item Number: CC-1
• Manufacturer: DiversiTech
• Product Item: CC-1
• Product Type: CC1 Condensate Cop Drain Pan Switch
• Unit Depth (in.): 6.5 in.
• Unit Width (in.): 3.5 in.
• Unit Height (in.): 2.25 in.
• Brand Name: Diversitech
• Series: Condensate Cop™ Series
• Suitable For Use With: 24 V Control Circuits
• Amps: 1.5 A
• Mounts: Drain Pan
• Voltage: 24VAC
• Compliance: UL 508
• Wire Gauge: 18 AWG
• Body Material: ABS
• Float Switch Type: Solid State
• Float Switch On Point: 1" Above Base
• Float Switch Off Point: 1" Below Base
• Float Switch Cord Length: 5 ft.
• Float Switch Contact Form: Normally Closed
• Float Switch Float Material: ABS
• Electrical Connection (Pumps): Wire Leads
• Electrical Connection - Pumps: Wire Leads
• Item: Drain Pan Switch, NC Reed
• Mounting Type: Horizontal/Vertical Mount
• Used On Item: HVAC
• Description: DIV CC-1 CONDENSATE COP DRAIN PAN SWITCH
• Type: Accessory
• Switch Action: NC
