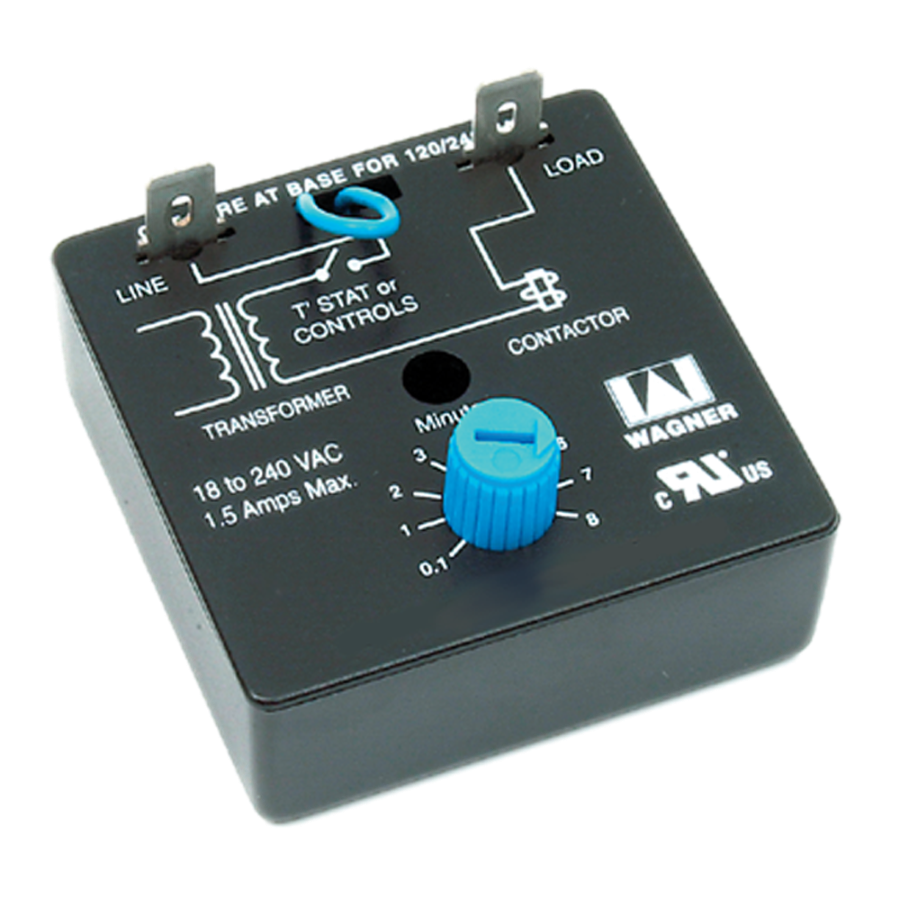

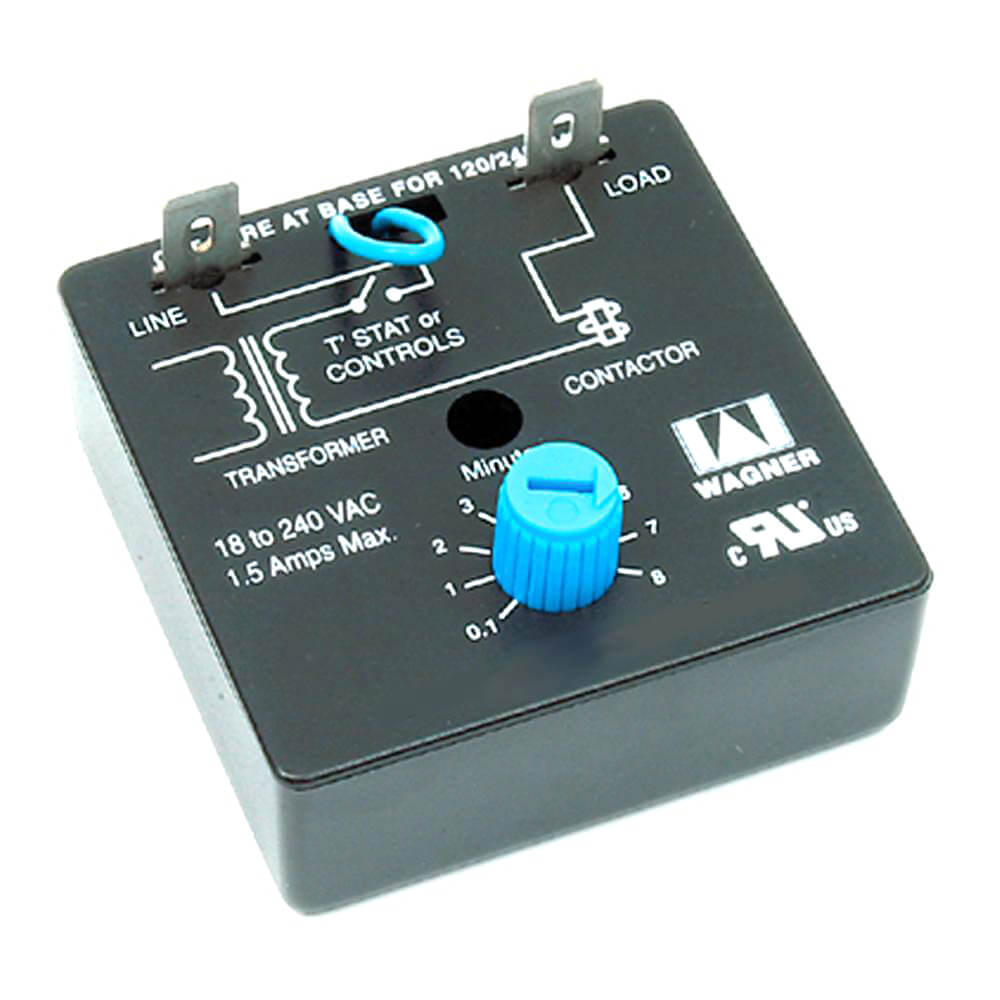

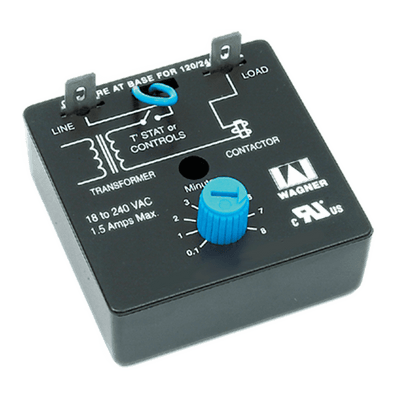

Diversitech ADM-1 Adjustable Delay on Make Timer (6 Sec to 8 Min)

Product Description

The Diversitech ADM-1 is an adjustable delay on make timer designed for HVAC systems. It offers a customizable time delay from six seconds to eight minutes. This timer is essential for managing the start-up of multiple units in electrical networks efficiently.

• Adjustable delay from six seconds to eight minutes.
• Compatible with 24, 120, or 240 VAC control circuits.
• Easy two-wire hookup for quick installation.

Product Highlights

The ADM-1 timer provides flexibility and is built for reliable performance in various conditions. Its compact design allows it to fit in tight spaces while ensuring durable operation.

Product Information

Standard Information

• Brand: Diversitech
• Part Number: ADM-1
• Series: Spring Stocking

Technical Specifications

• Type: Timer
• Adjustable Time Delay: Six seconds to eight minutes
• Voltage Range: 24VAC/DC to 240VAC/DC
• Contact Rating: Ten Amps at 120VAC
• Mounting Style: DIN Rail
• Operating Temperature: -20 degrees Celsius to 65 degrees Celsius
