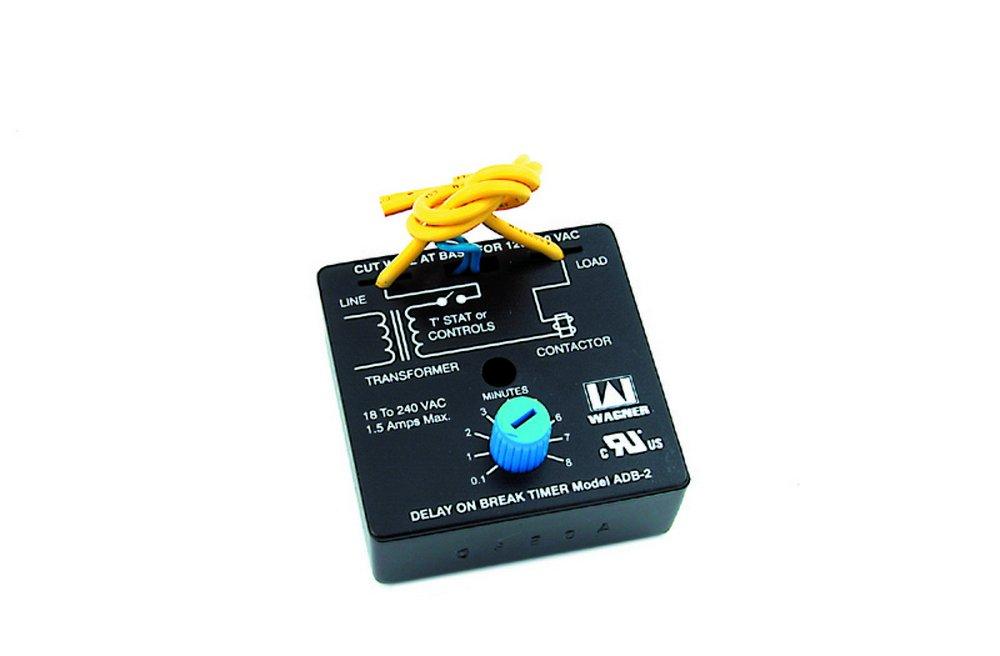

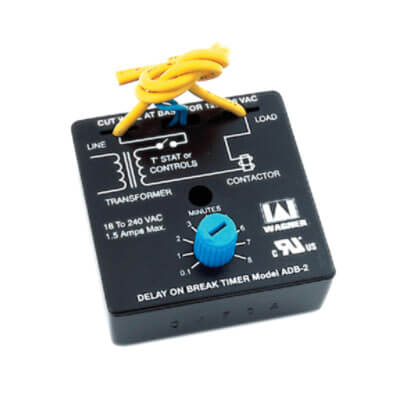

DiversiTech ADB-2 5-1/4 in. 1.5A Adjustable Time Delay On Break with Leads

Product Description

The DiversiTech ADB-2 is a time delay switch designed for precise control in electrical circuits. This adjustable delay-on-break switch works with 24, 120, or 240 VAC control circuits and supports a load of up to 1.5 Amps. The delay can be set from six seconds to eight minutes, making it suitable for a variety of applications. It features a spin-proof knob for easy adjustments and a compact design that can be mounted with one self-tapping screw.

• Works with anticipator type thermostats
• Solid state design with quick disconnect terminals
• Conformal coated circuitry for moisture and shock protection

Product Highlights

This switch is ideal for HVAC systems and industrial settings where reliable time delays are essential. It is recognized by UR for safety in the USA and Canada.

Product Information

Standard Information

• Brand: DiversiTech
• MPN: ADB-2

Technical Specifications

• Delay Time Range: Six seconds to eight minutes
• Voltage Rating: 120/240 VAC
• Amperage Rating: 1.5 Amps
• Enclosure Type: NEMA 1
• Operating Temperature: -40°F to 158°F
