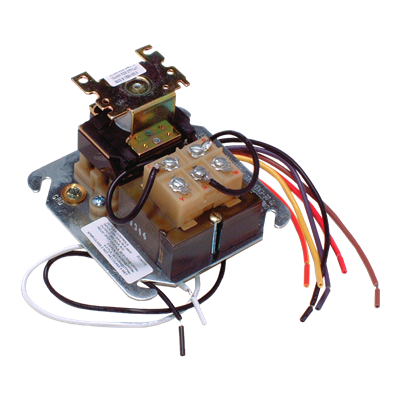

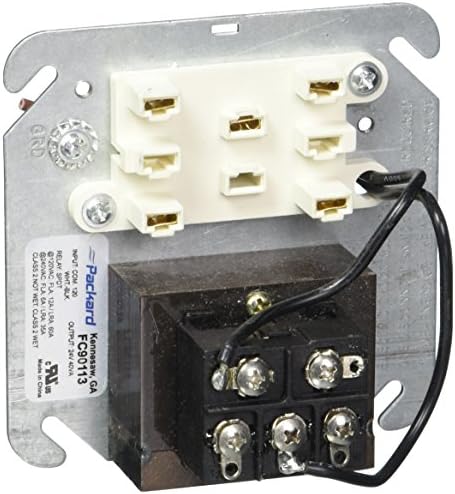

Diversitech 90113 fan center 120 VAC

Product Description

The Diversitech 90113 Fan Center provides low voltage control for one and two speed fan motors, suitable for auxiliary circuits in heating, cooling, or heating/cooling applications. It features a DPDT Relay and is UL rated for safety. Designed with color-coded pre-stripped leads and power and duty-rated contacts, this fan center operates with a 24V coil voltage and a primary voltage of 120 VAC. It mounts directly to a 4-inch electrical box, making it ideal for HVAC system integration.

• Offers low voltage for one and two speed fan motors.
• Features a DPDT Relay and is UL rated.
• Mounts directly to a 4in. electrical box.

Product Highlights

Low voltage fan motor control with DPDT relay, UL rated, and 120 VAC primary voltage.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 90113
• Country of Origin: USA

Technical Specifications

• Brand: Diversitech
• Part Number: D-90113
• UPC: 095247094165
• Suitable For: Fan Motor
• Primary Voltage: 120 VAC
• Coil Voltage: 24V
• Origin: Domestic
• Power Source: Corded Electric
• Mounting: Directly to 4in. electrical box
• Item Type: Fan Center, Transformer 120v
• Relay Type: DPDT
