Diversitech 82052 Packard Draft Inducer 1/50hp Replaces Ind # 433-00-510

Product Description

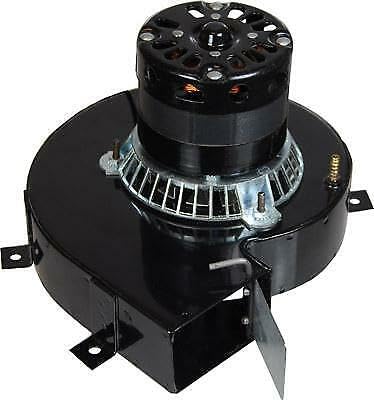

The DiversiTech 82052 is a draft inducer motor designed to replace part number 433-00-510. This single-phase, 60 Hz motor operates at 115 volts with a 1/50 HP rating, drawing 1.00 amps, and features automatic overload protection. It is a shaded pole motor with sleeve bearings, an open enclosure, and a 3.3 NEMA frame, suitable for various HVAC applications like air conditioners and furnaces.

• Direct replacement for part number 433-00-510.
• Features a shaded pole motor design with single-speed operation.
• Equipped with automatic overload protection and UL, CSA certifications.

Product Highlights

This draft inducer motor is designed for HVAC systems, offering reliable performance with its 115V, 1/50 HP, 1.00 amp, 3000 RPM operation and included mounting hardware.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 82052
• Country of Origin: TAIWAN

Technical Specifications

• Product Type: ELECTRONIC_COMPONENT_FAN
• Manufacturer: DiversiTech
• Number of Items: 1.0
• Ambient Temperature: 40°C
• Amperage: 1.00 Amps
• Bearings Type: Sleeve
• Component Brand: Packard
• Certifications: UL, CSA
• Enclosure Type: Open
• Horsepower: 1/50 HP
• Frequency: 60 Hz
• Included Accessories: Mounting Hardware Included
• Insulation Class: B
• Material: Metal
• Motor Type: Shaded Pole
• Mounting Type: Mounting Holes
• NEMA Frame: 3.3
• Overload Protection: Automatic
• Phase: Single
• RPM: 3000
• Number of Speeds: 1
• Voltage: 115 Volts
• Cooling Method: forced air
• Compatible Devices: Air Conditioner, Furnace
• Model Number: 82052
• Part Number: 82052
