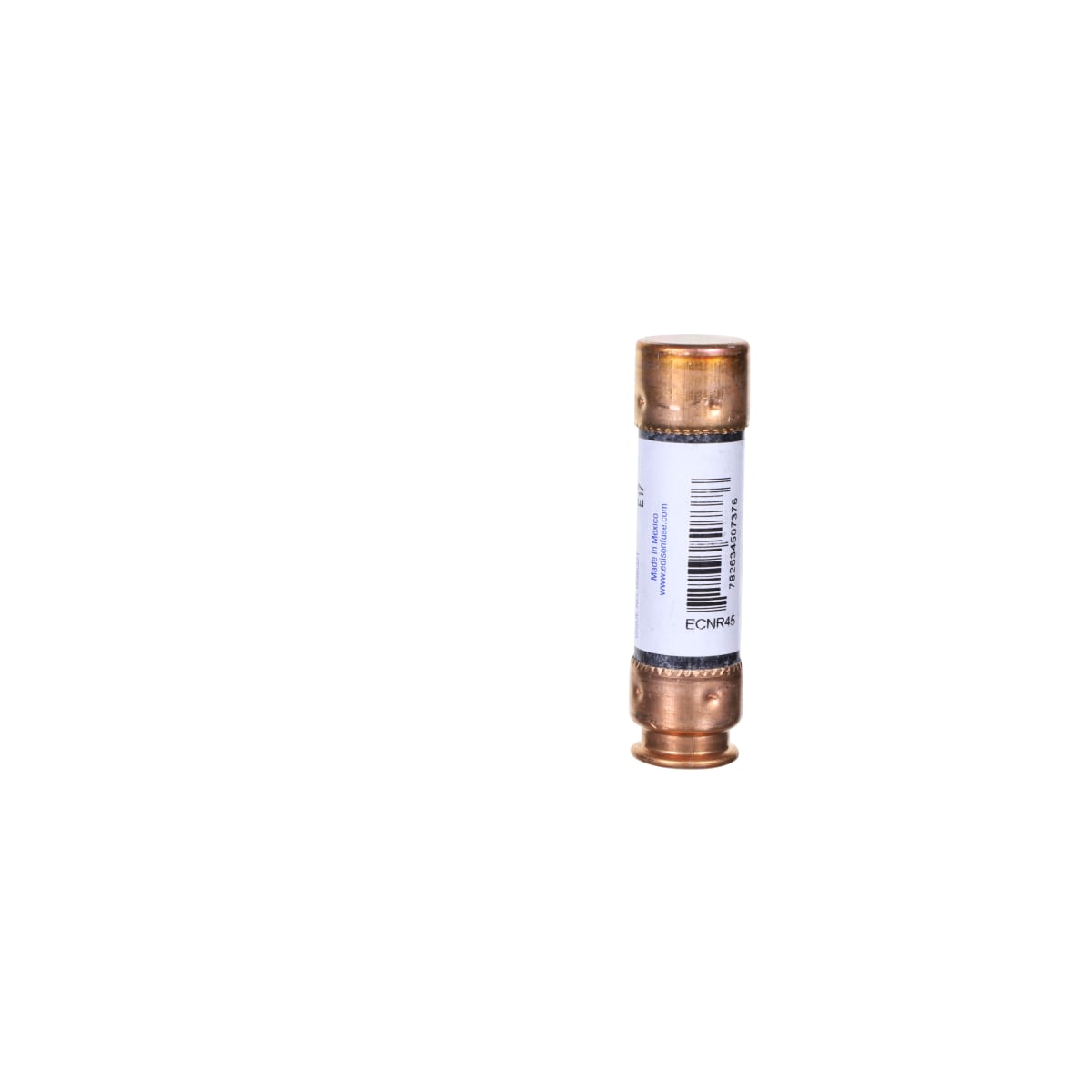

Diversitech 7-CRNR45 Time Delay, 45 Amp 250V Dual Element Fuse

Product Description

The DIVERSITECH 7-CRNR45 is a time delay fuse with a 45 amp rating and 250V capacity, featuring a dual element design. It provides time delay for temporary over current conditions and motor running protection for heating and air conditioning equipment. This fuse eliminates unnecessary maintenance from harmless overloads. It has an interrupting rating of 200,000 Amps rms. A.C.

• Dual element fuse
• Time delay functionality reduces unnecessary maintenance by preventing nuisance tripping.
• High interrupting capacity safeguards HVAC systems against high fault currents.

Product Highlights

The DIVERSITECH 7-CRNR45 fuse provides reliable protection for HVAC systems, preventing downtime and ensuring efficient operation.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 7-CRNR45
• Country of Origin: US

Technical Specifications

• Type: Time Delay
• Voltage: 250 V
• Amperage: 45 A
• Brand: DIVERSITECH
• Class: Class RK-5
• Element: Dual
• Interrupt Rating: 200kA RMS AC
• Item Name: Cartridge Fuse
• Standards: UL Listed
• Package_Quantity: 10
• Amperage Rating: 45A
• Voltage Rating: 250VAC
• Connection: Ferrule
• Pressure Class: RK5
• Time Delay: 10 sec. (At 500 Percent Rated Load)
• Application: For Motor Circuits, Branch Circuits, General-Purpose Protection
• Manufacturer: DiversiTech Corporation
• Sub Type: Dual Element Fuse
• Size: 13/16 inch dia. x 3 inch L
• Certifications: UL 198E
• Country of Origin: US
• Product Type: Fuse
• Primary Depth (inches): 3
• Primary Width (inches): 0.75
• Primary Height (inches): 0.75
