Diversitech 66505 Packard motor 1/10 hp 115/208-230v shaft 5/16 x 3-1/4

Product Description

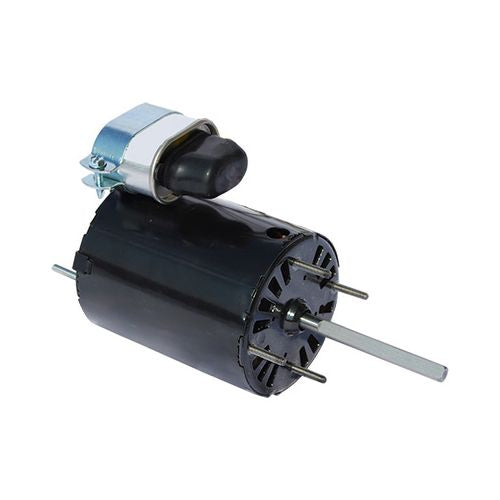

The DIVERSITECH 66505 Packard Motor is a 1/10 HP PSC motor designed for 115/208-230V operation. This stud-mounted motor features reversible rotation and operates at 3000 RPM, making it suitable for various general-purpose and HVAC applications requiring a compact and efficient power source. Its ball bearing construction ensures smooth performance.

• Operates efficiently with 0.8-1.4 Amps across 115/208-230V input.
• Features a durable 5/16 x 3-1/4 inch shaft for secure connections.
• Designed with ball bearings for enhanced durability and reduced friction.

Product Highlights

This 1/10 HP PSC motor offers reversible rotation and stud mounting for versatile application in ducted systems.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 66505

Technical Specifications

• Input Voltage: 115-208-230V
• Horsepower: 1/10 HP
• Current: 0.8-1.4 Amps
• Bearing Type: Ball
• Motor Type: PSC
• Mounting Type: Stud
• Rotation: Reversible
• RPM: 3000
• Shaft Dimensions: 5/16 x 3-1/4 inches
• Application Type: Ducted
