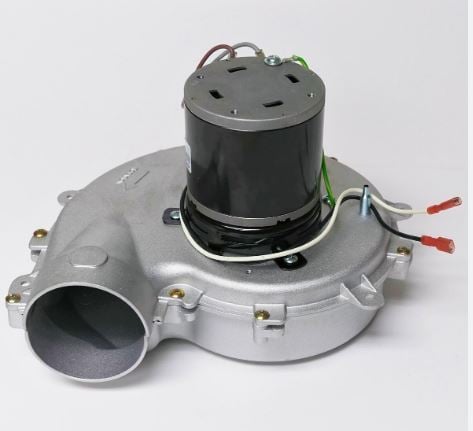

Diversitech 66254 Inducer Motor 1/50 Hp 230V

Product Description

The DIVERSITECH 66254 is a draft inducer motor rated at 1/50 horsepower and 230 volts, designed to move combustion gases through a heat exchanger and out the flue in gas-fired heating equipment. The inducer motor runs during the pre-purge, heating, and post-purge cycles, ensuring proper venting and safe burner operation. Licensed HVAC technicians typically handle replacement of this component as part of a furnace or boiler service call. Its compact design fits the tight clearances common in residential and light-commercial heating units.

This inducer motor is suited for gas furnace and boiler applications where a 230-volt draft inducer is required. It is a common replacement part when the existing inducer motor fails to start, runs noisily, or draws excessive current, causing pressure switch or control board fault codes. Technicians should verify motor shaft direction, mounting configuration, and flue outlet orientation before installation to confirm fitment with the target unit.

Key Features

• Rated at 1/50 HP for inducer and draft applications in gas heating equipment
• 230-volt operating voltage suitable for line-voltage inducer circuits
• Designed as a direct replacement to restore proper venting and combustion airflow
• Compact form factor for installation in space-constrained furnace and boiler cabinets

Compatibility

Designed as an OEM-style replacement inducer motor for residential and light-commercial gas furnaces and boilers requiring a 230-volt, 1/50 HP draft inducer motor.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the equipment manufacturer's service documentation. Disconnect all electrical power and shut off the gas supply to the unit before removing the existing motor. Confirm shaft rotation direction and mounting orientation match the original motor before securing and reconnecting wiring. After installation, verify inducer operation and confirm pressure switch closure before returning the system to service.

Technical Specifications

• Voltage: 230 volts
• Horsepower: 1/50 HP

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 66254
