Diversitech 6510VUI VS - ECM Variable Speed Replacement Motor, Includes User Interface 5K010V, 1 HP, 1050 RPM

Product Description

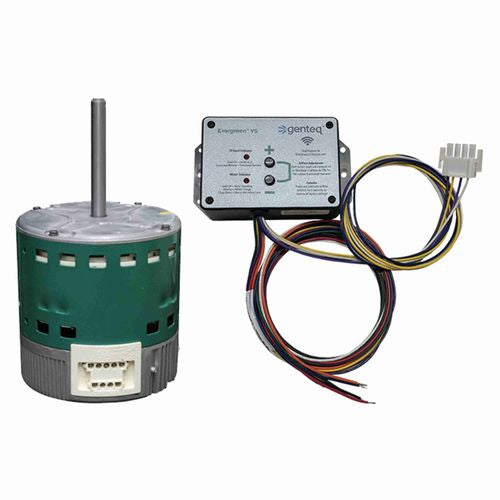

The DIVERSITECH 6510VUI is an ECM variable speed replacement motor that includes user interface 5K010V. This motor is rated at 1 HP, operates at 60 Hz, and supports 120/240 V. It features a speed of 1050 RPM and is designed with a 48 frame OPAO enclosure. It is suitable for ducted applications.

• Includes User Interface 5K010V
• Electronically Protected
• 36" Leads

Product Highlights

ECM variable speed replacement motor with user interface, electronically protected with 36" leads.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 6510VUI

Technical Specifications

• Volts: 120_240
• Product Length: 12.71 in.
• Rated Horsepower (HP): 1
• Amps: 12.8_7.4
• Bearing: Ball
• Body Diameter ( in.): 5.6
• Enclosure: Open Air Over
• Insulation Class: B
• Motor Type: ECM
• Mounting: Round
• Rotation: REVERSIBLE
• RPM: 1050
• Speeds: 1
• Temp. Rating: 40° C
• Shaft ( in.): 1/2 in. x 5 in.
• Ducted or Ductless: Ducted
• Frame: 48
