Diversitech 6236LX Devco Insulated Ring Terminal 22 to 18 AWG #8 Stud

Product Description

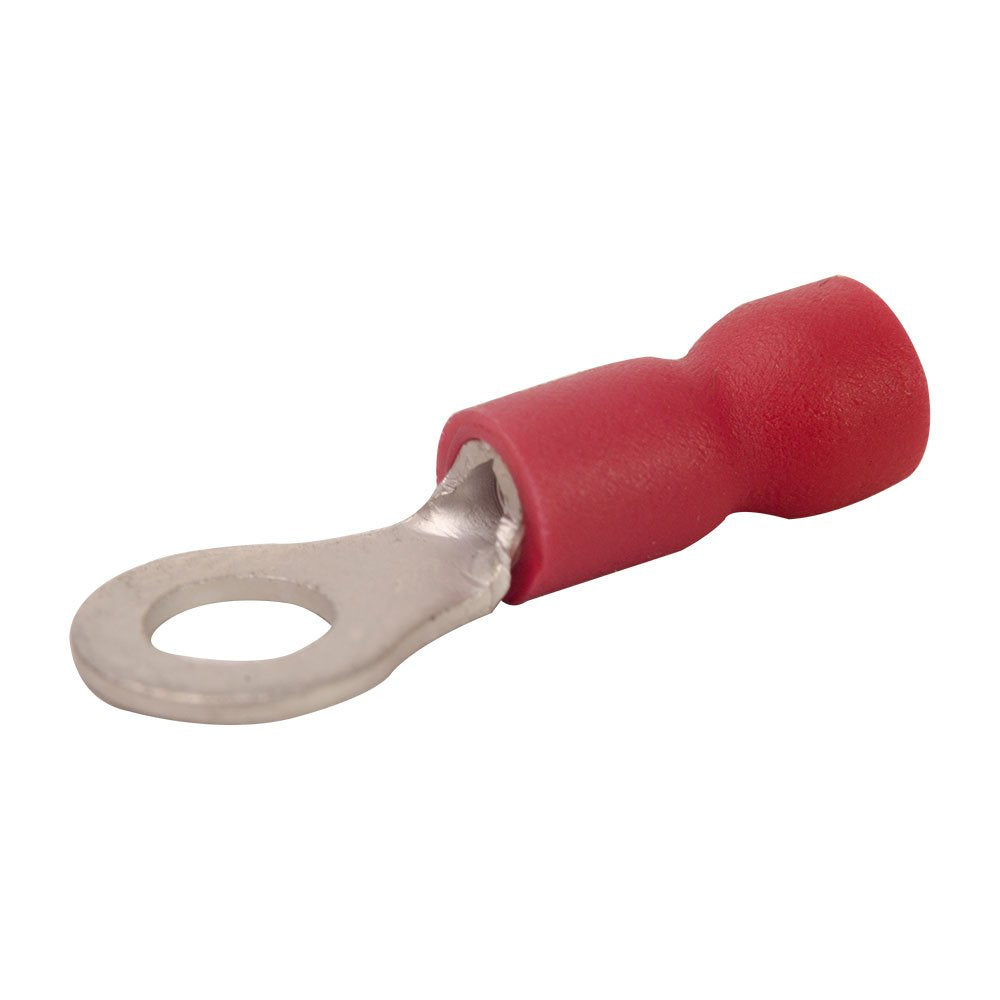

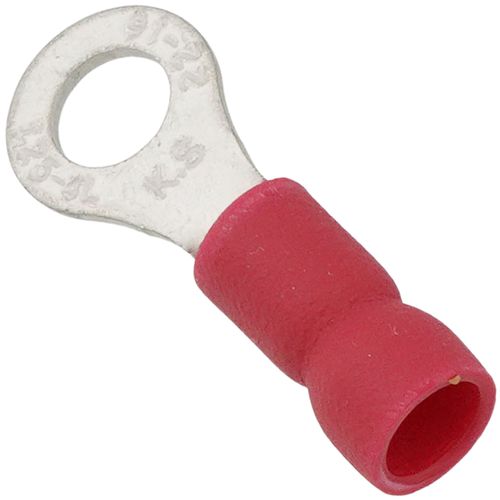

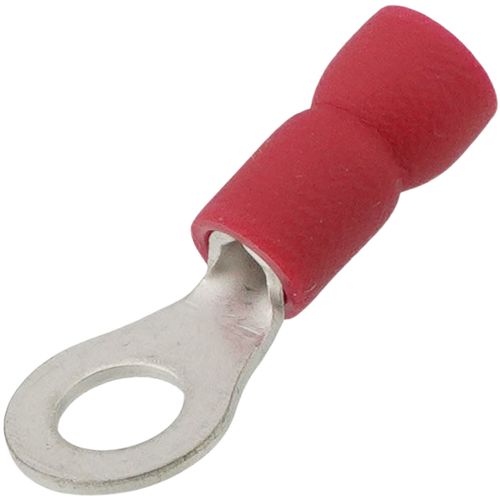

The Diversitech 6236LX Devco Ring Terminal is an insulated terminal designed for 22 to 18 AWG conductors. Constructed from high-strength copper alloy and electro-tin plated for corrosion resistance. Wire range is stamped on the surface for easy identification. These insulated terminals crimp to the wires which relieves the need to solder.

• Manufactured from high strength copper alloy
• Electro-tin plated for corrosion resistance
• Easy entry expanded insulation eliminates strand "hang up", increasing crimping rates and provides mechanical strain relief
• Extended serrated barrel provides excellent electrical contact and resistance to pull-out forces

Product Highlights

The Diversitech ring terminal provides excellent electrical contact and resistance to pull-out forces. Terminal barrel has brazed seam for additional strength.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 6236LX
• Country of Origin: US

Technical Specifications

• Type: Insulated
• Finish: Electro-TiN Coated
• Material: Copper Alloy
• Stud Size: #8
• Conductor Size: 22 to 18 AWG
• Manufacturer Name: DiversiTech
• MPN: 6236LX
• Brand: DIVERSITECH
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 18 AWG
• Insulation Type: Insulated
• Product Type: ELECTRONIC_COMPONENT_TERMINAL
• Manufacturer: Diversitech
• Connector Type: Ring
• Terminal: Ring Terminal
• Temperature Rating: 221 degree fahrenheit
• AWG: 22-18
• Bolt Hole Size: #8
• Item: RING 22-18 INS. #8 STUD
• OEM: DiversiTech
• OEM #: 6236LX
