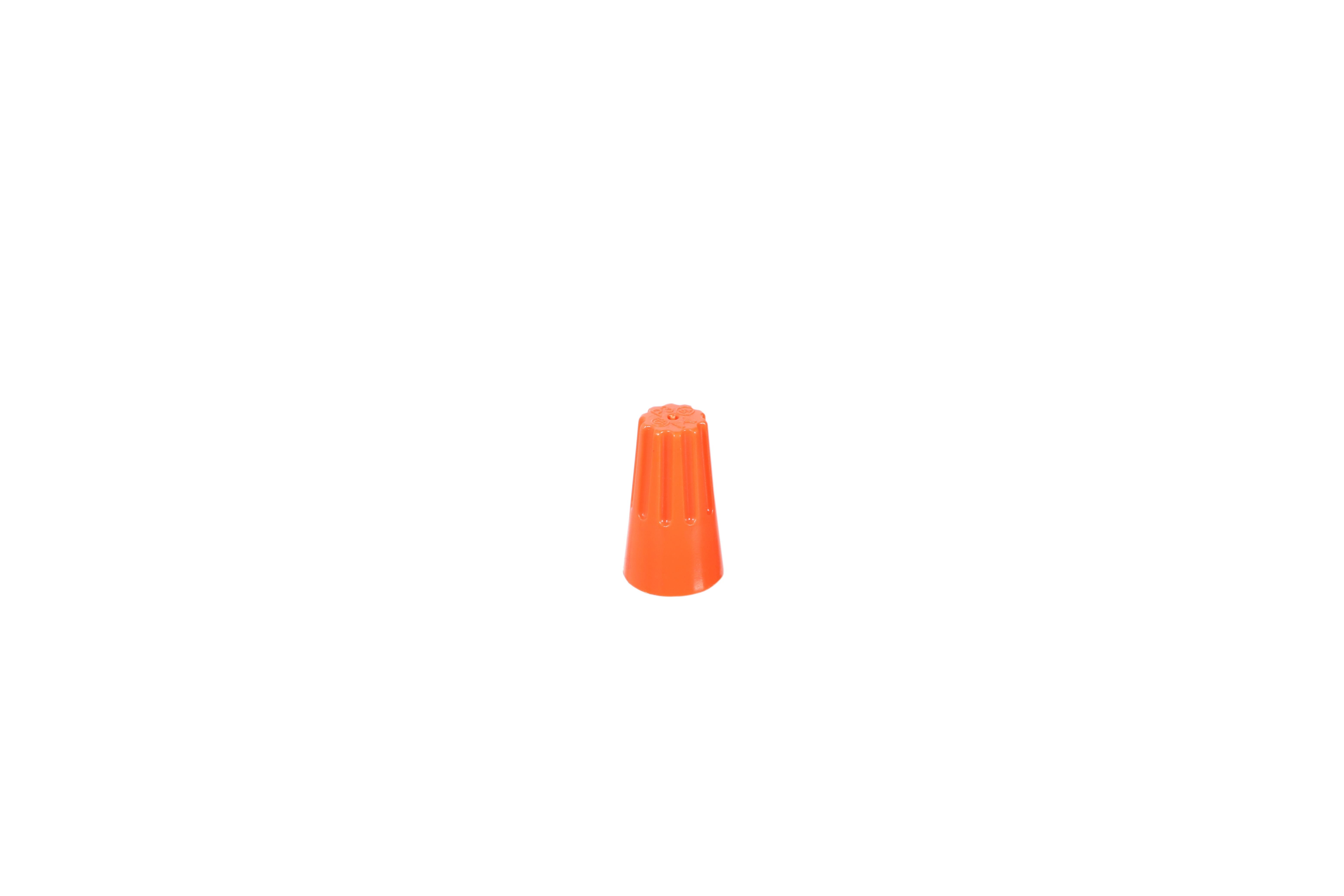

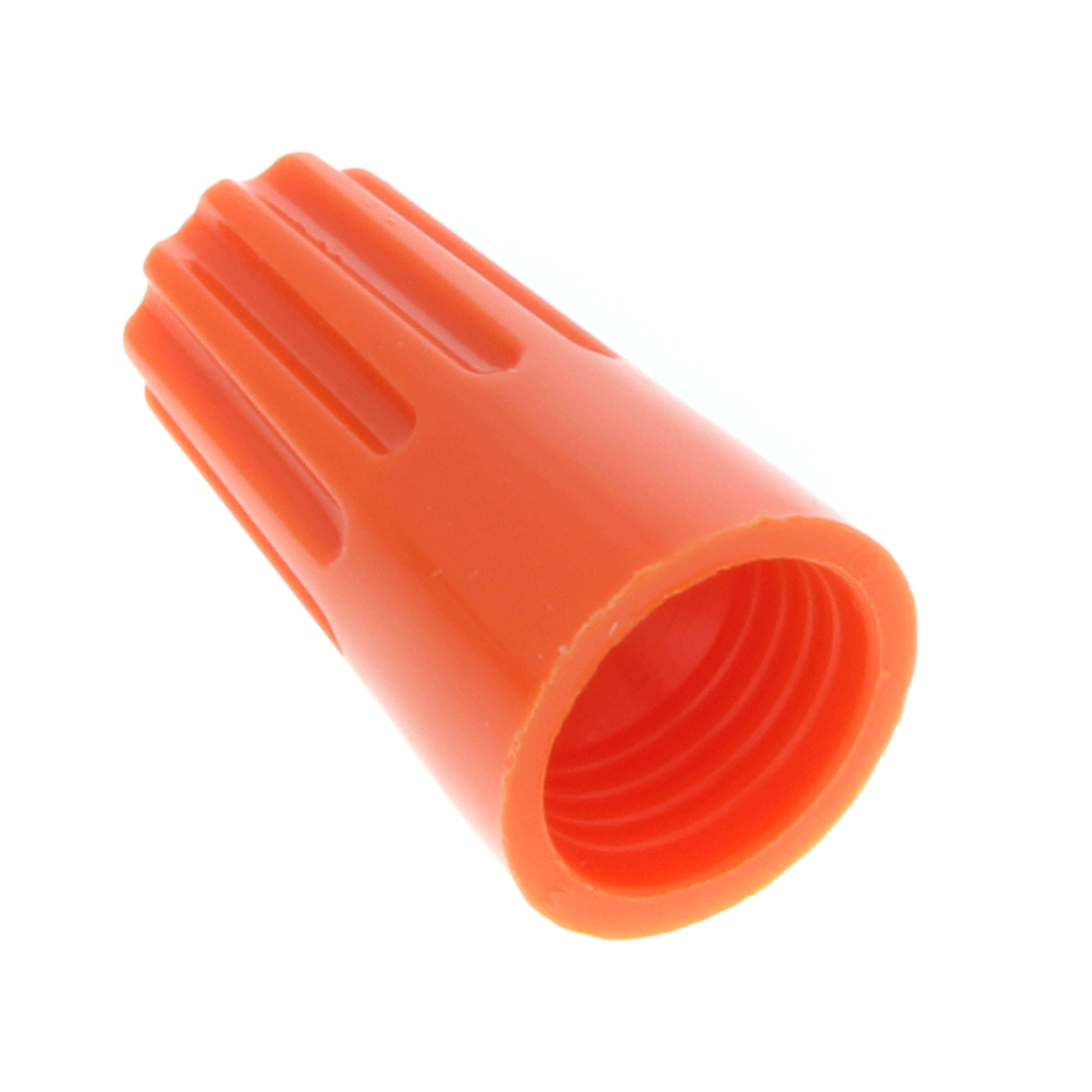

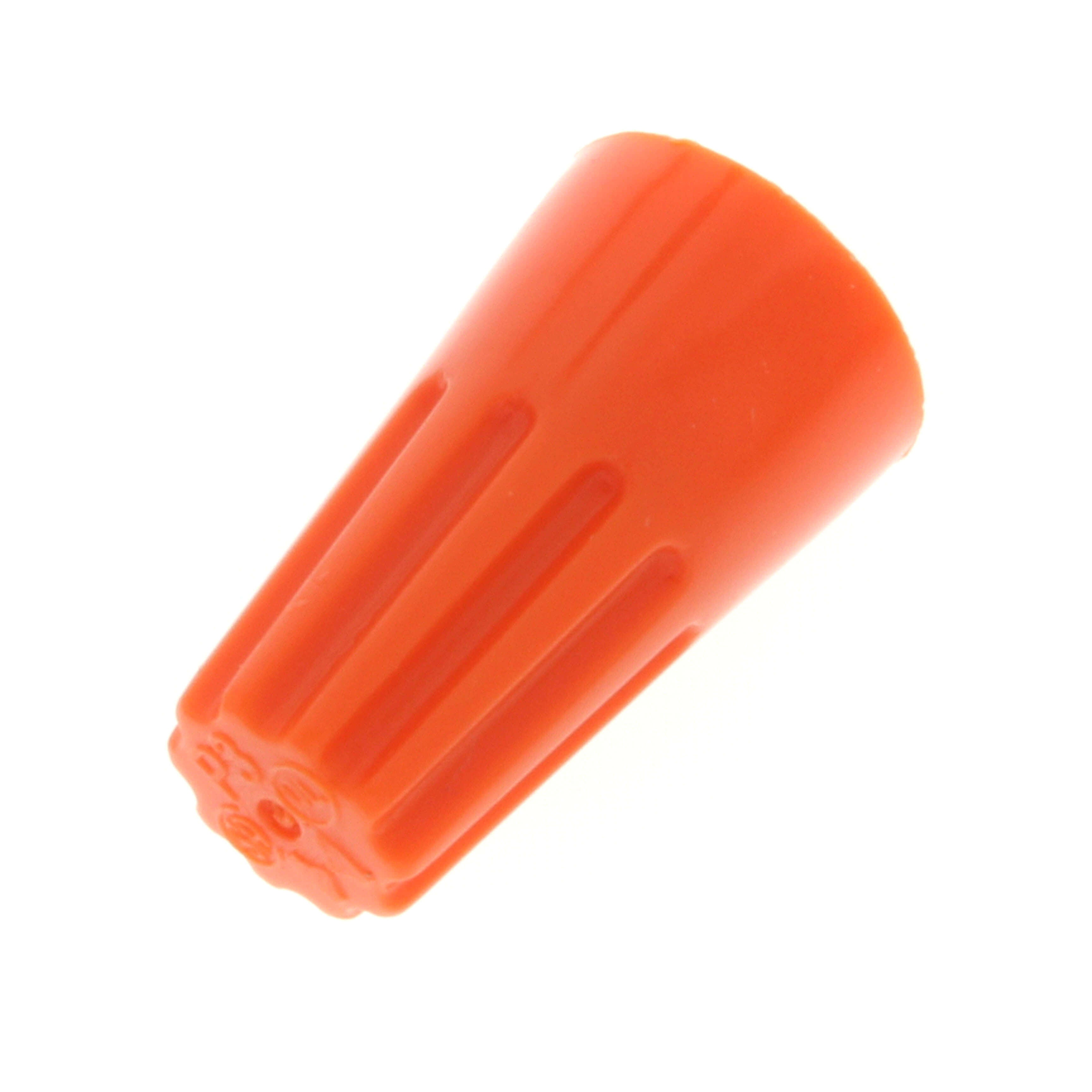

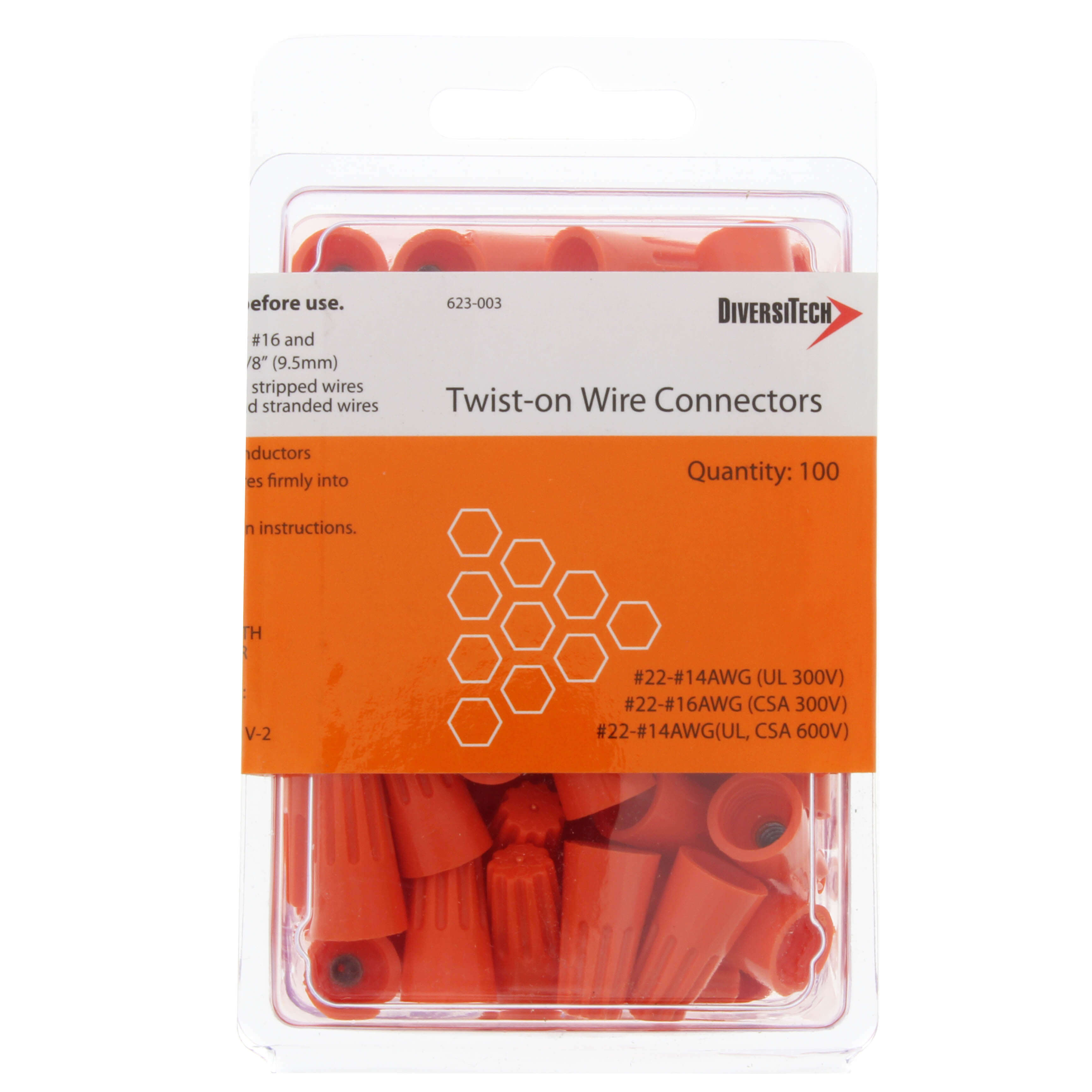

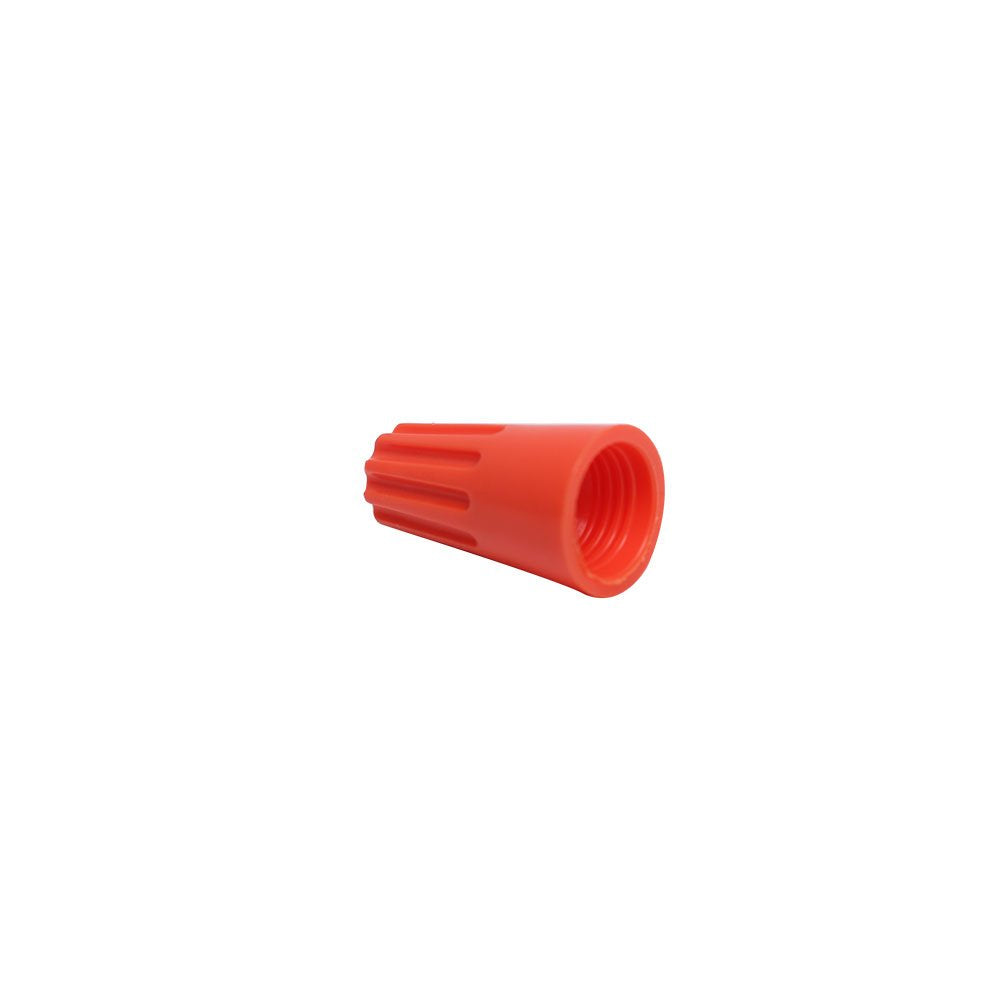

Diversitech 623-003 wire connector 22 to 14 awg (100 pack)

Product Description

The Diversitech 623-003 wire connectors make quick, secure connections for positive continuity. The high-dielectric thermoplastic shell resists chemical action from hydrocarbons, dilute acid, or alkaline solutions. Designed with a deep skirt to prevent exposure of bare wire. Suitable for 22 to 14 AWG wire and up to 600V.

• Suitable for 22 to 14 AWG wire
• Rated up to 600V
• Thermoplastic shell resists chemical action

Product Highlights

The Diversitech 623-003 wire connectors ensure secure electrical connections with a durable, chemical-resistant design.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 623-003
• Country of Origin: CN

Technical Specifications

• Item Model Number: 623-003
• Material: Thermoplastic
• Wire Size: 22 to 14 AWG
• Shell Style: Positive Grip, Screw-On
• Voltage Rating: 600 VAC
• Manufacturer Name: DiversiTech
• Brand: Diversitech
• Product Type: Electrical Service
• Temperature Rating: 221 deg F
• Certifications: CSA Certified|UL Listed
• Unit Depth (in.): 5 in.
• Unit Width (in.): 3.25 in.
• Unit Height (in.): 2 in.
• Max Volts (V): 600
• Temp. Rating: 105° C
• Connection Type: Male Quick-Connect
• Standards: UL Listed, CSA Certified
• Conductor Range: 22 - 14AWG
