Diversitech 6215 Non-insulated Rings

Product Description

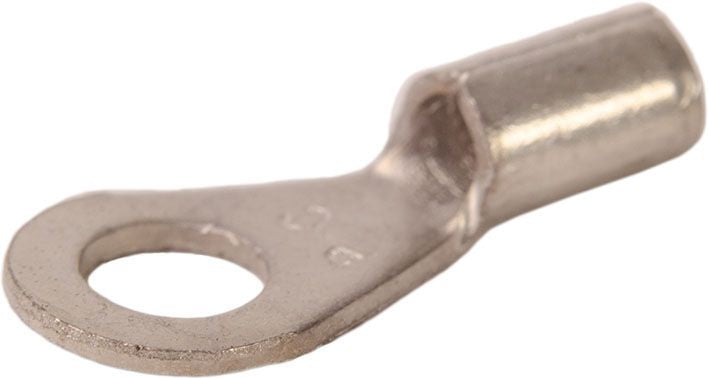

The DIVERSITECH 6215 is a set of non-insulated rings used as electrical termination components in HVAC, refrigeration, and related mechanical systems. Non-insulated ring terminals provide a secure, low-resistance connection between wire conductors and screw or stud terminals. These rings are a standard consumable in electrical wiring harness assemblies and field-wiring tasks performed by HVAC technicians, electricians, and refrigeration service professionals. The 6215 weighs 0.2 pounds, making it a compact, lightweight addition to any technician's parts inventory.

Non-insulated ring terminals like the 6215 are commonly used in low-voltage and line-voltage control wiring within residential and light commercial HVAC equipment. Typical applications include terminating thermostat wiring, grounding conductors, and securing control circuit leads to equipment terminal boards. These rings are installed during new equipment commissioning, field repairs, and control board replacement work where clean, reliable wire terminations are required.

Key Features

• Non-insulated design allows visual inspection of the crimped conductor after termination
• Ring-style terminal provides a secure, captive connection to screw or stud fasteners
• Lightweight construction at 0.2 pounds per package
• Suitable for use in HVAC, refrigeration, and general electrical wiring applications
• Standard consumable compatible with common crimping tools used in the field

Compatibility

Designed as a general-purpose non-insulated ring terminal for use in HVAC, refrigeration, and light electrical wiring applications where a non-insulated ring termination is specified.

Installation Notes

Ring terminals should be installed by a qualified HVAC technician or electrician in accordance with NEC requirements for the circuit type and conductor gauge. Always de-energize and lock out the equipment before terminating or re-terminating any wiring. Use a calibrated ratcheting crimping tool sized to the ring terminal and wire gauge to ensure a proper mechanical and electrical connection. Do not re-crimp a terminal that has already been crimped onto a conductor.

Technical Specifications

• Weight: 0.2 pounds
• UPC: 78065301489

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 6215
