Diversitech 620-700 Duplex Receptacle 15A 125V Nema 5-15R

Product Description

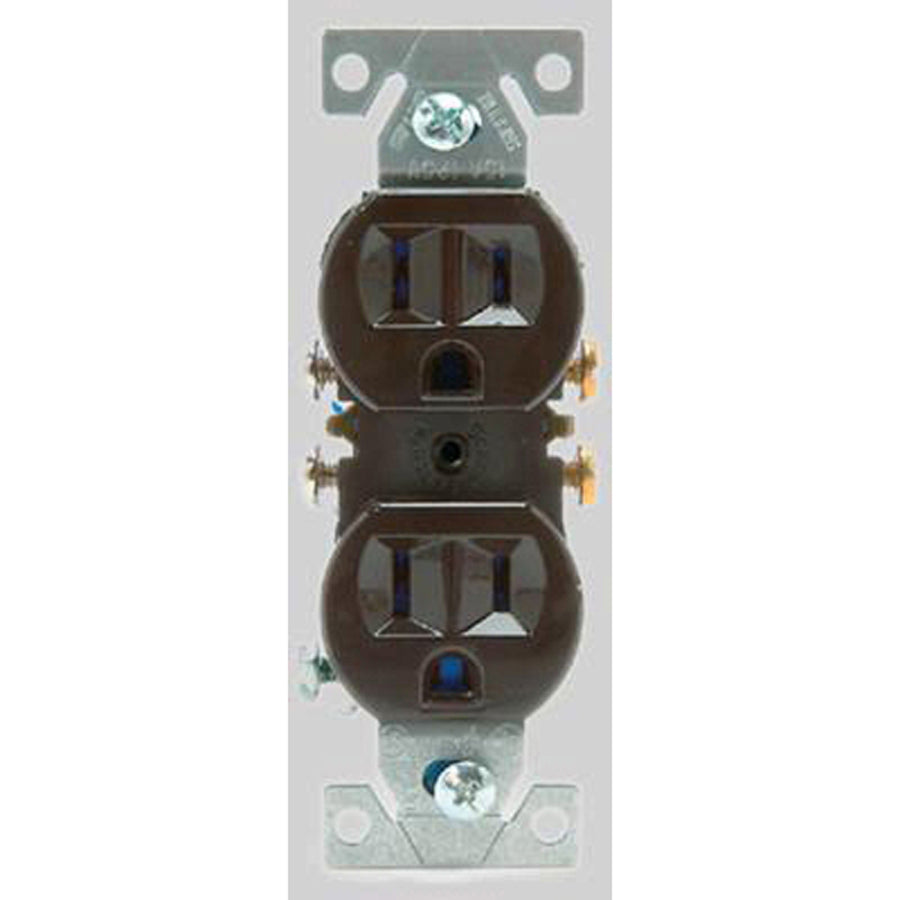

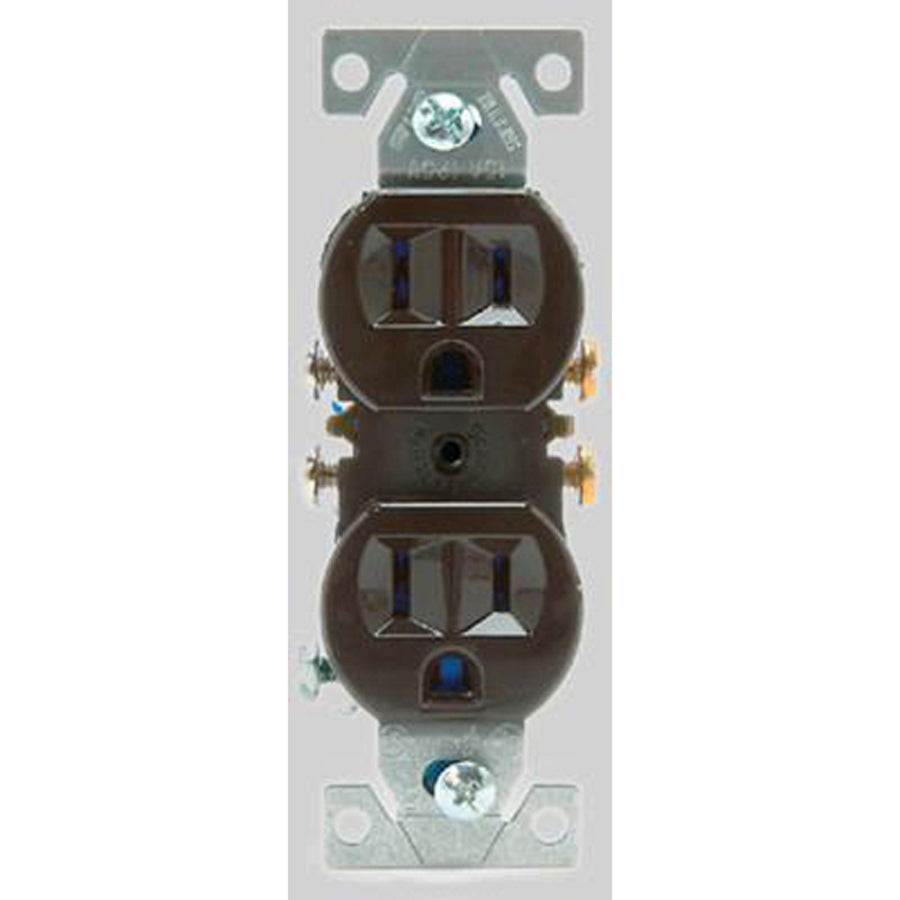

The DIVERSITECH 620-700 is a 15-amp, 125-volt duplex receptacle rated NEMA 5-15R and built for residential and light commercial electrical installations. Constructed from copper alloy contact material, it delivers reliable conductivity and long service life in standard wall outlet applications. The side-wiring configuration accepts conductors at the terminal screws on each side of the device body, and the large binding head terminal screw speeds up field termination. Automatic grounding contacts make installation faster by eliminating extra grounding steps during device assembly. Finished in brown, the receptacle is suited for matching period or specialty decor wiring schemes. UL and CSA listed.

The 620-700 is used in residential rough-in and finish electrical work, light commercial tenant improvements, and replacement outlet service calls. It fits standard single-gang and multi-gang electrical boxes where a NEMA 5-15R grounding duplex receptacle is specified. The brown color makes it a practical choice wherever brown cover plates are used for aesthetic consistency. Licensed electricians and maintenance electricians install this device as part of branch-circuit outlet runs on 15-amp circuits.

Key Features

• NEMA 5-15R configuration rated 15 amps at 125 volts
• Copper alloy contacts for reliable conductivity and durability
• Automatic grounding contacts for faster device installation
• Large binding head terminal screw for quick side-wiring termination
• Heavy-duty mounting strap for added mechanical strength in the box
• UL and CSA listed; manufactured in the USA

Compatibility

Designed as an OEM-style replacement or new-construction duplex receptacle for standard 15-amp, 125-volt branch circuits requiring a NEMA 5-15R grounding outlet.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the branch circuit at the panel and verify absence of voltage with a meter before making any wiring connections. Side-wiring connects conductors under the terminal screws; do not exceed the conductor gauge rating marked on the device. Secure the receptacle to the box using the provided mounting strap before installing the cover plate.

Technical Specifications

• Voltage Rating: 125 volts
• Current Rating: 15 amps
• NEMA Configuration: 5-15R
• Type: Duplex
• Wiring: Side
• Ground Type: Grounding
• Material: Copper Alloy
• Color: Brown
• Width: 4.3 inches
• Height: 3.7 inches
• Weight: 1.51 pounds
• Approvals: UL, CSA
• Country of Origin: USA

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 620-700
