Diversitech 620-6081 Plug Fuse Base 15 Amps

Product Description

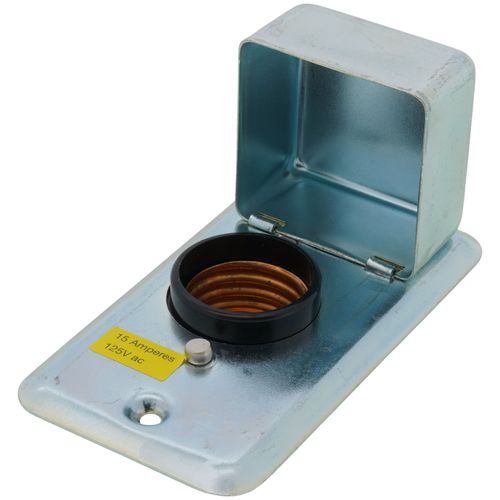

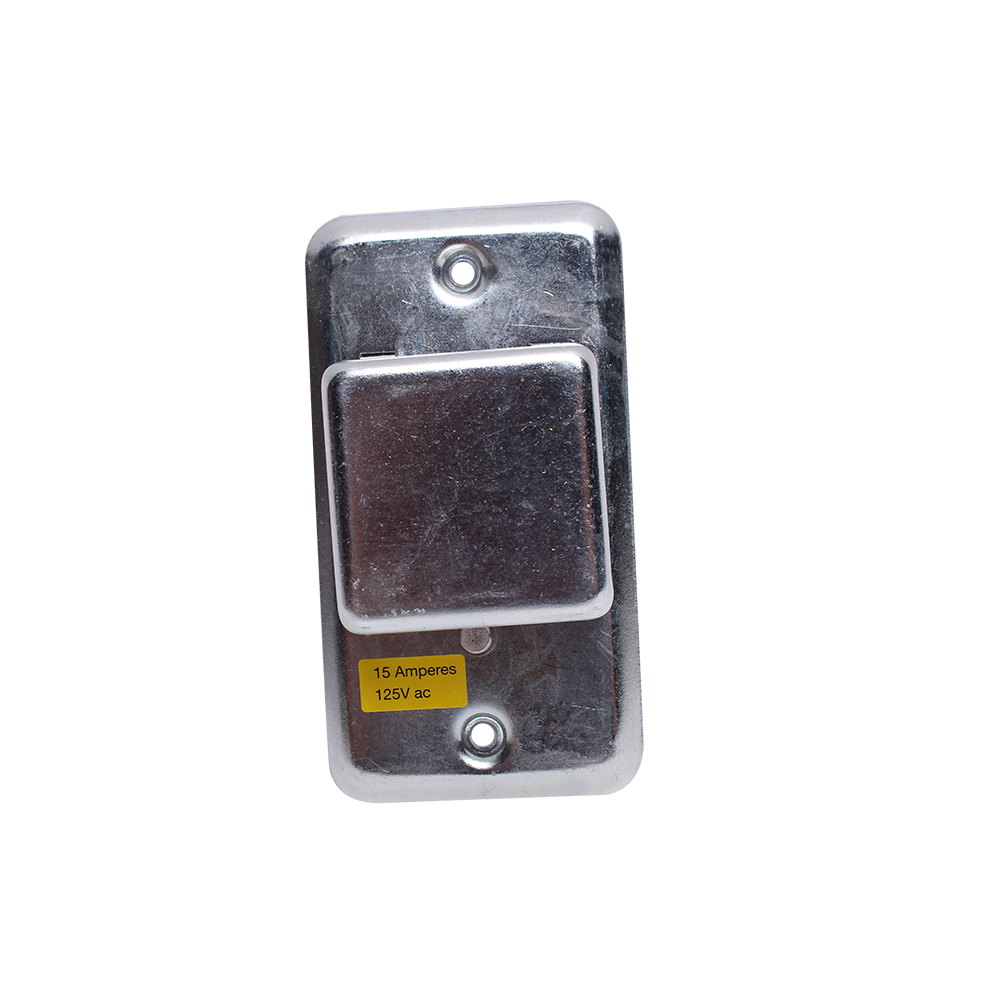

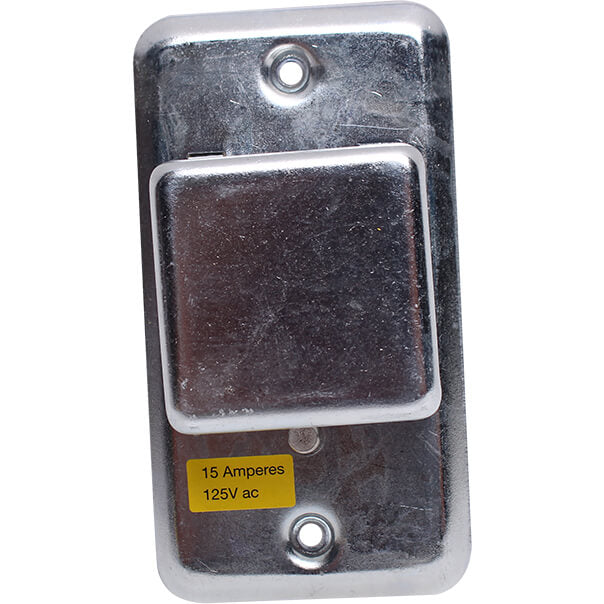

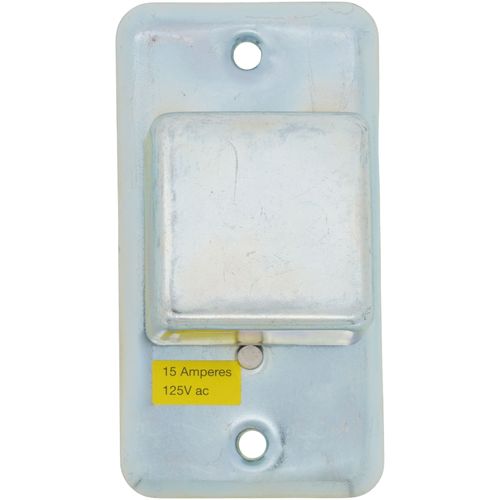

The DIVERSITECH 620-6081 is a plug fuse base designed to accept standard Edison-base plug fuses in residential and light commercial electrical panels and disconnects. This base-only component provides the socket housing into which a replaceable plug fuse is threaded, completing the overcurrent protection circuit. Rated for 15 amps, it is suited for branch circuit protection in ducted HVAC systems and general electrical distribution. Electricians and HVAC technicians install this type of component during panel service, disconnect box replacement, or when upgrading fuse block assemblies.

This plug fuse base is intended for use in ducted system applications where Edison-base plug fuse protection is required. It is a base-only unit, meaning no fuse element is included. Typical installation scenarios include service panel fuse blocks, HVAC disconnect boxes, and branch circuit protection assemblies in residential settings. The component is installed where an existing fuse base has failed or where a new fusible disconnect point is being established.

Key Features

• Base-only design accepts standard Edison-base plug fuses
• 15 amp rating for branch circuit overcurrent protection
• Suited for ducted HVAC disconnect and panel applications
• Replacement-ready form factor for failed or damaged fuse bases

Compatibility

Designed as an OEM-style replacement fuse base for ducted residential and light commercial electrical disconnect and panel assemblies that use standard Edison-base plug fuses.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements. Always shut off and lock out the main power supply before removing or replacing a fuse base. Do not install a fuse with a higher amperage rating than the circuit is designed to carry. Verify that the replacement base is fully seated and all connections are secure before restoring power.

Technical Specifications

• Amperage Rating: 15 amps
• Product Type: Plug Fuse Base
• Application: Ducted

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 620-6081
