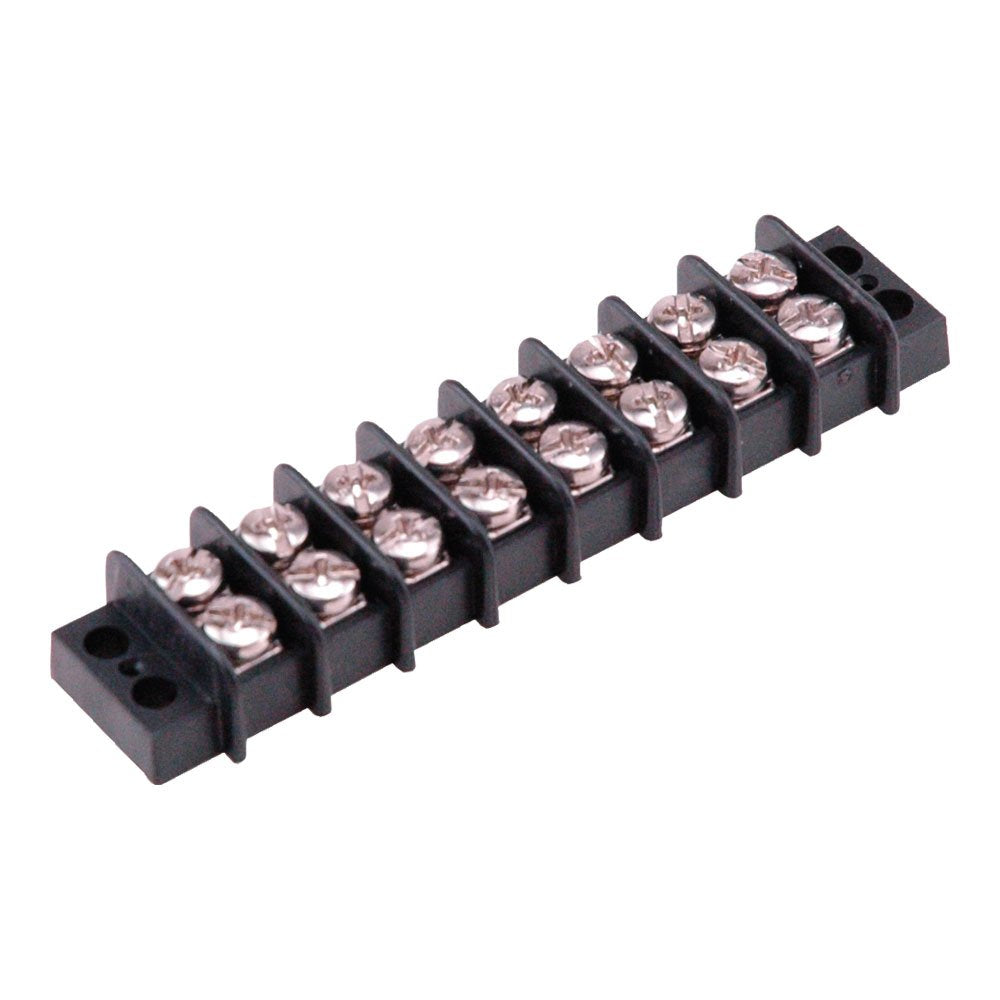

Diversitech 6184 Terminal Block 20A-25V (8 Position)

Product Description

The Diversitech 6184 is an 8-position terminal block rated 20 A and 25 V for secure wire termination in electrical distribution and control systems. It supports 22–14 AWG conductors with 6-32 screw terminals and uses a high-barrier thermoplastic body for electrical insulation. The compact unit measures 3.66 in by 0.88 in, enabling space-efficient installation for lighting circuits, motor starters, and industrial control panels.

• 8-position terminal block with 6-32 screw terminals for secure connections
• Electrical ratings: 20 A current, 25 V voltage; supports 22–14 AWG wire
• High-barrier thermoplastic body; dimensions 3.66 in (L) x 0.88 in (W)

Product Highlights

8-position terminal block; 20 A / 25 V rating; supports 22–14 AWG; 6-32 screws

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 6184
• Country of Origin: United States

Technical Specifications

• Brand: Diversitech
• Manufacturer: Diversitech
• Manufacturer Part Number: 6184
• Alternate Model: NCO-6184
• Product Type: Terminal block
• Number of Positions: 8
• Number Of Contacts: 8
• Current Rating: 20 A
• Voltage Rating: 25 V
• Wire Gauge Range: 22-14 AWG
• Screw Size: 6-32
• Body Material: High-barrier thermoplastic
• Length: 3.66 in
• Width: 0.88 in
• Country of Manufacture: United States
• UPC: 780653014523
• GTIN/EAN: 0780653014523
• ASIN: B008FM75I0
• Package Weight (g): 40.0
• Product Group: Home Improvement
