Diversitech 61059 Motor 9 Watt

Product Description

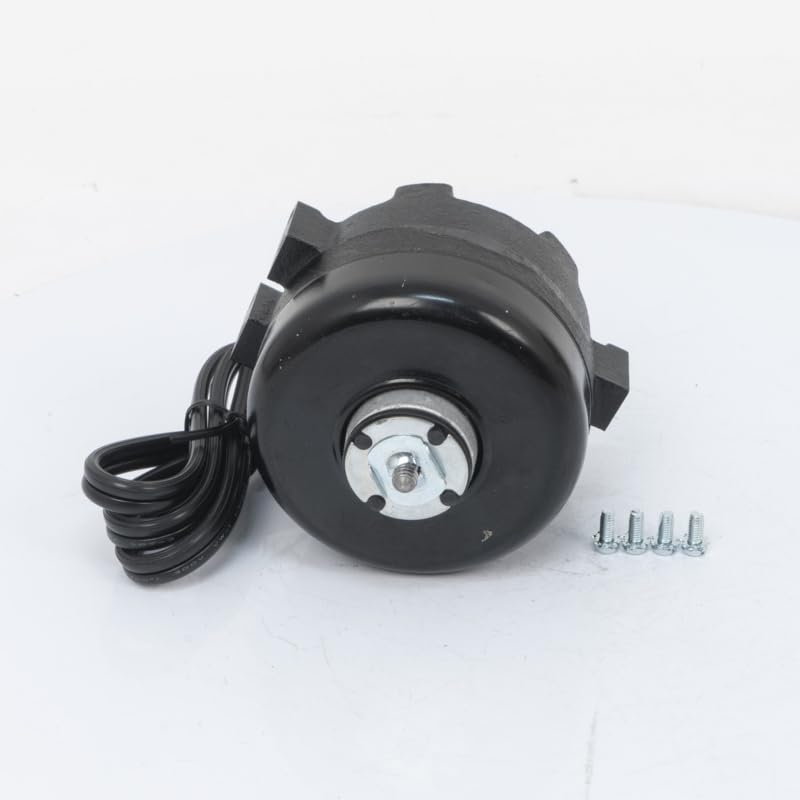

The DIVERSITECH 61059 is a 9 Watt, 230 Volt CCW cast iron motor featuring a double foot pad and three drilled and tapped holes in the rear. Rotation is determined by viewing the lead end. It is totally enclosed and includes mounting hardware. Operates at 60 Hz.

• Features a double foot pad with 3 drilled & tapped holes.
• Rotation is determined by viewing the lead end.
• Totally enclosed design.

Product Highlights

The DIVERSITECH 61059 motor is a 9W, 230V motor with a cast iron build, suitable for various applications requiring a durable and enclosed motor.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 61059
• Country of Origin: CHINA

Technical Specifications

• Motor Voltage: 230
• Amps: 0.27
• Brand: Diversitech
• Bearings: Unit Bearing
• Enclosure: TEAO
• H.P.: Less than 1/10
• Hertz: 60
• Insulation Class: B
• Length Less Shaft (In.): 2.5
• Material: Cast Iron
• Motor Rotation: CCWLE
• Motor Type: Shaded Pole
• Mounting Option: Double Foot Pads
• Overload Protection: Automatic
• Phase: Single
• RPM: 1550
• Shaft Dimensions (In.) Dia x Lgth: 0.25 x 0.5
• Voltage: 230
• Watts: 9
