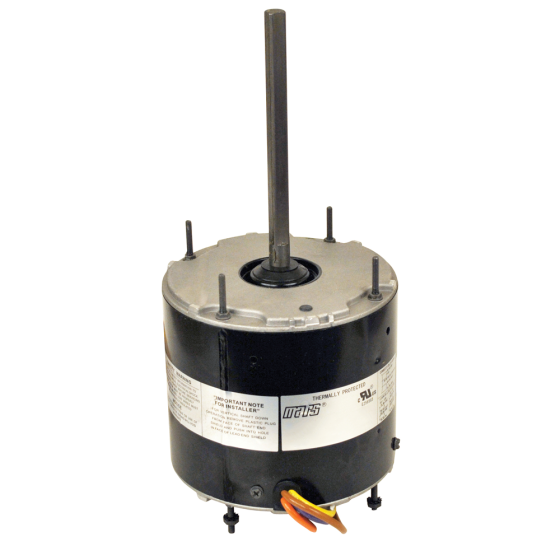

DIVERSITECH 43729 Condenser Fan Motor

Product Description

The DIVERSITECH 43729 is designed for outdoor use as a condenser fan motor. It operates effectively in both shaft-up and shaft-down configurations. This motor is suitable for air conditioning and heat pump systems.

• Fully enclosed for weather protection.
• Integrated weep hole for moisture drainage.
• Single-phase with continuous air over duty.

Product Highlights

This motor ensures reliable performance in various conditions.

Product Information

Standard Information

• Brand: DIVERSITECH
• MPN: 43729

Technical Specifications

• Motor Type: PSC
• Horsepower: 1/3
• Number of Speeds: 1
• RPM: 1075
• Full Load Amps: 2.4
• Hertz: 60
• Input Voltage: 208/230
• Phase: Single
• Frame Size: 48
• Shaft Length: 6.5 inches
• Shaft Diameter: 1/2 inches
• Ambient Temperature: 60 Deg C
• Insulation Class: Class B
• Rotation: REV
• Mounting: All Angle
• Bearing Type: Ball
• Enclosure: TEAO
• Standards: CUL
• Capacitor Included: No
• Capacitor Rating: 7.5/370
• Lead Length: 36 inches
• Weight: 20 lbs
• Dimensions (D): 12.230000 inches
• Dimensions (W): 5.500000 inches
• Dimensions (H): 12.230000 inches
