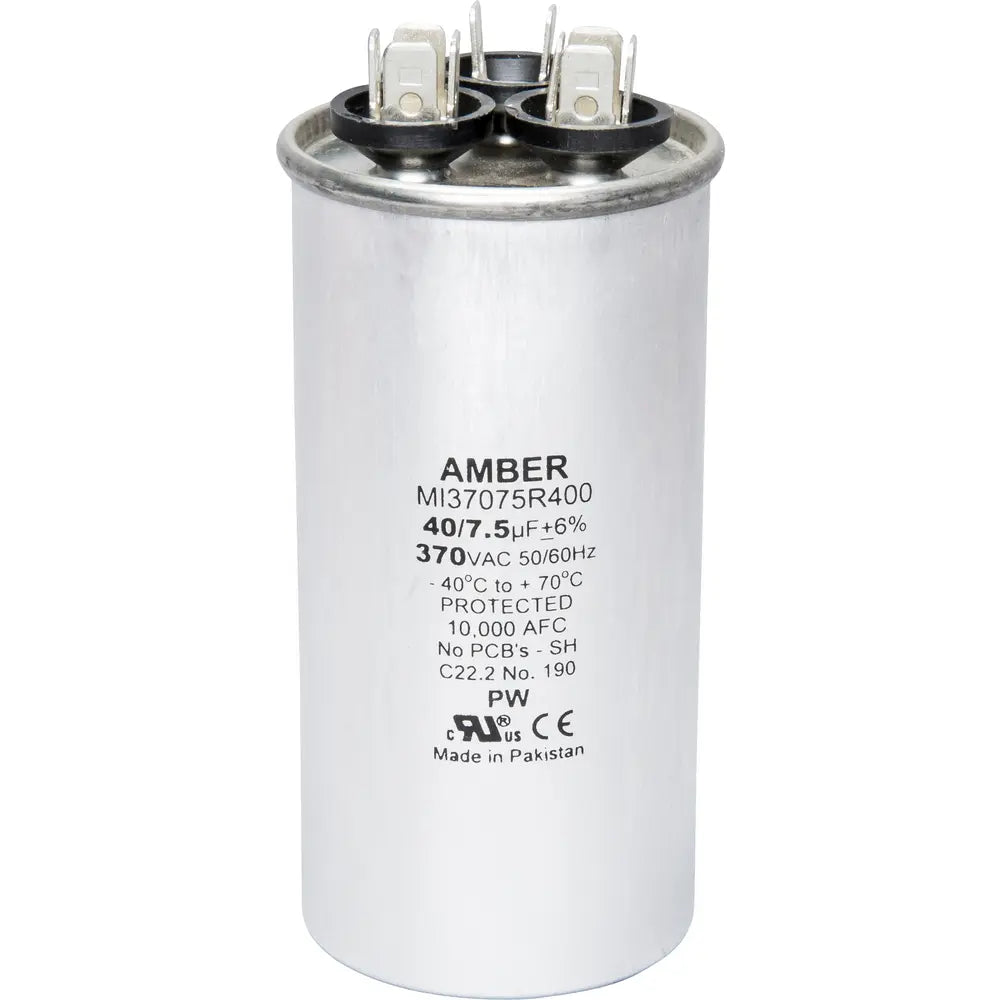

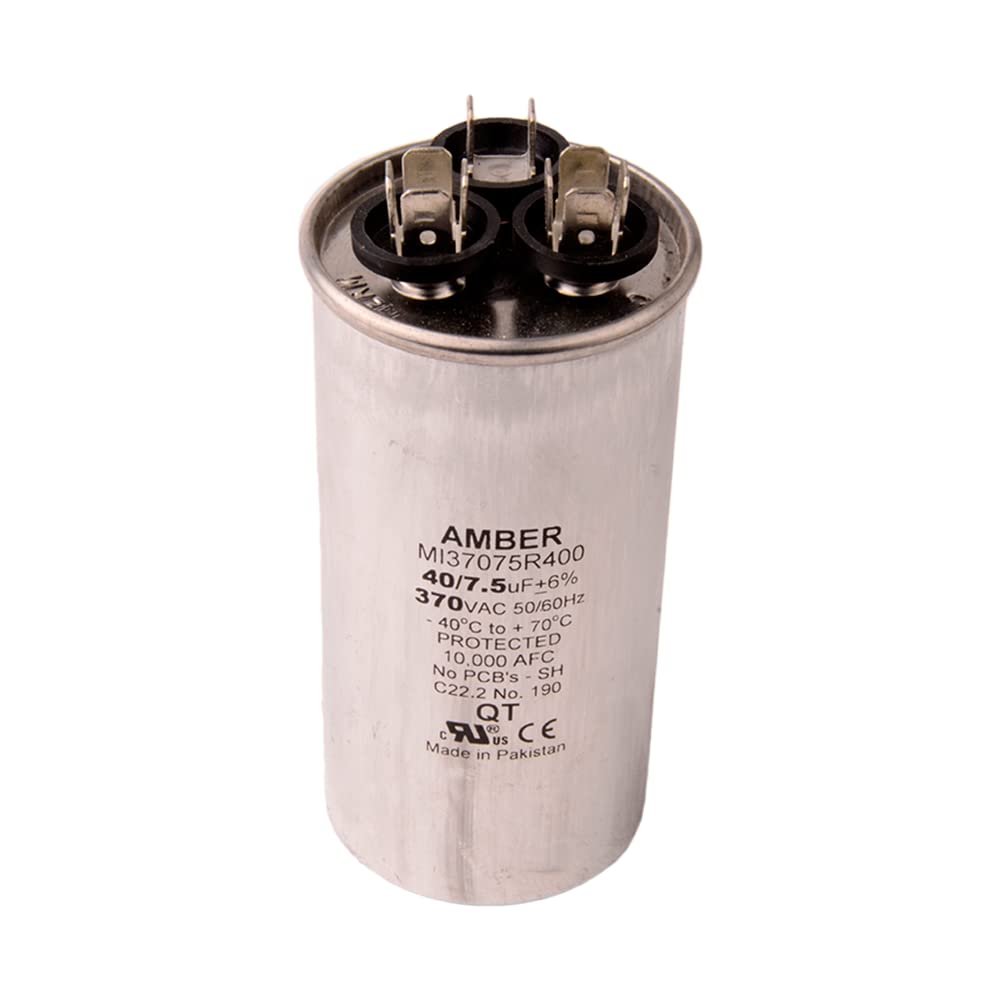

Diversitech 3GR7540 Motor Run Capacitor 370 VAC (Round / 1 Pack)

Product Description

The Diversitech 3GR7540 is a motor run capacitor with dual capacitance values of 40 + 7.5 uF rated at 370 VAC, intended for HVAC motor applications such as furnace blower and condenser fan motors. It is oil filled (non-PCB) with 1/4 in quick connect terminals, rated for 50/60 Hz operation and ±5% capacitance tolerance. Permissible temperature range is -40 C to +70 C with a guaranteed 10,000 hour life and specified withstand voltage tests.

• Electrical: 40 + 7.5 uF capacitance, 370 VAC rating, 50/60 Hz, capacitance tolerance ±5%
• Construction: Oil filled (non-PCB), round form factor, 1/4 in quick connect terminal
• Durability and safety: Guaranteed 10,000 hours life; 94% operating life at 60,000 hours; meets UL-810, CSA22.2 No190, IEC60252; specified withstand voltage and maximum permissible ratings

Product Highlights

Dual-run 40 + 7.5 uF, 370 VAC motor run capacitor for HVAC motors

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 3GR7540
• Country of Origin: Pakistan

Technical Specifications

• Brand: DiversiTech
• Manufacturer Part Number: 3GR7540
• Manufacturer: DiversiTech
• Type: Motor run capacitor
• Capacitance: 40 + 7.5 uF
• Voltage Rating: 370 VAC
• Rated Frequency: 50/60 Hz
• Capacitance Tolerance: ±5%
• Construction: Oil filled; non-PCB
• Terminal: 1/4 in quick connect
• Shape: Round
• Pack Quantity: 1
• Dimensions: 2.36 x 2.48 x 3.54 inches
• Weight: 0.80 Pounds
• Temperature Range: -40 C to +70 C
• Life Guarantee: Guaranteed 10,000 hours
• Operating Life at 60,000 Hours: 94% operating life
• Standards: UL-810; CSA22.2 No190; IEC60252
• Withstanding Voltage Between Terminals: Rated voltage × 1.75 for 10 sec
• Withstanding Voltage Between Terminals and Case: Rated voltage × 2 + 1000 VAC for 60 sec
• Maximum Permissible Voltage: 110% of rated voltage
• Maximum Permissible Current: 130% of rated current
• Part Number / Stock Code: 0258-1575
• UPC: 095247083862
• Country of Origin: Pakistan
