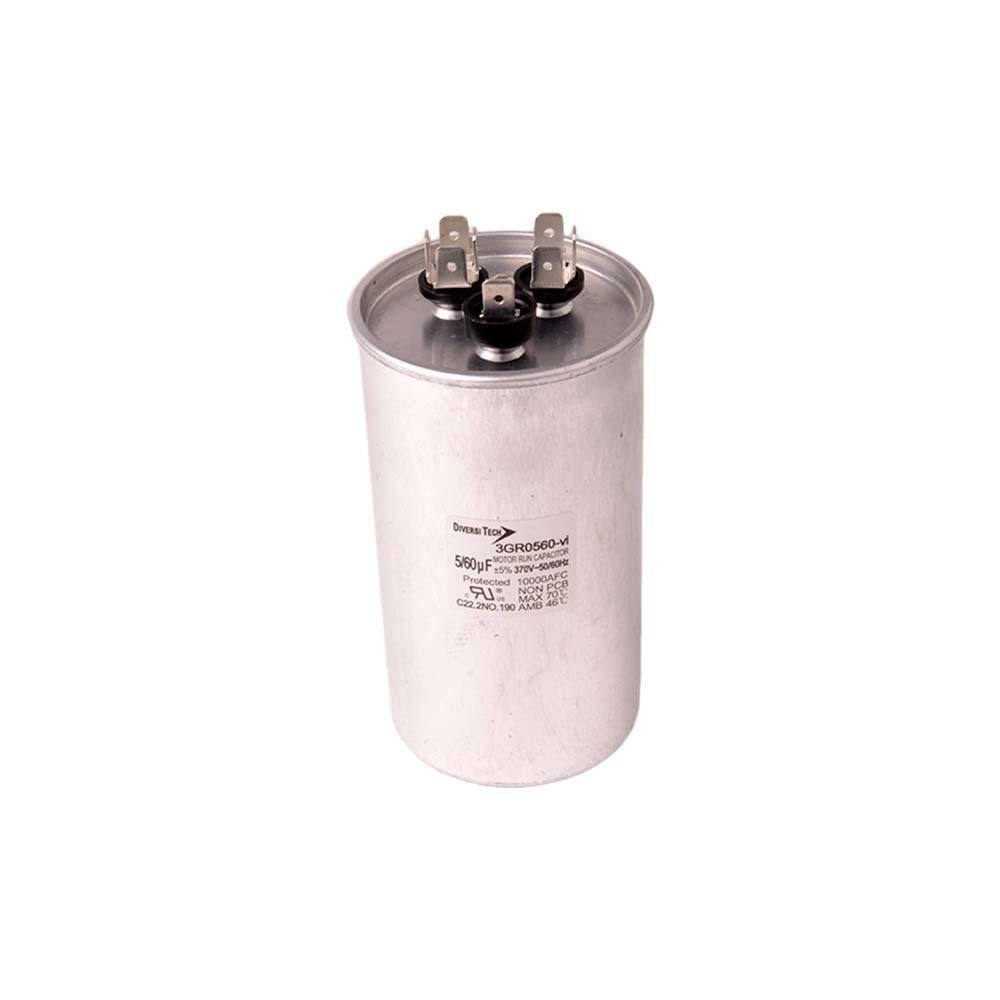

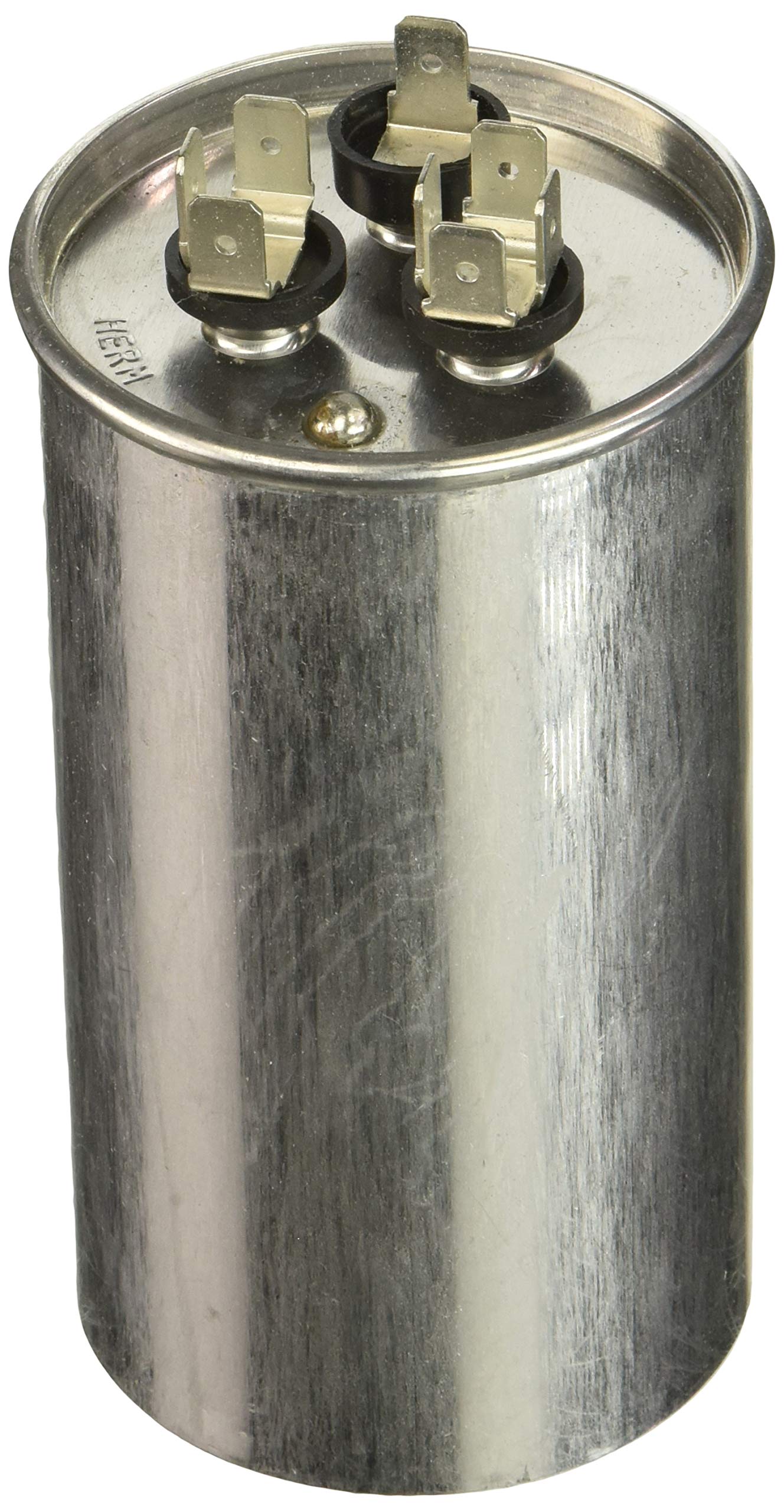

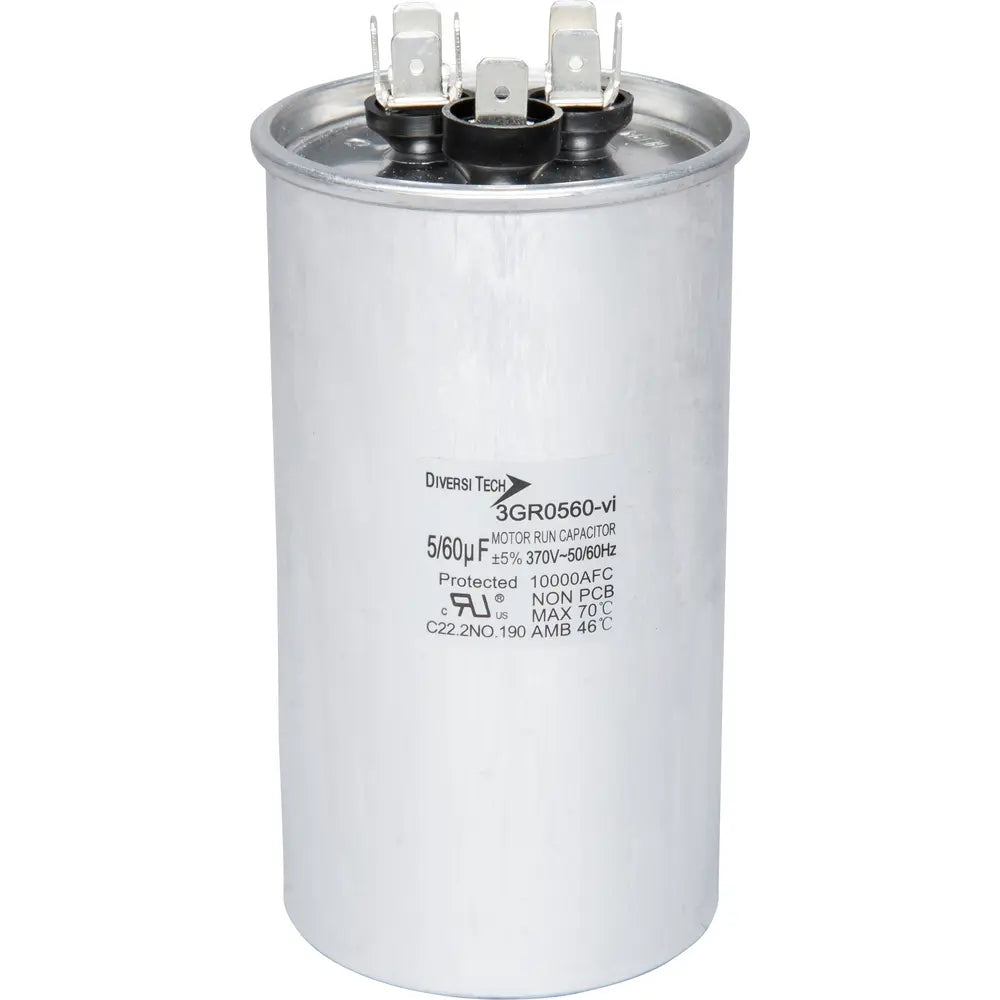

Diversitech 3GR0560 Motor Run Capacitor, 370 VAC, Round, 60+5µF

Product Description

The Diversitech 3GR0560 motor run capacitor is durable and dependable, guaranteed for over 10,000 hours of life, and has a rated frequency of 50/60 Hz. This capacitor is used for heavy-duty continuous applications such as furnace blower and condenser fan motors. It features a capacitance tolerance of +/-5%.

• Guaranteed for 10,000 hours of life under normal operating conditions
• Operating life of 94% at 60,000 hours
• Meets 10,000 AFC safety requirement per UL-810

Product Highlights

This Diversitech capacitor ensures reliable operation of industrial equipment, optimizes system performance, and extends equipment lifespan.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 3GR0560
• Country of Origin: CN

Technical Specifications

• Type: HVAC Capacitors
• Shape: Round
• Height: 4.33 Inches
• Capacity: 60+5µF
• Diameter: 2.48 Inches
• Standard: UL-810; CSA22.2 No190, IEC60252
• Voltage Rating: 370 VAC
• Rated Frequency: 50/60 Hz
• Capacitance Tolerance: +/-5%
• Permissible Temperature: -40°C to +70°C
• Withstanding Voltage test Between Terminals: Rated Voltage X 1.75VAC, 10sec
• Withstanding Voltage test Between Terminals and Case: Rated Voltage X 2+1000VAC, 60sec
• Maximum Permissible Voltage: 110% of the rated voltage
• Maximum Permissible Current: 130% of the rated current
• Manufacturer: Diversitech
• Brand: Diversitech
• Model / MPN: 3GR0560
• Number of Items: 1.0
• Volts: 370
• Material: Metal
• Capacitance: Dual
• MFD Rating: 60/5 mfd
• MPN: 3GR0560
• Manufacturer Part Number: 3GR0560
• UPC / GTIN: 095247071661
• Depth: 5"
• Width: 2.6"
• Voltage: 370V
• Item Number: 3GR0560
• Origin: Global
