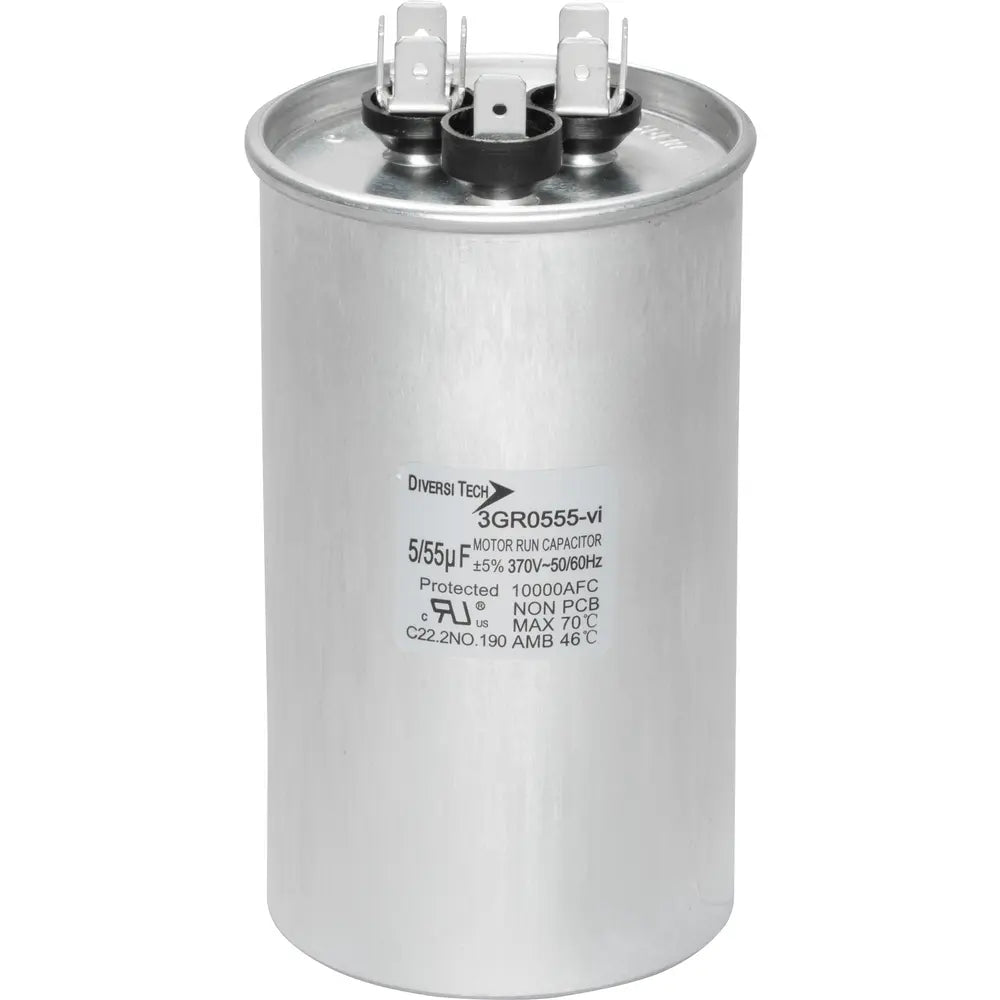

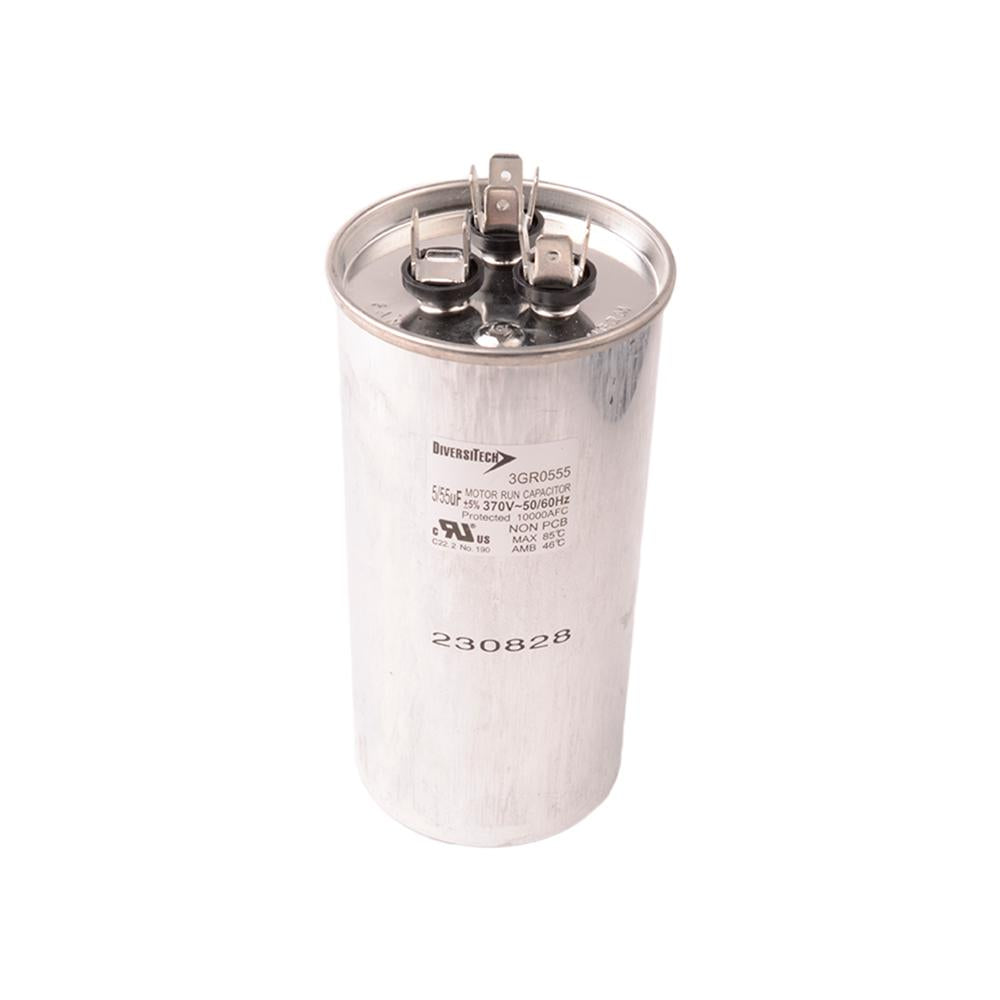

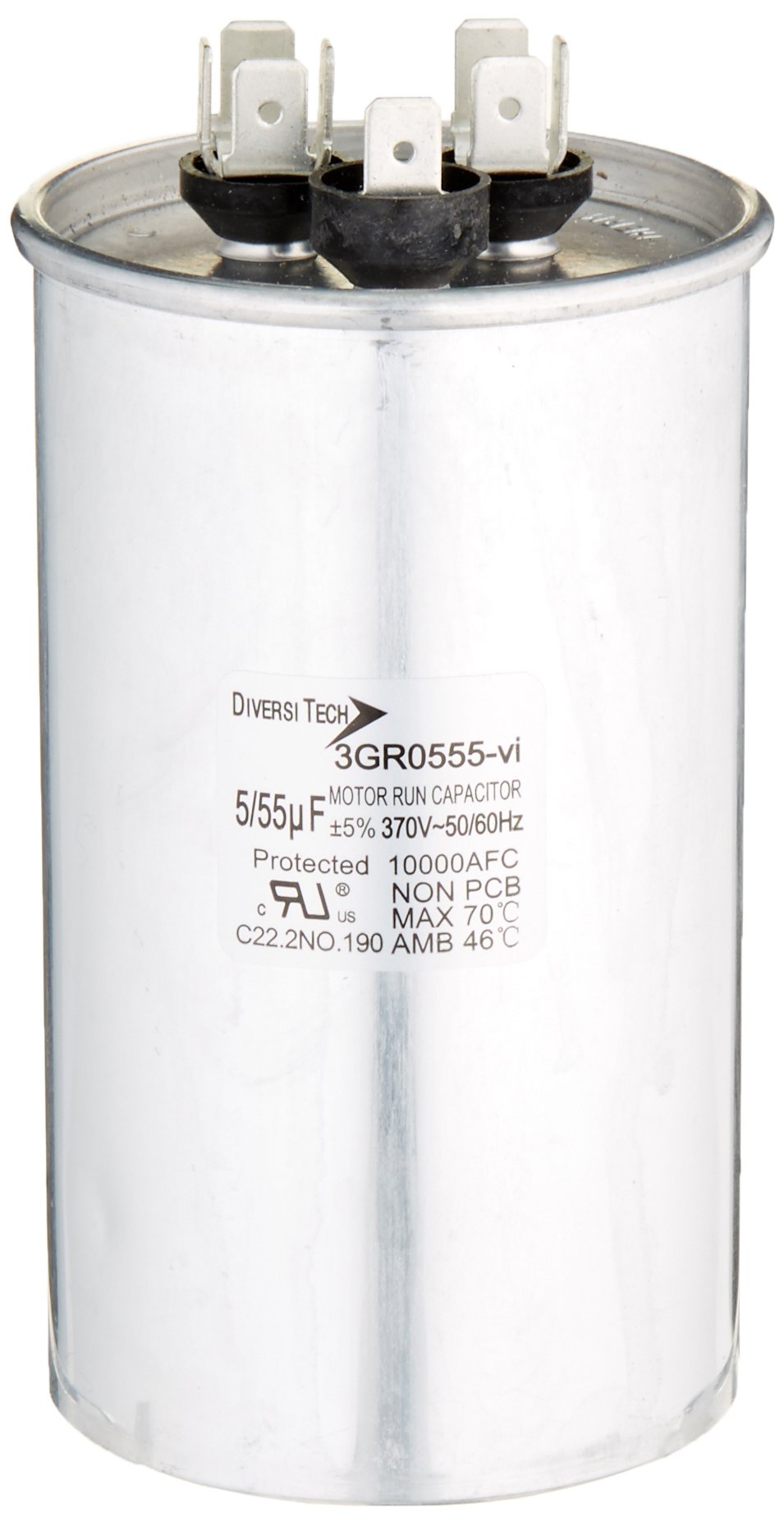

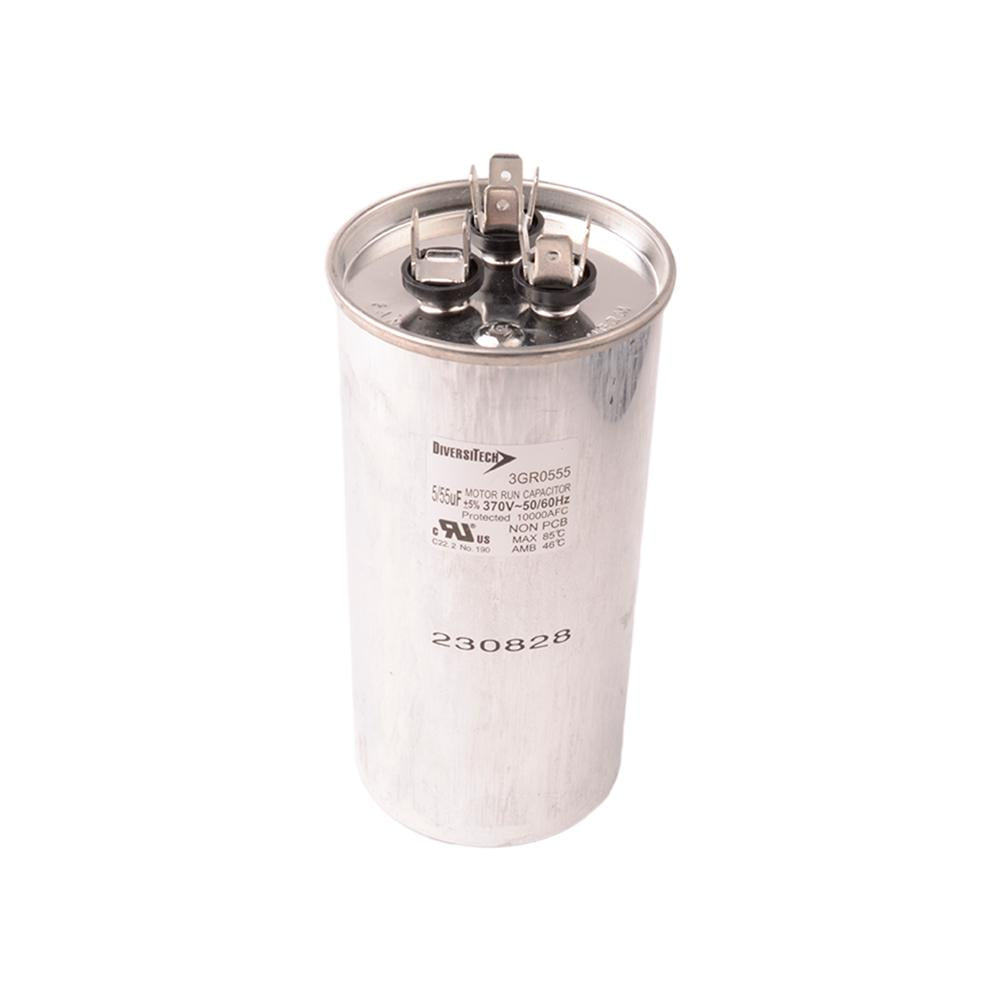

Diversitech 3GR0555 Motor Run Capacitor 370 V AC (Round 55+5 uF) 0261-7752

Product Description

The DiversiTech 3GR0555 is a round, oil-filled motor run capacitor with dual capacitance 55+5 uF rated 370 V AC for continuous heavy-duty applications such as furnace blower and condenser fan motors. It is rated for 50/60 Hz operation with ±5% capacitance tolerance, 1/4 in. quick connect terminals, and a permissible temperature range of -40°C to +70°C. The unit meets UL-810, CSA22.2 No190 and IEC60252 and is guaranteed for 10,000 hours under normal conditions.

• Dual capacitance 55+5 uF at 370 V AC; tolerance ±5%; rated 50/60 Hz
• Oil-filled, non-PCB construction with 1/4 in. quick connect terminals; round metal case
• Meets UL-810, CSA22.2 No190, IEC60252; guaranteed 10,000 hours life, 94% at 60,000 hours

Product Highlights

Round dual 55+5 uF motor run capacitor, 370 V AC, oil-filled, 1/4 in. quick connect

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 3GR0555
• Country of Origin: Pakistan

Technical Specifications

• Brand: DiversiTech
• MPN: 3GR0555
• Manufacturer Part Number: 0261-7752
• Product Type: Motor run capacitor
• Capacitance: 55+5 uF
• Voltage Rating: 370 V AC
• Rated Frequency: 50/60 Hz
• Capacitance Tolerance: ±5%
• Temperature Range: -40°C to +70°C
• Construction: Oil filled; non-PCB
• Terminal Type: 1/4" quick connect
• Shape: Round
• Dimensions: 2.36 x 2.48 x 4.13 Inches
• Weight: 0.6 Pounds
• Standards: UL-810; CSA22.2 No190; IEC60252; cRUus
• Operating Life: Guaranteed 10,000 hours; 94% at 60,000 hours
• Maximum Permissible Voltage: 110% of rated voltage
• Maximum Permissible Current: 130% of rated current
• Withstanding Voltage (terminals): Rated voltage x 1.75 for 10 sec
• Withstanding Voltage (terminals to case): Rated voltage x 2 + 1000 VAC for 60 sec
• Pack Quantity: 1
• UPC: 095247090402
• Country of Origin: PK
