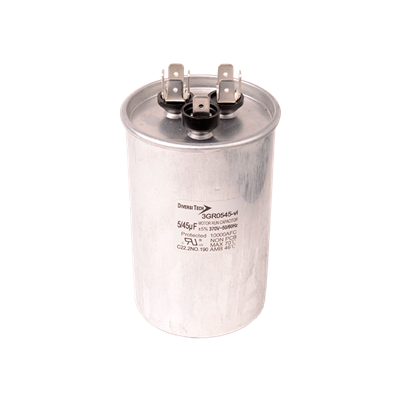

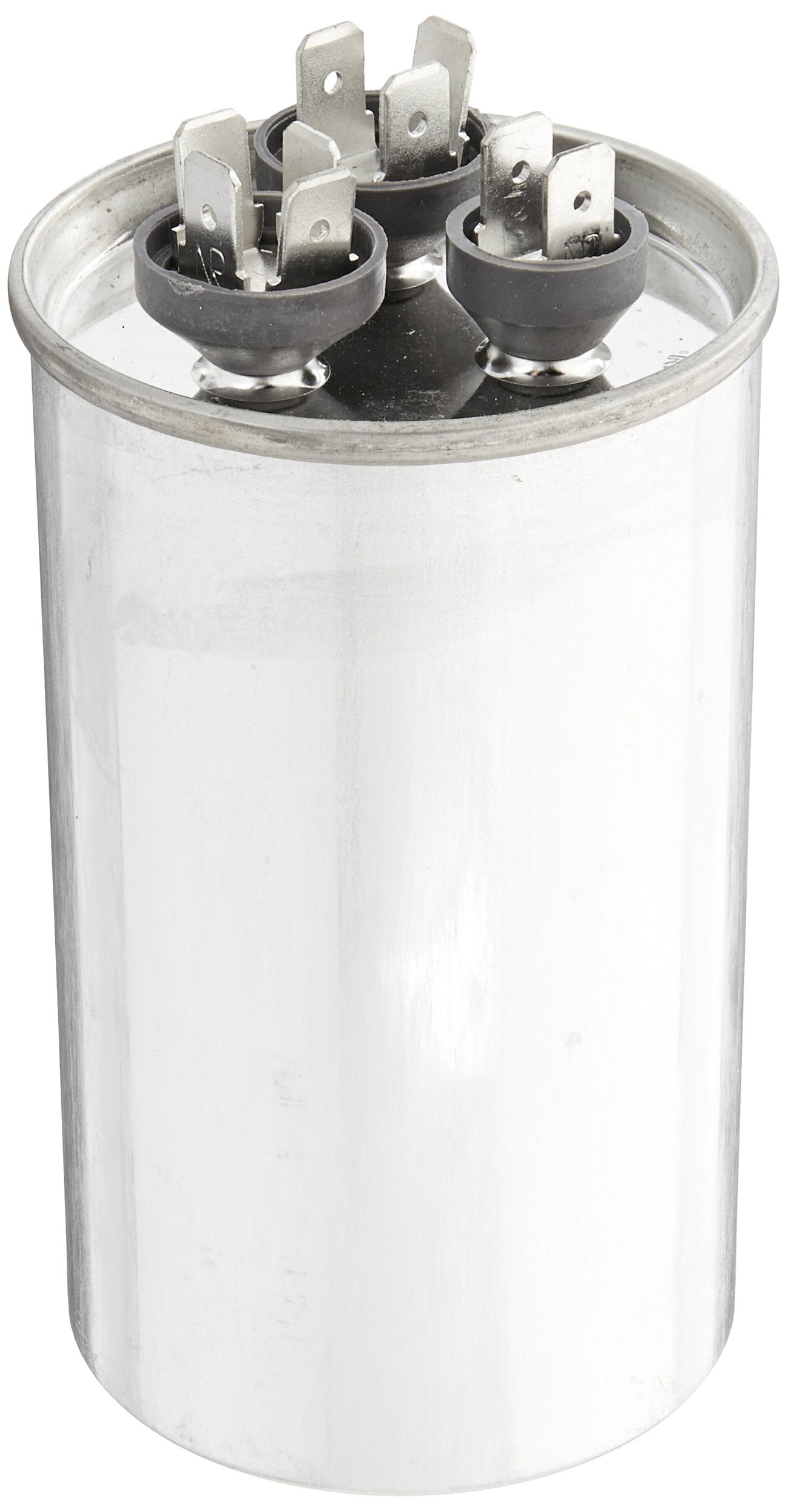

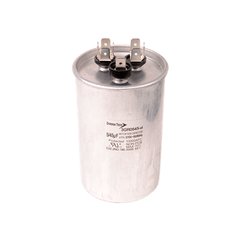

Diversitech 3GR0545 Motor Run Capacitor 45+5 uF 370V (Round)

Product Description

The Diversitech 3GR0545 is a motor run capacitor rated 45+5 uF at 370 V in a round metal housing for continuous motor applications. It provides phase-shifting capacitance for furnace blowers and conductor fan motors and includes 1/4-inch quick-connect terminals. Capacitance tolerance is ±5% and the unit is oil filled (non-PCB) with an operating range of −40 to 70 °C.

• Capacitance: 45+5 uF at 370 V with ±5% tolerance.
• Round metal housing with 1/4-inch quick-connect terminals; dimensions 2.6 in x 2.6 in x 4.4 in (W x H x D).
• Oil filled (non-PCB), operating temperature −40 to 70 °C, rated life 10,000 hours; suitable for furnace blowers and conductor fan motors.

Product Highlights

45+5 uF motor run capacitor, 370 V, round metal housing, 1/4 in quick-connect, oil filled, −40 to 70 °C

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 3GR0545
• Country of Origin: China

Technical Specifications

• Brand: Diversitech
• Manufacturer: Diversitech Corporation
• MPN: 3GR0545
• Product Type: Motor run capacitor
• Capacitance: 45+5 uF
• Capacitance Tolerance: ±5%
• Voltage Rating: 370 V
• Shape: Round
• Housing Material: Metal
• Housing Finish: Silver
• Dimensions (W x H x D): 2.6 in x 2.6 in x 4.4 in
• Terminal Type: 1/4 in quick-connect
• Dielectric: Oil filled (non-PCB)
• Operating Temperature: −40 to 70 °C
• Rated Life: 10,000 hours
• Suitable For: Furnace blowers, conductor fan motors
• Country of Origin: China
• UPC: 0095247071654
• Number of Items: 1
