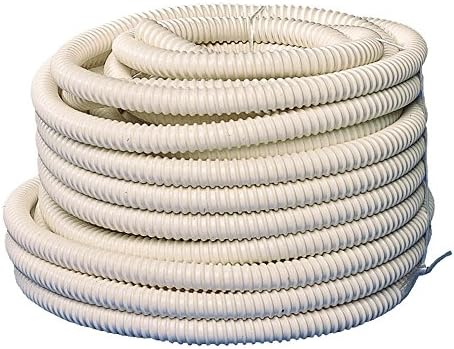

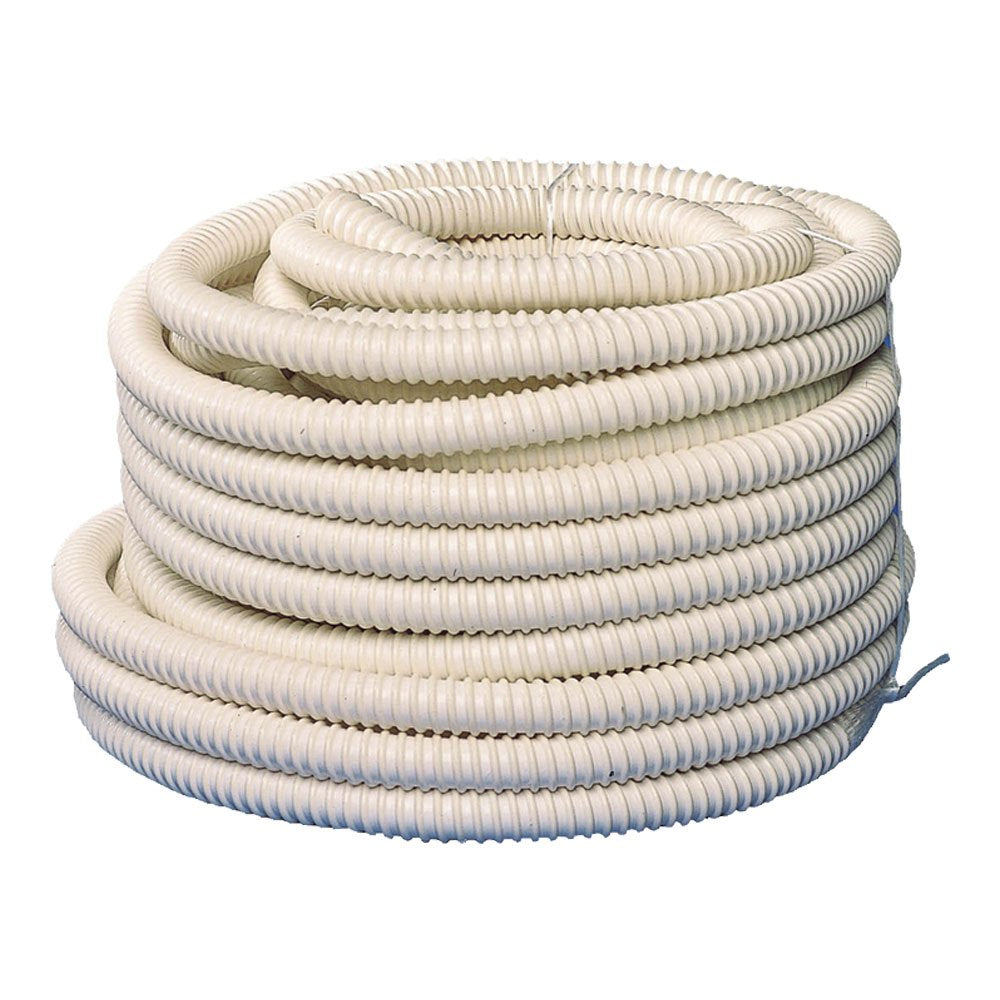

Diversitech 230-DL16 Mini-split Drain Line (5/8 in ID x 160 ft Roll)

Product Description

The Diversitech 230-DL16 is a 5/8 inch inside diameter, 160 ft roll mini-split condensate drain line for ductless HVAC systems. It is non-kinking and non-insulated, furnished with cut marks every 3.28 ft for easy sizing and connects to 16 mm, 18 mm, and 20 mm condensation outlet adapters. Constructed of plastic and rubber, it is intended for condensate drainage and condensate management on mini-split installations.

• 5/8 in inside diameter; 160 ft roll length for extended runs or multiple installations
• Cut marks every 3.28 ft and compatibility with 16 mm, 18 mm, and 20 mm condensate outlet adapters
• Non-kinking, non-insulated construction of plastic and rubber for mini-split condensate drainage

Product Highlights

5/8 in ID, 160 ft roll; cut marks every 3.28 ft; non-kinking, non-insulated mini-split condensate drain line

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 230-DL16
• Country of Origin: Vietnam

Technical Specifications

• Brand: Diversitech
• Manufacturer Part Number: 230-DL16
• Product Name: Mini-split condensate drain line
• Inner Diameter: 5/8 in (16 mm) ID
• Length: 160 ft roll
• UOM: EA
• Material: Plastic, Rubber
• Nominal Wall Thickness: 0.068 in
• Cut Mark Interval: 3.28 ft
• Compatible Adapter Diameters: 16 mm, 18 mm, 20 mm
• Kink Resistance: Non-kinking
• Insulation: Non-insulated
• Item Weight: 5.8 lb
• Package Dimensions: 15.4 x 15.3 x 9.1 inches
• Series: Spring Stocking
• Country of Origin: VN
• UPC: 095247127474
• Alternate Part Number: 1205410
