Diversitech 230-B3M Hef-T-Bracket Type 3 Medium

Product Description

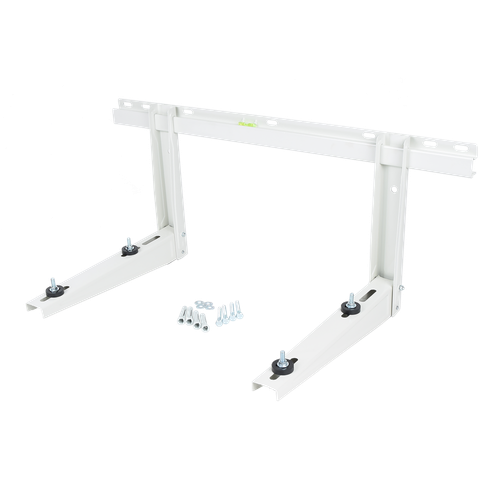

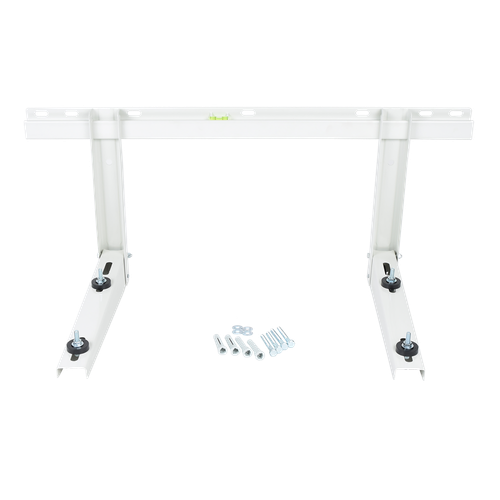

The Diversitech 230-B3M is a Hef-T-Bracket (Type 3) Medium used for supporting condensing units. It features a cross bar that attaches to a wall, and two L-shaped brackets that hook and bolt onto the cross bar. The condensing unit mounts onto the L-shaped brackets and fastens with included bolts and anti-vibration washers.

• Type 3 bracket
• Medium size
• Supports condensing units

Product Highlights

The Hef-T-Bracket features an Easy-Fit locking mechanism and includes an integral bubble level for easy installation.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 230-B3M
• Country of Origin: Malaysia

Technical Specifications

• Type: Type 3
• Size: Medium
• Supports: Condensing Units
• Bracket Type: L-Shaped Brackets
• Brand: Diversitech
• Model / MPN: 230-B3M
• Number of Items: 1.0
• Product Type: Mounting Bracket
• Manufacturer: Diversitech
• Capacity (lbs): 100 lbs
• Length (Inches): 19"
• Includes: Hardware
• Adjustable: Yes
• Base / Mount: Wall
• Application: Ductless Condenser
• Load Capacity: 250 lbs per Arm
• Material: Powder Coated Steel
• Arm or Shelf Length: 18 in.
• Mounting Method: Concrete_Stucco_Block_Siding_Brick
• No. of Arms: 2
• Product Width: 37.8 in.
• Ducted or Ductless: Ductless
• Primary UoM: Each
