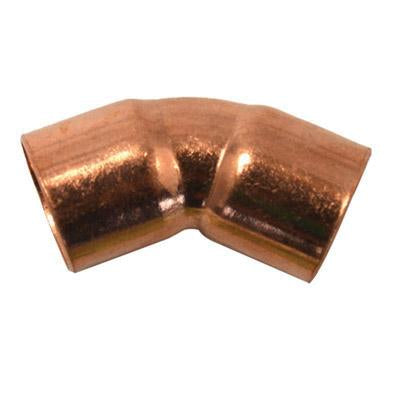

Directedair da014-06 45 Degree Copper Elbow 5/8 in

Product Description

The DIRECTEDAIR da014-06 is a 45-degree copper elbow fitting designed for refrigerant and HVAC copper tubing connections. Built from full copper construction, this fitting accepts 5/8-inch copper-to-copper (CxC) connections on both ends, making it a standard choice for changing refrigerant line direction in split systems, mini-splits, and packaged HVAC equipment. It meets industry standards for dimensional tolerances and material composition. HVAC technicians use this fitting when routing suction or liquid lines around structural obstructions or when making clean directional changes in copper tubing runs.

This elbow is suited for residential and light commercial HVAC installations where copper refrigerant or hydronic piping requires a 45-degree directional change. The 5/8-inch connection size is common on suction lines in mid-range cooling systems. Installers working on new construction or retrofit applications will find this fitting compatible with standard copper tube stock in that size range.

Key Features

• 45-degree elbow geometry for moderate directional changes in copper tubing runs
• 5/8-inch CxC connection on both ends for consistent copper-to-copper joints
• Full copper material construction meets industry dimensional and composition standards
• 5/8-inch outside diameter tubing compatibility

Compatibility

Designed as an OEM-style copper sweat fitting for use with 5/8-inch copper tubing in HVAC refrigerant and hydronic piping systems.

Installation Notes

Installation should be performed by a licensed HVAC technician or journeyman plumber familiar with copper sweat (solder) techniques. Recover and isolate refrigerant from any live system before cutting or fitting copper lines, following EPA Section 608 requirements. Use appropriate flux and lead-free solder rated for the application, and allow joints to cool fully before pressurizing the system. Inspect all brazed or soldered joints for leaks before returning the system to service.

Technical Specifications

• Connection Type: Copper x Copper (CxC)
• Connection Size: 5/8 inches
• Outside Diameter: 5/8 inches
• Elbow Angle: 45 degrees
• Material: Copper

Standard Information

• Brand: DIRECTEDAIR
• Manufacturer Part Number: da014-06
