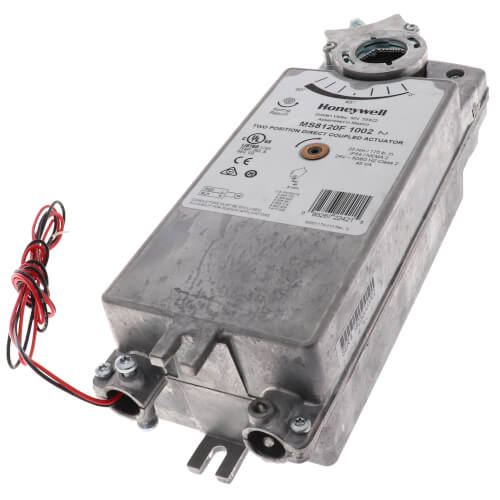

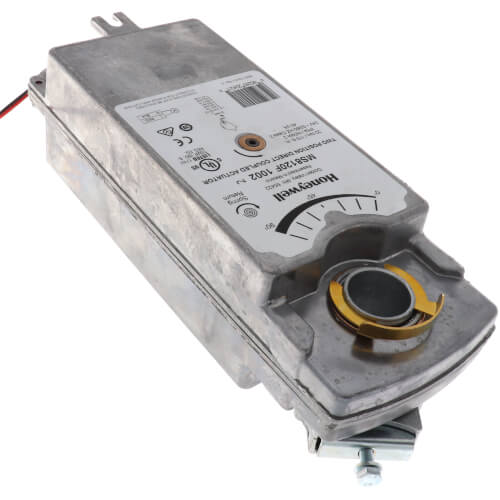

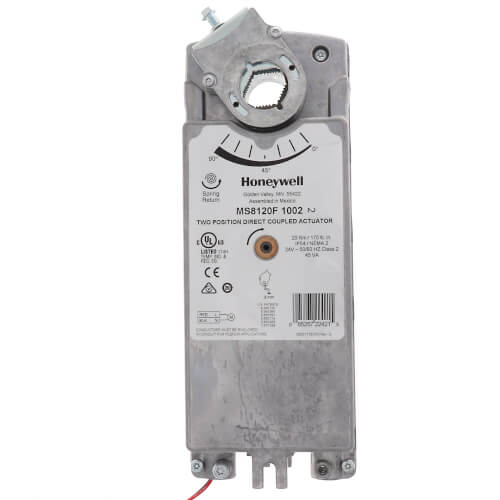

Honeywell MS8120F1002 Electric Actuator On/Off 24VAC 175 in-lb 24v Spring Return

Product Description

The Honeywell MS8120F1002 is a 24v electric actuator designed for efficient and reliable damper control in on/off systems. It features a powerful torque of 175 in-lb and incorporates a spring return mechanism for quick positioning.

• 24v fast acting actuator
• 175 in-lb torque
• On/off damper control

Product Highlights

This actuator is ideal for HVAC systems, fire and smoke control, and industrial automation. Its robust build and precise performance make it suitable for demanding applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS8120F1002

Technical Specifications

• Torque: 175 in-lb
• Voltage: 24V AC
• Control Signal: SPST, 2 Position
• Fail Safe Mode: Spring Return
• Rotational Stroke: 95 +/-3 degrees
• Spring Return Time: 15 sec
• Dimensions: 10.67 inches high, 3.94 inches wide, 2.95 inches deep
• Ambient Temperature Range: -40 to 130 F
• Operating Humidity Range: 5 to 95% RH, non-condensing
