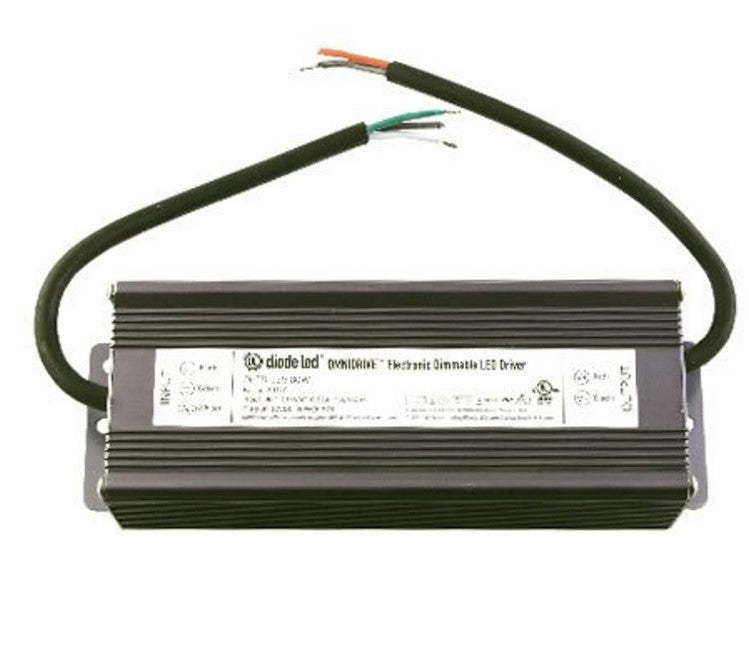

Diode Led DI-TD-24V-60W Omnidrive electronic dimmable driver 60W (Each)

Product Description

Diode LED DI-TD-24V-60W is an Omnidrive electronic dimmable LED driver that provides a 24V DC output at up to 60W for LED lighting applications. The driver features an electronic filter to eliminate flicker and supports smooth dimming from 100% down to 10%. It is compatible with a wide range of dimmer types and is rated for dry or wet locations, suitable for low-voltage linear and tape lighting.

• 24V DC output, 60W maximum power with Omnidrive electronic dimming
• Smooth dimming 100% to 10% with built-in electronic filter; compatible with TRIAC, MLV, ELV and incandescent/halogen dimmers including 3/4/5-way
• Rated for dry or wet locations; compact dimensions 7.9" x 2.7" x 1.8" and approximately 2.2 lb

Product Highlights

Omnidrive electronic dimmable LED driver, 24V DC output, 60W, flicker control, 100% to 10% dimming, broad dimmer compatibility, dry or wet location rated

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-TD-24V-60W
• Country of Origin: China

Technical Specifications

• Brand: Diode LED
• Manufacturer Part Number: DI-TD-24V-60W
• Model/Name: Omnidrive electronic dimmable driver
• Type: Electronic dimmable LED driver
• Output Voltage: 24V DC
• Input Voltage: 120V AC
• Power (Wattage): 60W
• Dimmable: Yes (electronic dimmable)
• Dimming Range: 100% to 10%
• Compatibility: TRIAC, MLV (magnetic low voltage), ELV (electronic low voltage), incandescent/halogen dimmer switches; supports 3/4/5-way and on/off switching
• Built-in Feature: Electronic filter to reduce/eliminate flicker
• Location Rating: Dry or wet location rated
• Dimensions: 7.9 x 2.7 x 1.8 inches
• Weight: 2.2 lb
• UPC: 848333002779
• Technology: Omnidrive
