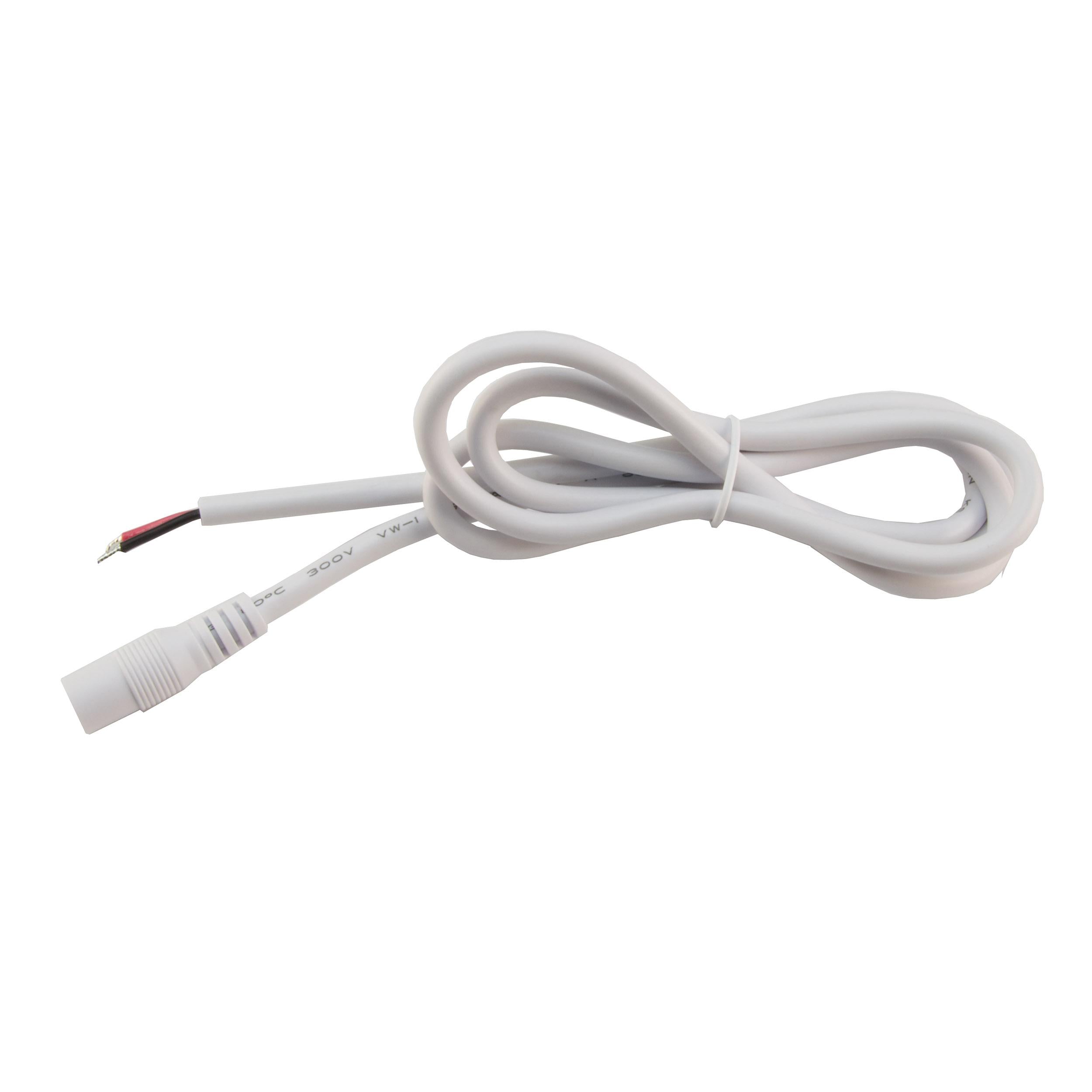

Diode Led DI-PVC2464-DL42-SPL-F Adapter Splice Cable 60W/100W (42 in)

Product Description

Diode LED DI-PVC2464-DL42-SPL-F is an adapter splice cable that provides a female DC plug to hardwire connection for LED fixtures and DC adapters. The 42-inch 18/2 AWG PVC cable converts a standard DC plug to two exposed wires for soldering and functions as an extension for low-voltage DC adapters. It supports 12�24 VDC input and is rated for dry locations with load capacity up to 60W at 12V or 100W at 24V.

• Female DC plug to hardwire connection; converts DC plug to two exposed wires for direct soldering
• 42 in length with 18/2 AWG PVC cable, suitable as a permanent extension for 12�24 VDC adapters
• Rated for dry locations; load capacity 60W at 12V and 100W at 24V

Product Highlights

Female DC to hardwire adapter cable, 42 in 18/2 AWG, supports 12�24 VDC (60W/100W), dry location rated

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-PVC2464-DL42-SPL-F

Technical Specifications

• Brand: Diode LED
• Manufacturer: Diode LED
• Manufacturer Part Number: DI-PVC2464-DL42-SPL-F
• Catalog Number: DI-PVC2464-DL42-SPL-F
• SKU: DLD-DIPVC2464DL42SPLF
• Item Number: 94523
• UPC: 848333006159
• Connection Type: DC plug, hard-wired
• Connector Gender: Female DC plug
• Wire Gauge: 18/2 AWG
• Length: 42 in
• Dimensions: 42 x 0.45 x 0.45 in
• Weight: 0.13 lb
• Input Voltage: 12-24 VDC
• Wattage: 60W at 12V; 100W at 24V
• Environment / IP Rating: Dry location
