Diode Led DI-MKD-12V60W MikroDIM Electronic Dimmable Driver 60W (12V)

Product Description

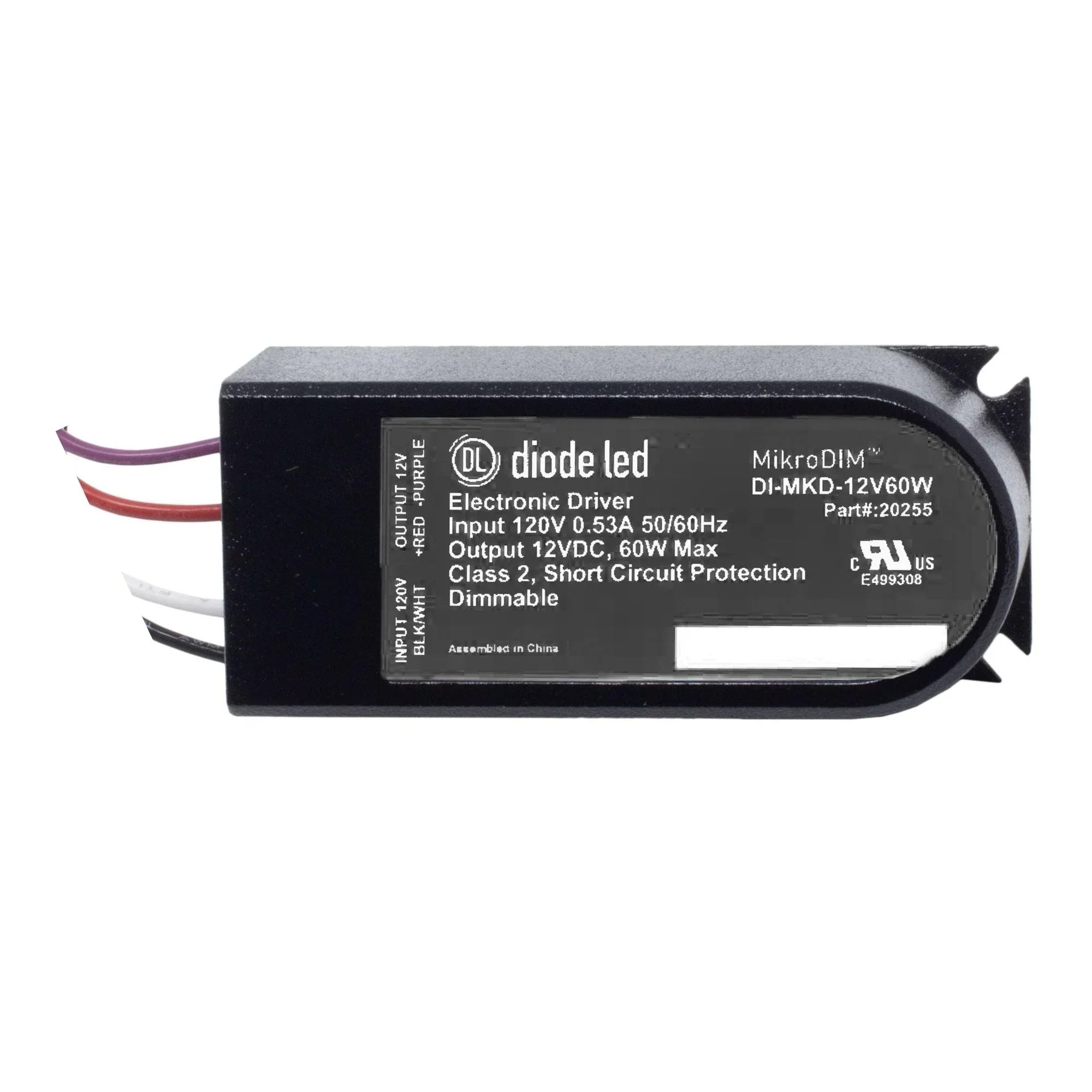

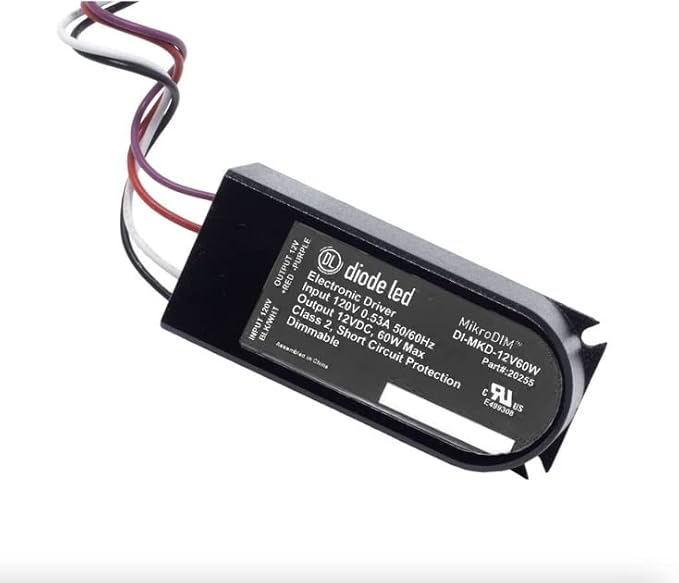

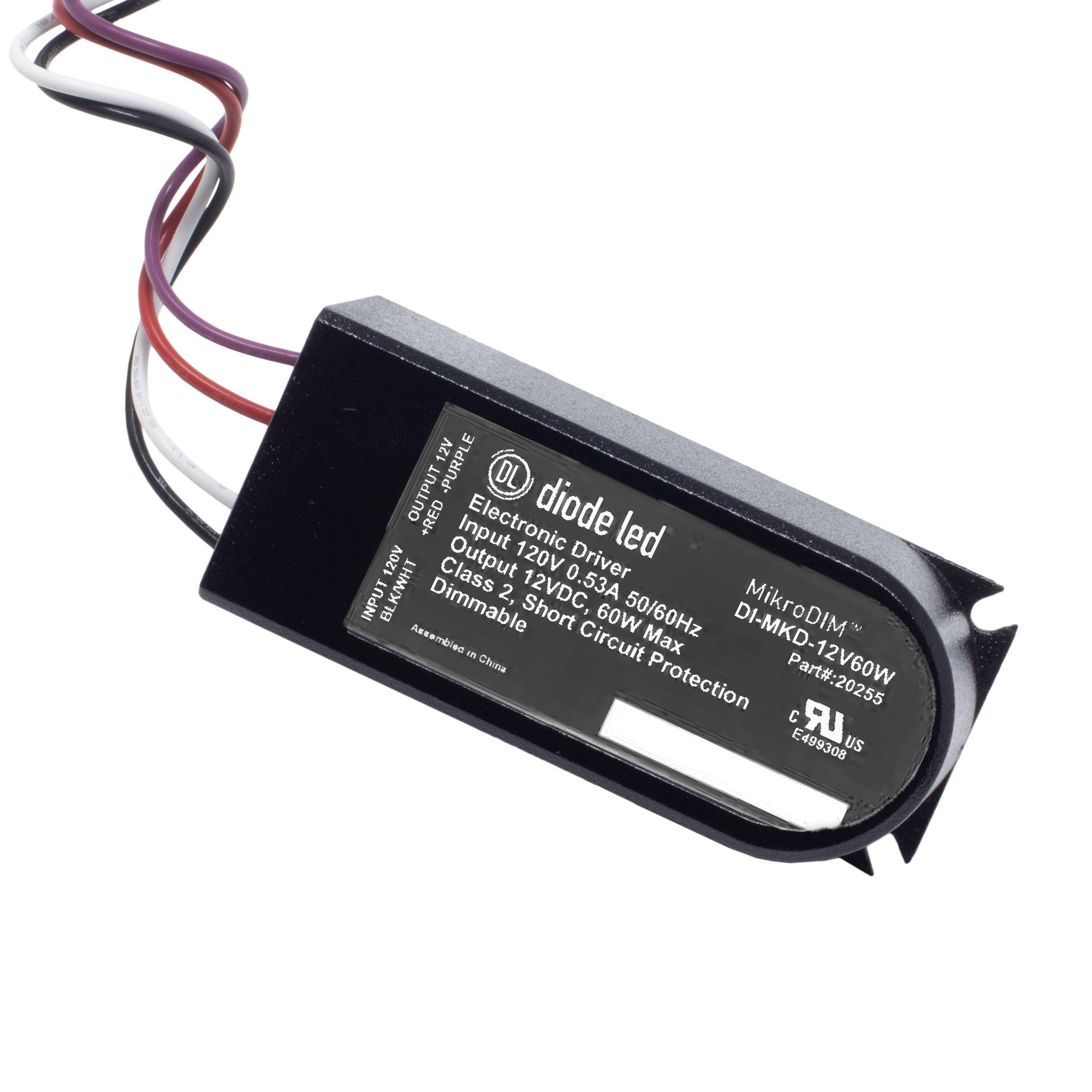

Diode LED DI-MKD-12V60W is a compact MikroDIM electronic dimmable LED driver that provides 12V output with a 60W maximum power capacity for low-voltage lighting. The driver supports ELV dimming and requires no minimum load. Its patented design includes built-in protections for short circuit, over current, over voltage, and over temperature, and it is Class 2 UL recognized for indoor/damp locations.

• 12V DC constant-voltage output, 60W maximum power
• ELV dimming compatible with no minimum load; hard-wired connection
• Built-in short circuit, over current, over voltage, and over temperature protections; Class 2 UL recognized; IP20

Product Highlights

60W, 12V DC MikroDIM electronic dimmable driver with ELV dimming, no minimum load, built-in protections, Class 2 UL recognition, and IP20 indoor/damp rating

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-MKD-12V60W
• Country of Origin: United States

Technical Specifications

• Brand: Diode LED
• Manufacturer: Diode LED
• Manufacturer Part Number: DI-MKD-12V60W
• Model Number: DI-MKD-12V60W
• Catalog Number: DI-MKD-12V60W
• UPC: 848333026751
• Output Voltage: 12V DC
• Maximum Power: 60 Watts
• Wattage Rating: 60W Class 2

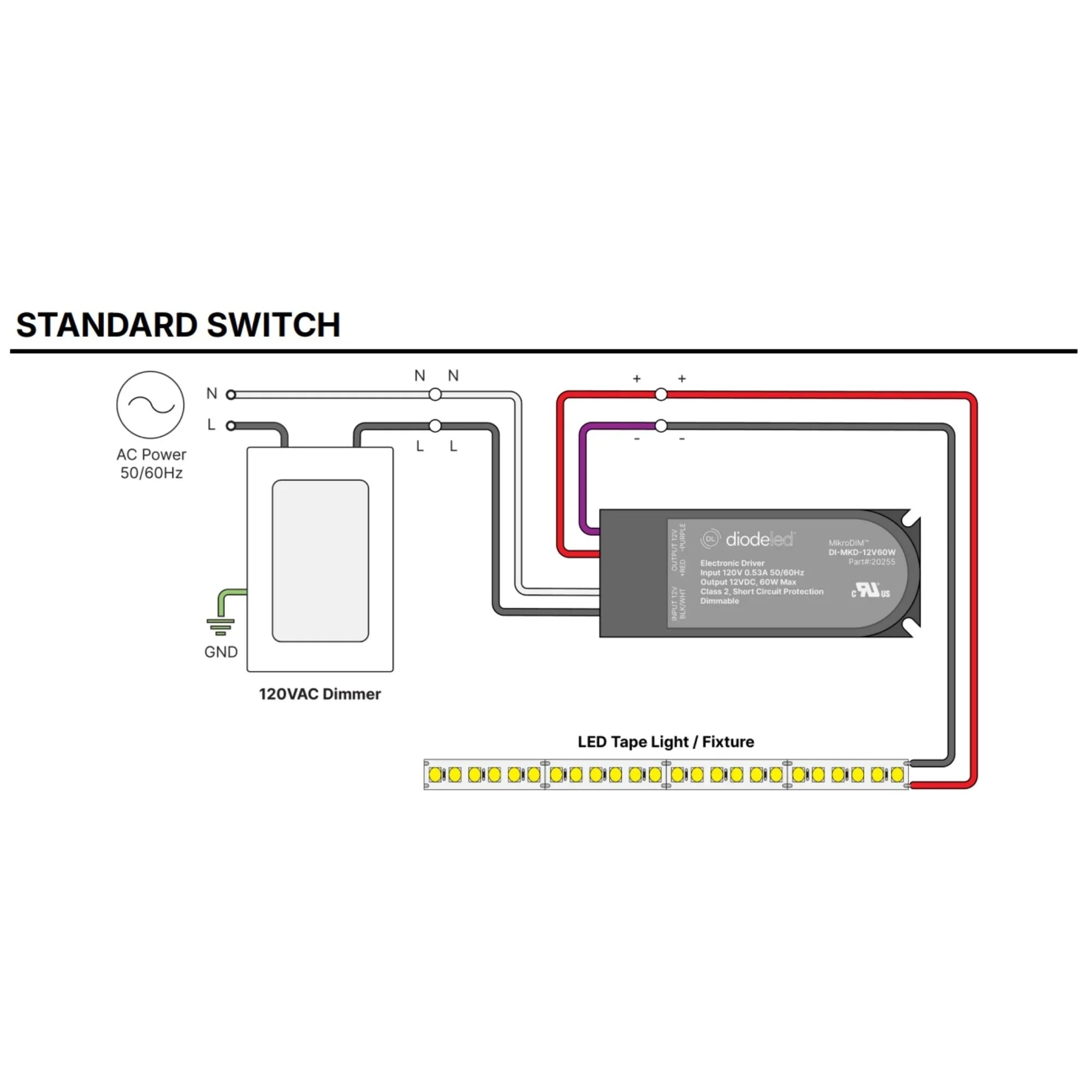

• Dimming Type: ELV dimming (MikroDIM electronic)
• Minimum Load: No minimum load
• Connection Type: Hard-Wired
• Enclosure Type: Compact design

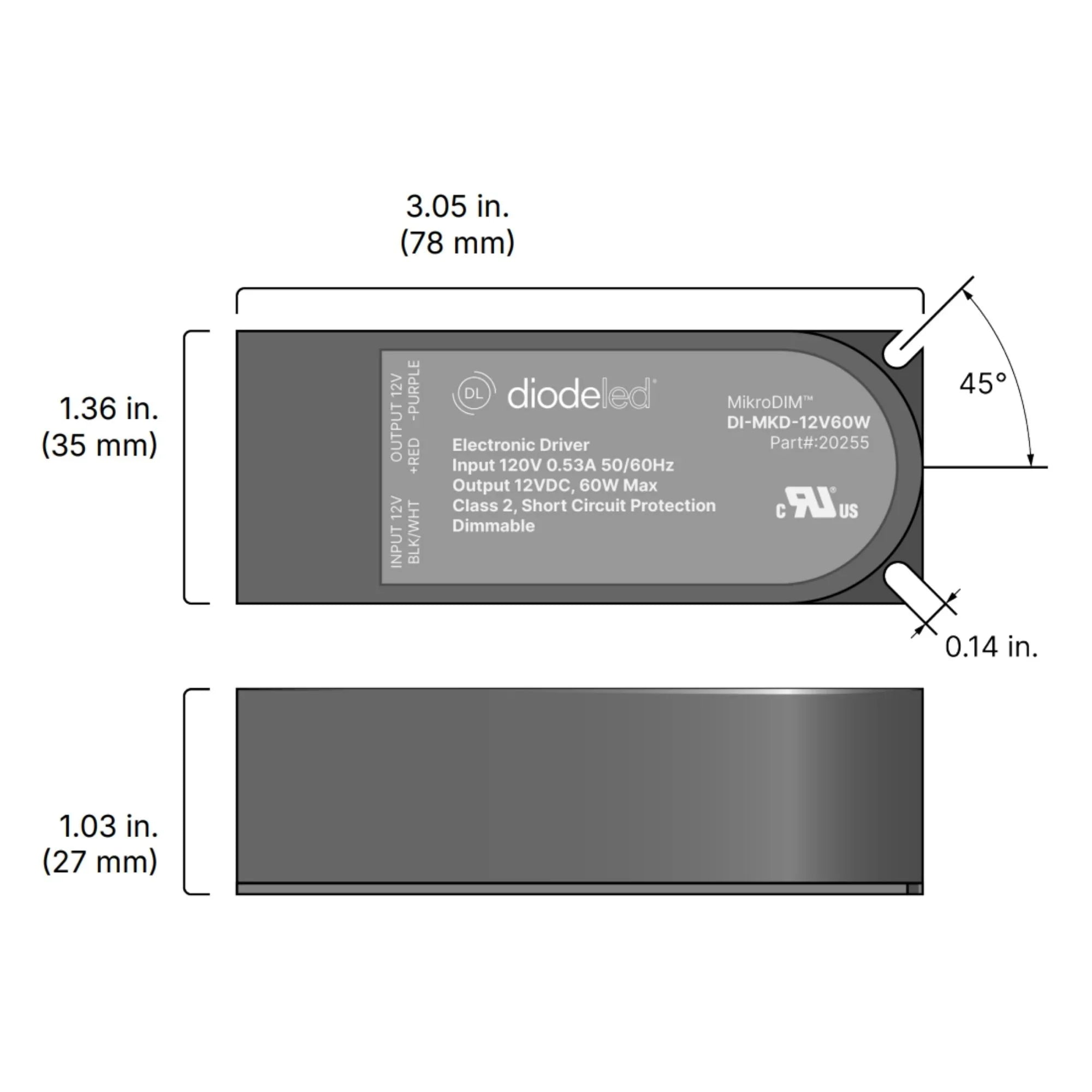

• Dimensions: 3.05 in x 1.36 in x 1.03 in
• IP Rating: IP20 (Indoor / Damp Location)
• Certifications: cULus, CE, Class 2 UL component recognized
• Protections: Built-in short circuit, over current, over voltage, and over temperature protections
• Form Factor: Compact
• Country of Origin: United States
