Description

Product Description

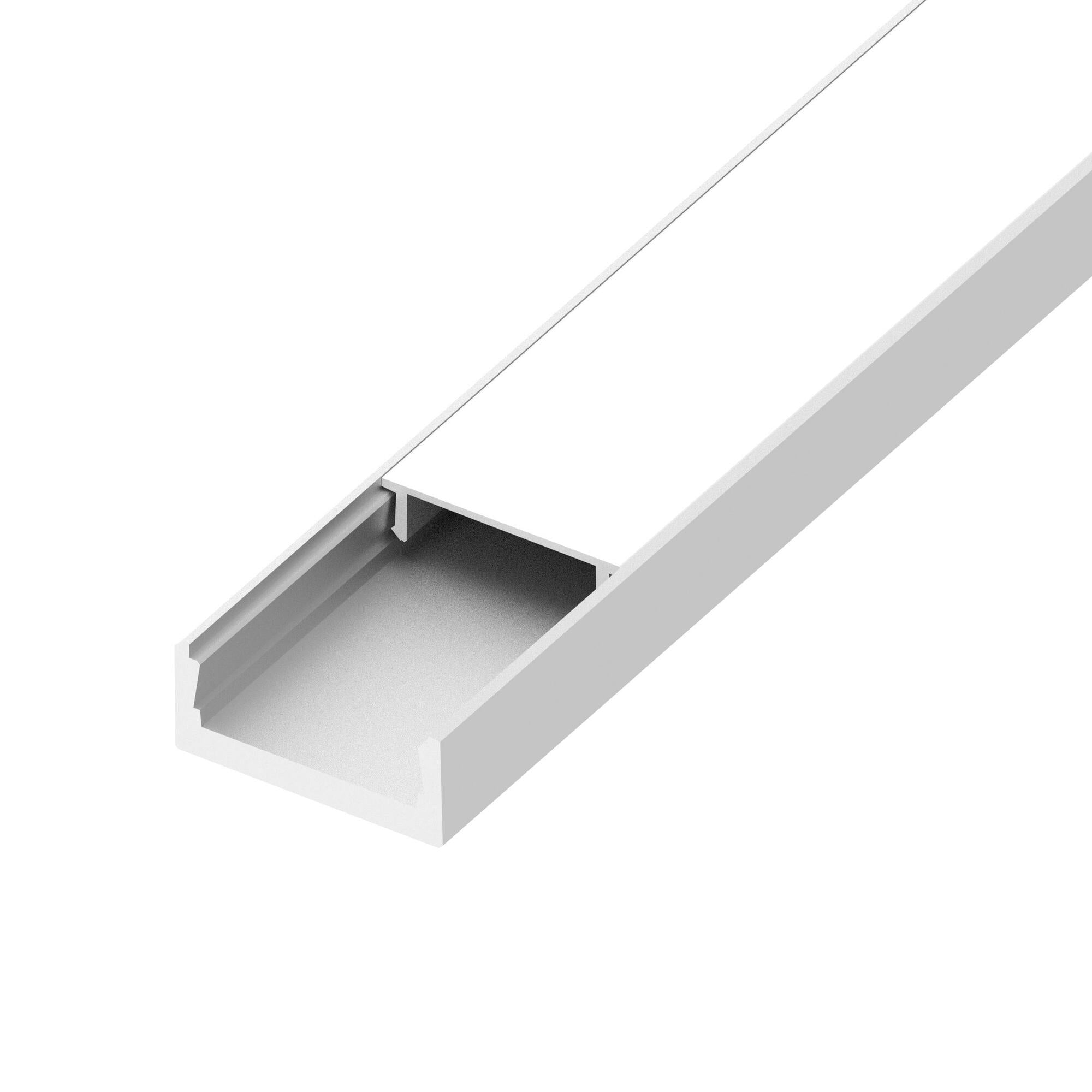

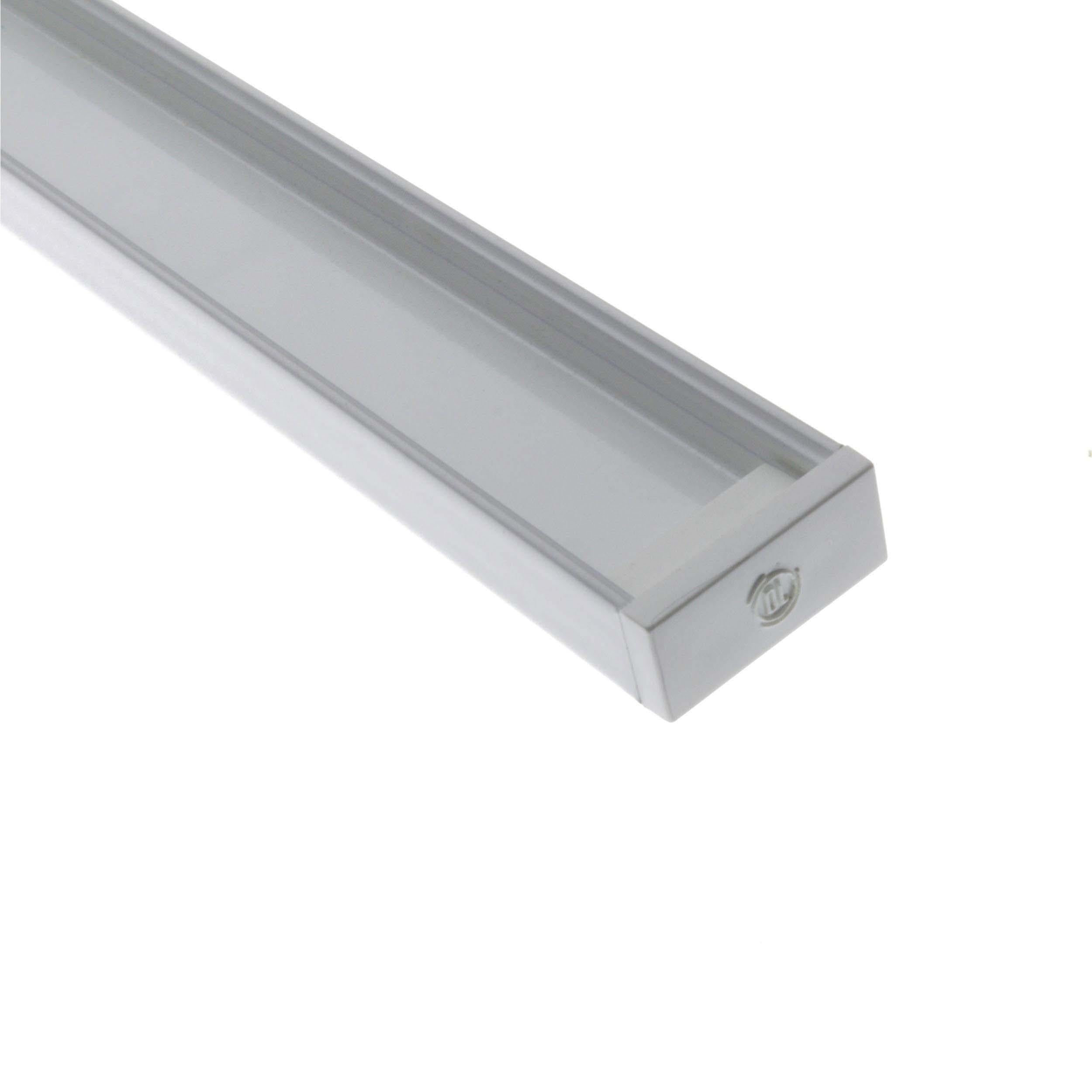

Diode LED DI-CPCHA-SL48W is a 48 in. slim builder channel designed to house LED tape light. The aluminum extrusion provides a rigid, dust-resistant surface-mount housing that functions as a heat sink to cool and prolong LED tape light life. The channel is field cuttable and ships as the channel only; lens and end caps are sold separately. It includes mounting clips and end-to-end interconnects for installation.

  • Aluminum slim-profile extrusion (48 in.) that acts as a heat sink and dust-proof housing
  • Includes (4) mounting clips with screws and (2) end-to-end interconnects; field cuttable
  • Channel only; lens and end caps sold separately; compatible with select Diode LED tape light families

Product Highlights

Slim surface-mount aluminum channel, 48 in., interior width 0.67 in, IP20

Product Information

Standard Information

  • Brand: DIODE LED
  • Manufacturer Part Number: DI-CPCHA-SL48W
Technical Specifications
Brand
Diode LED
Manufacturer Part Number
DI-CPCHA-SL48W
Product Type
LED Tape Light Channel / Channel Component
Series
SLIM Channel
Length
48 in.
Material
Aluminum
Finish
White (Gloss)
Profile Type
Slim
Mounting Type
Surface
Overall Width
0.82 in
Height
0.38 in
Interior Width
0.67 in
Interior Depth
0.30 in
Weight
0.60 lb
UPC
848333009808
IP Rating
IP20
Included Components
(4) mounting clips with screws; (2) end-to-end interconnects
Lens / Cover
Not included (polycarbonate cover sold separately)
Field Cuttable
Yes
Compatible Tape Lights
Compatible with select Diode LED tape light families such as BLAZE, VALENT, DAZZLE, STREAMLITE and related models
