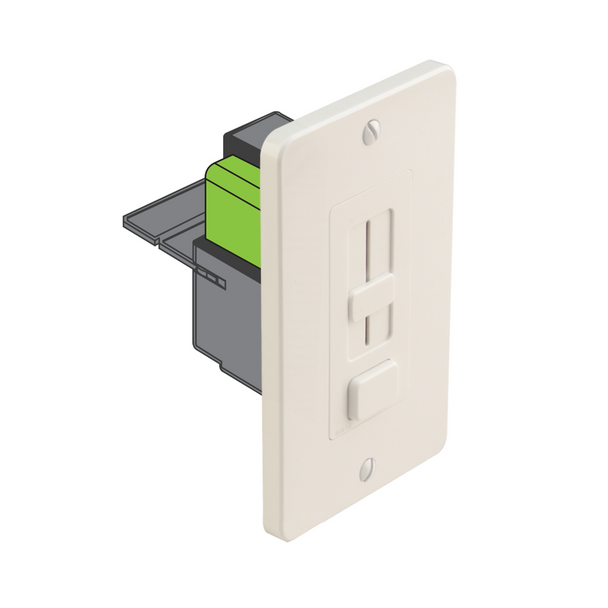

DIODE DI-12V-SE-40W LED Dimmer and Driver Switch

Product Description

The DIODE DI-12V-SE-40W is a combination LED driver and dimmer switch made for 12V LED loads. This unit fits in a standard recessed box and offers a dimming range from 100% to 5%, without needing a minimum load. It features a single pole preset dimmer with an on/off push switch and an adjustable voltage output dial. The product includes a voltage barrier to allow high and low voltage circuits in the same box. After a power failure, the unit remembers its last setting. It comes with glossy white, glossy light almond, and glossy dark brown face plates.

• Combines an LED driver and in-wall dimmer switch into a single unit.
• Facilitates installation by resolving driver and dimmer compatibility issues.
• Allows for voltage adjustment to compensate for voltage drop.

Product Highlights

Ideal for controlling 12V LED lighting systems with ease and efficiency.

Product Information

Standard Information

• Brand: DIODE
• MPN: DI-12V-SE-40W

Technical Specifications

• Input Voltage: 120VAC (108 - 132VAC), 50/60Hz (47 - 63Hz)
• Load Rating: 12VDC, 40 Watt, 3.3 Amp
• Power Factor: >0.9 @ 120VAC 60Hz max load
• Standby Power: <0.5W
• Efficiency: >91% @ 120VAC max load
• Protection: Short circuit, thermal runaway, over voltage
• Switch Type: Single Pole
• Dimmer Type: Slide
