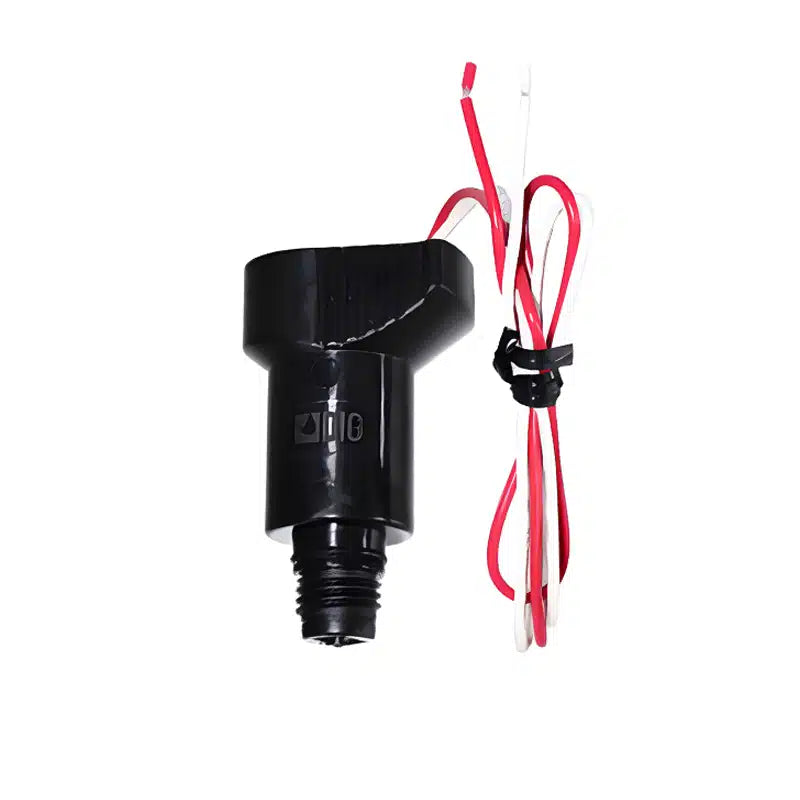

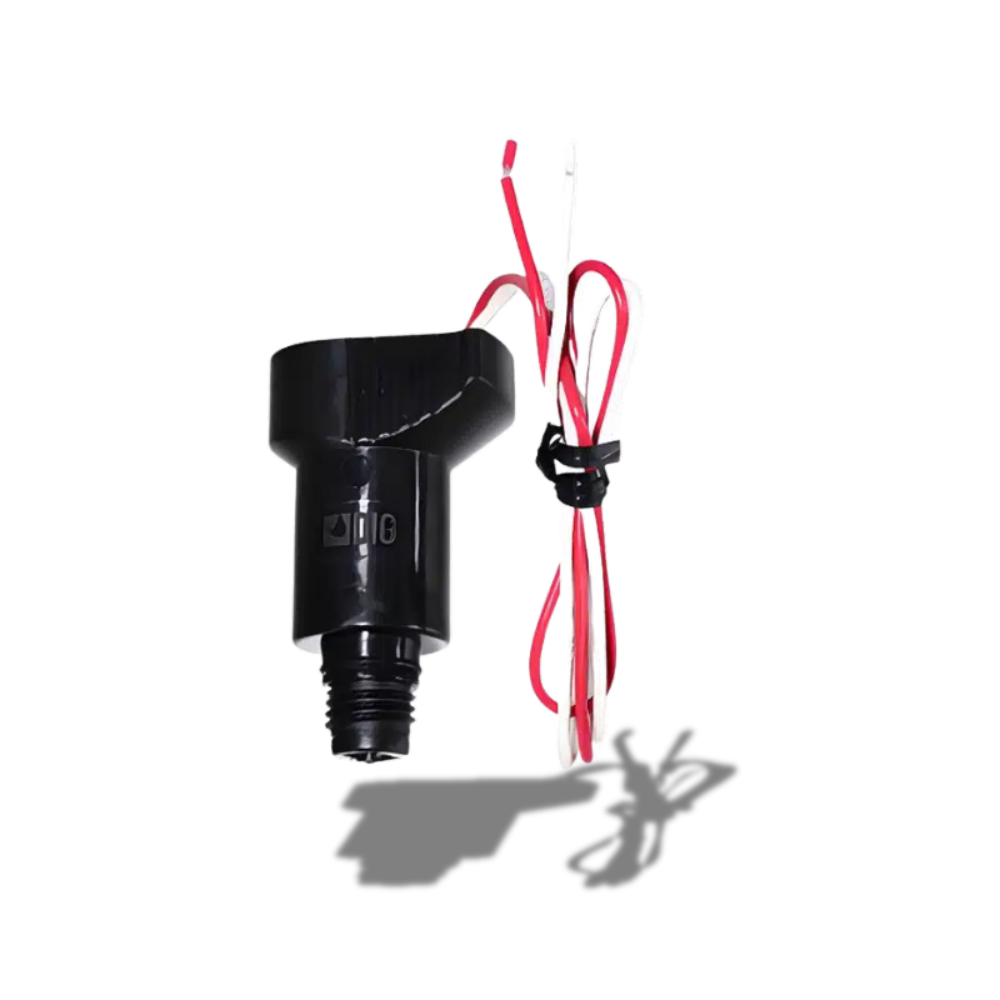

Dig LEMA 1700S Dc Solenoid Actuator & Adapters

Product Description

The DIG LEMA 1700S solenoid actuator is an advanced replacement for the LEMA 1600HE, designed to operate seamlessly with DIGs, LEIT ambient light (solar) powered controllers. Compatible with LEIT 4000, LEIT X, LEIT XRC and the LEITLINK weather based smart controller system. Easily installed on various brand name valves, using the appropriate DIG adapter.

• Potted technique for sealed, waterproof construction
• Allows connections of up to 6 sensors in conjunction with the new LEITLINK weather based smart controller
• Power efficiency with electronic management system that requiring minimal power

Product Highlights

The LEMA 1700S solenoid actuator is an encapsulated, watertight, two-way magnetic solenoid actuator that requires minimal power to operate.

Product Information

Standard Information

• Brand: DIG
• Manufacturer Part Number: LEMA 1700S

Technical Specifications

• Solenoid actuator thread: 11/16"-12 UN
• Pressure range: 10-150 PSI (.7-10.5 BAR)
• Control orifice: .065 (1.7 mm)
• Solenoid housing: glass-reinforced nylon
• Plunger & spacer: 430F stainless
• Plunger rubber cap: EPDM
• O-ring: Buna-N
• Controller compatibility: Designed for use with LEIT 4000, LEIT X, and LEIT XRC controllers only.
• Sealed construction: Potted, waterproof housing protects internal components from moisture and contaminants.
• Thread and fittings: Standard 11/16"-12 UN solenoid thread; adapters sold separately to convert most brand-name valves.
• Performance range: Operates across a 10–150 PSI (0.7–10.5 BAR) pressure range with a .065" (1.7 mm) control orifice.
• Electrical & leads: Two color-coded lead wires (red and white), 18" (45 cm), UL 1015, AWG 16, 300V.
• Operating temperature: Rated for 32 0F to 150 0F (3 0C to 65 0C)
• Brand: DIG Corporation
• Item: Actuator & Adapter
• Type: DC Solenoid
• Series: 1700 S
• Connection Type: Fnpt
• Regulated: No
• Lead wires: 18" (45 cm) UL 1015, AWG 16, 300V - red and white wires
• Temperature range: 32°F to 150°F (3°C to 65°C)
