Product Description

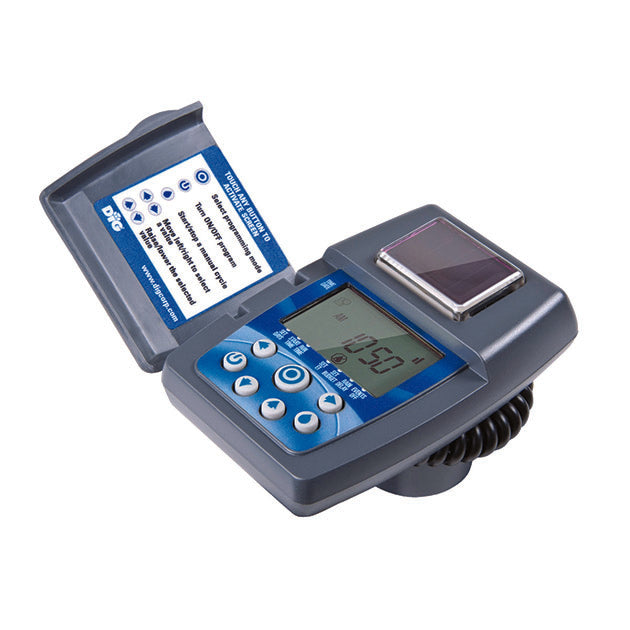

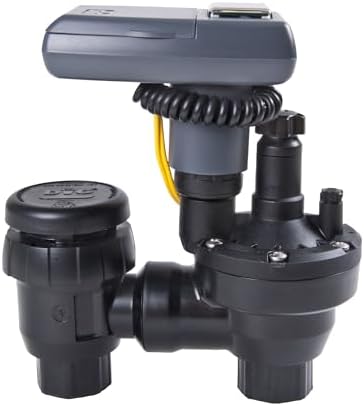

DIG's LEIT 1 is a single-station waterproof solar powered controller with DC solenoid, mounted on an anti-siphon valve, ¾” to 2” inline valve or actuator to convert a brass or plastic manual anti-siphon valve. The LEIT 1 requires no direct sunlight and employs Simple Smart™ programming.
- Single-station waterproof solar powered controller
- DC solenoid
- Mounted on an anti-siphon valve, ¾” to 2” inline valve or actuator to convert a brass or plastic manual anti-siphon valve
Product Highlights
This solar powered controller requires no direct sunlight and employs Simple Smart™ programming which automatically adjusts monthly irrigation schedules.
Product Information
Standard Information
-
Brand: DIG
-
Manufacturer Part Number: LEIT-1
Technical Specifications
-
Power source: ambient light (PVM)
-
Controller power input: 3,000 -100,000+LUX
-

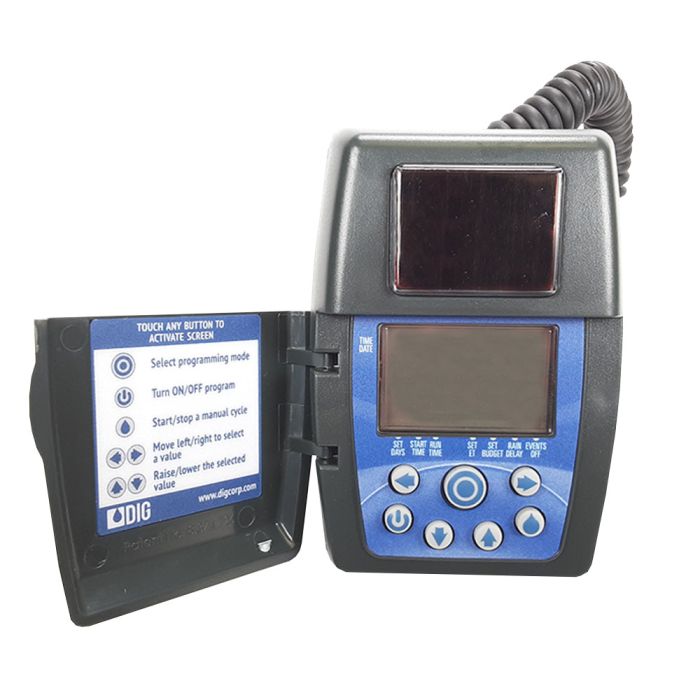

Keypad: Seven keypad buttons with Integrated liquid crystal display
-
Operating pressure: 10-150 PSI (.7-10.5 BAR)
-
Temperature range: 14
F to +130
F (-10
C to +54
C)
-
Solenoid: 7-12 VDC, two-way latching, normally closed
-
Solenoid control orifice: .065" (1.65 mm)
-
Solenoid thread: 11/16"-12 UN male thread
-
Retractable solenoid wire: 8.1” (coiled length when extended, approximately 36")
-
Sensor connection: Normally Closed 6" (15 cm) yellow wire (16 AWG)
-

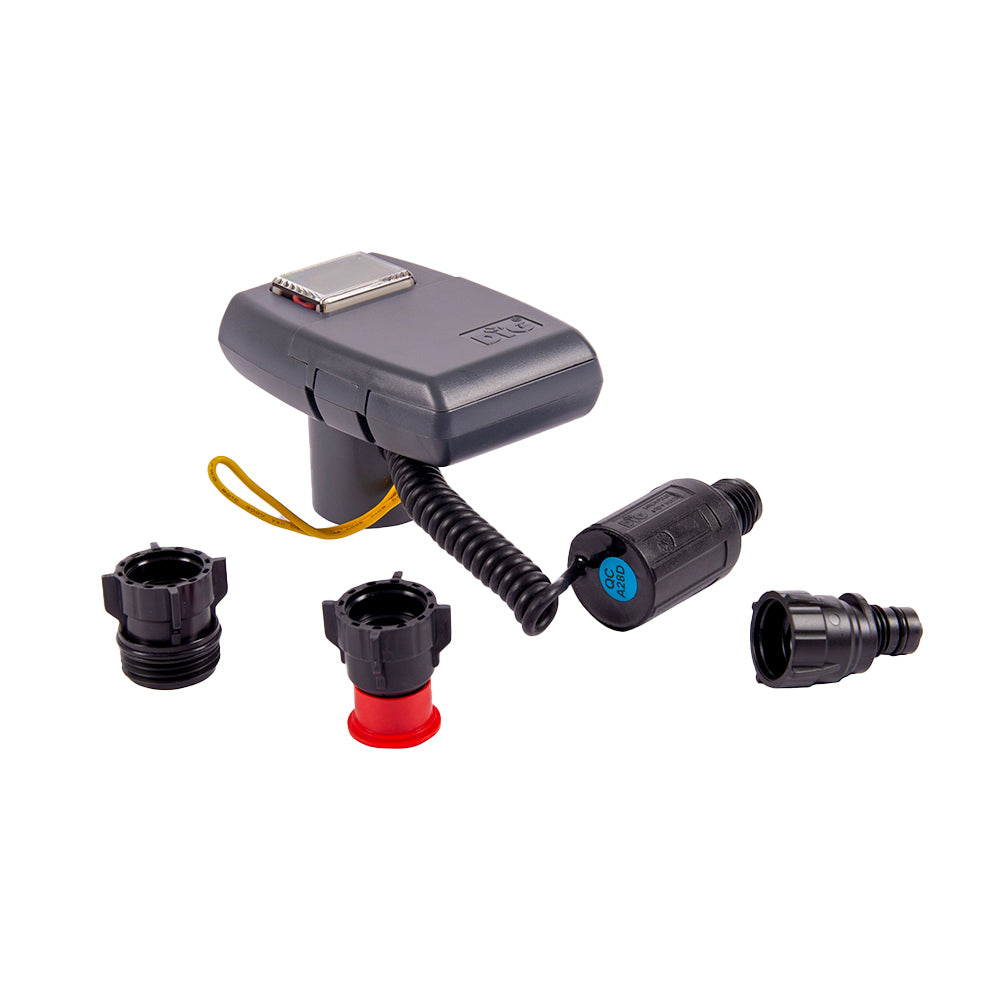

Adapter included: for Rain Bird, Hunter and Toro valves
-
Controller housing: High-impact plastic
-
Solenoid housing: glass-reinforced nylon
-
Plunger & spacer: 430F stainless
-
Plunger rubber cap: EPDM
-
O-ring: Buna-N
-
Brand: DIG
-
Product Type: Solar Powered Controllers
-
Expandability: Fixed
-
Number of Programs: 20
-
Start Times Per Program: 5
-
Max Station Run Time (HRS): 6
-
Outdoor: Yes
-
Sensor Compatible: Rain
-
Rain Sensor Compatible: Yes
-
Application: Light Commercial|Commercial
-
Series: LEIT
-
Zones: 1
-
Enclosure Type: Outdoor
-
Material: Heavy-duty anti-siphon valve
-
Display Type: LED
-
Operating Temperature: 38 Degrees Fahrenheit
