DIELECTRIC DNTT074 Galvanized Steel Dielectric Nipple

Product Description

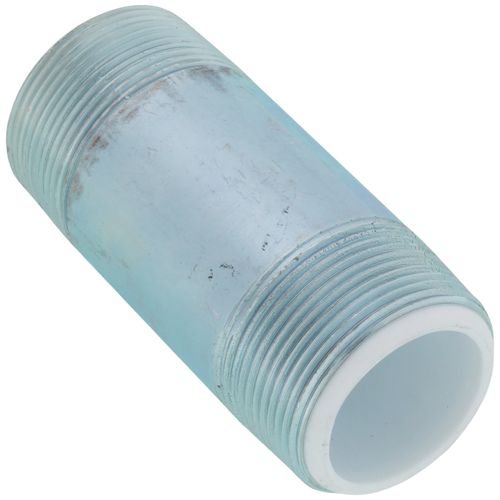

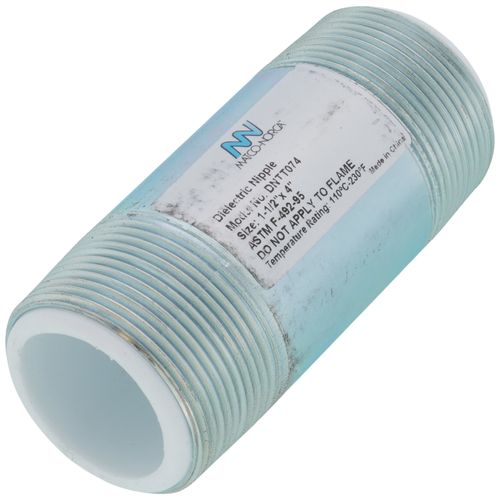

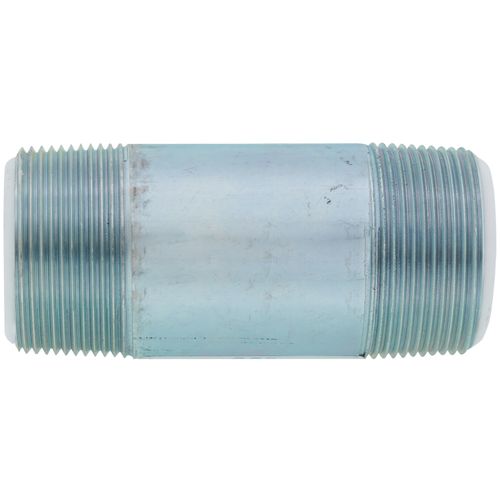

The DIELECTRIC DNTT074 is a galvanized steel dielectric nipple for connecting different metal piping systems. This product is designed to reduce deterioration of pipe connections and manage stray electrical currents. Made from ASTM A-53 galvanized steel, the schedule 40 nipple meets ASTM F-492-95 standards. It includes a PEX insulator for improved performance.

• Constructed from galvanized steel.
• Meets ASTM F-492-95 standards.
• Suitable for connecting dissimilar metal piping.

Product Highlights

This dielectric nipple provides reliable connections, helping to prevent corrosion and electrical issues in piping systems.

Product Information

Standard Information

• Manufacturer: Matco-Norca
• MPN: DNTT074

Technical Specifications

• Material: Galvanized Steel
• Nominal Size: 1-1/2 inches
• Length: 4 inches
• Schedule Rating: SCH 40/STD
• Pressure Rating: 300 psi
• End Style: MNPT
• Temperature Rating: 230 degrees F
• Finish: Galvanized
• Domestic/Import: Import
• Standard: ASTM F-492-95
