Product Description

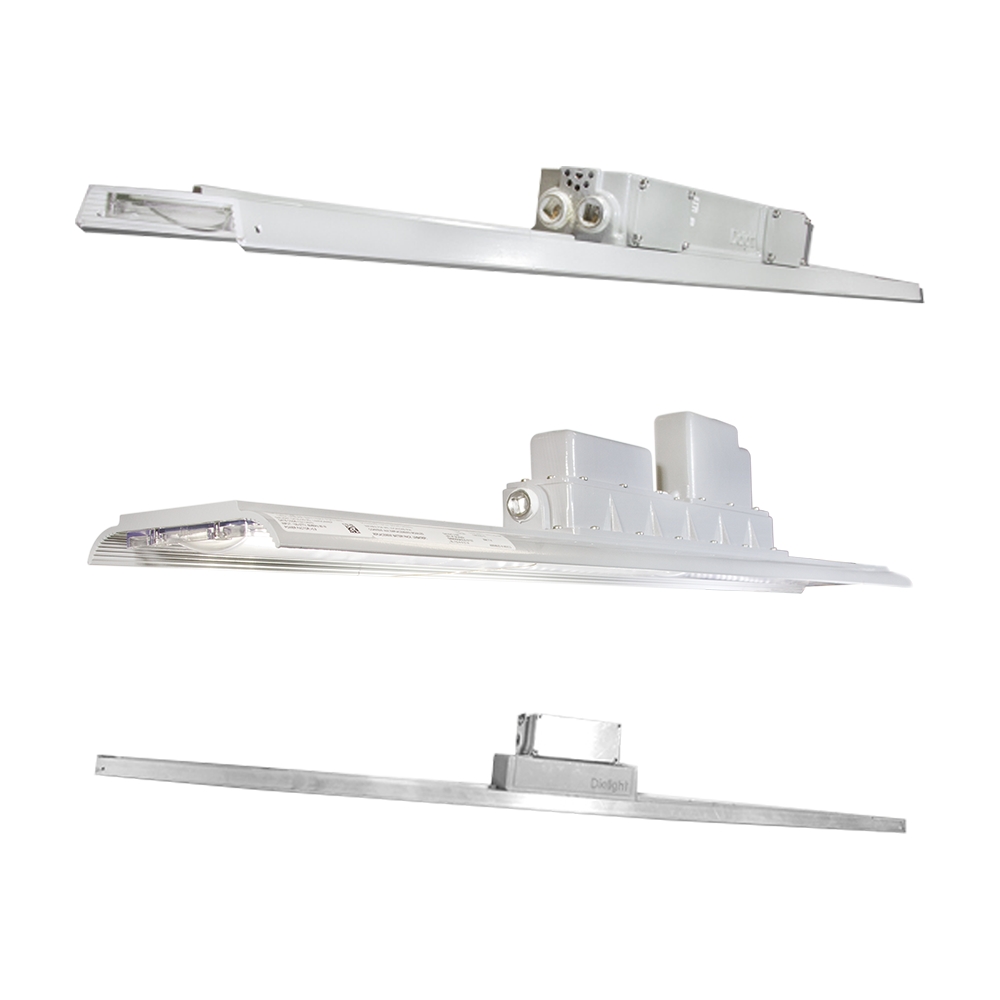

The Dialight LTD3C4M2P is a SafeSite LED linear fixture designed for hazardous locations. This fixture operates with a voltage range of one hundred to two hundred seventy-seven VAC and provides high-efficiency lighting.
- High lumen output of seven thousand two hundred fifty for effective illumination.
- Durable and weather-resistant NEMA 4X/IP66 enclosure.
- Ideal for use in harsh or hazardous environments.
Product Highlights
This linear fixture’s solid state design offers resistance to shock and vibration, making it suitable for demanding applications.
Product Information
Standard Information
-
Manufacturer: Dialight
-
Model Number: LTD3C4M2P
Technical Specifications
-
Application: Hazardous Location Applications
-
Average Life: 5 years
-
Color Rendering Index (CRI): 75
-
Color Temperature: 5000 K
-
Dimensions: 4 ft L
-
Enclosure: NEMA 4X/IP66
-
Housing Finish: Dual Coated
-
Housing Material: Copper-Free Aluminum
-
Lamp Type: LED
-
Lamp Wattage: 66 W
-
Light Color: Cool White
-
Lumens: 7250 Lumens
-
Standards/Approvals: UL 844|1598/A|8750|CSA C22.2 File No.137|Class I Div 2 A B C D/Class I Div 1
-
Voltage Rating: 100 to 277 VAC
