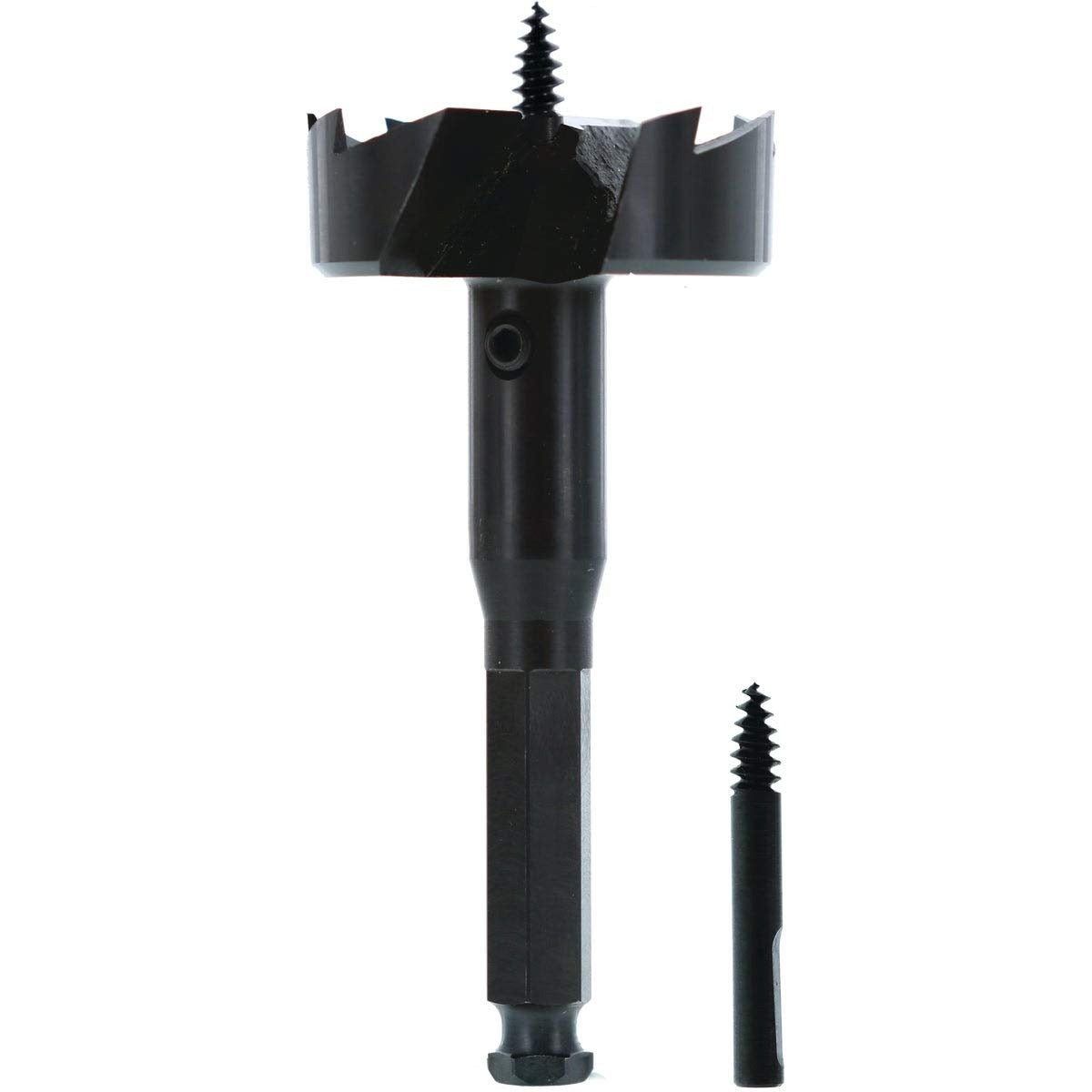

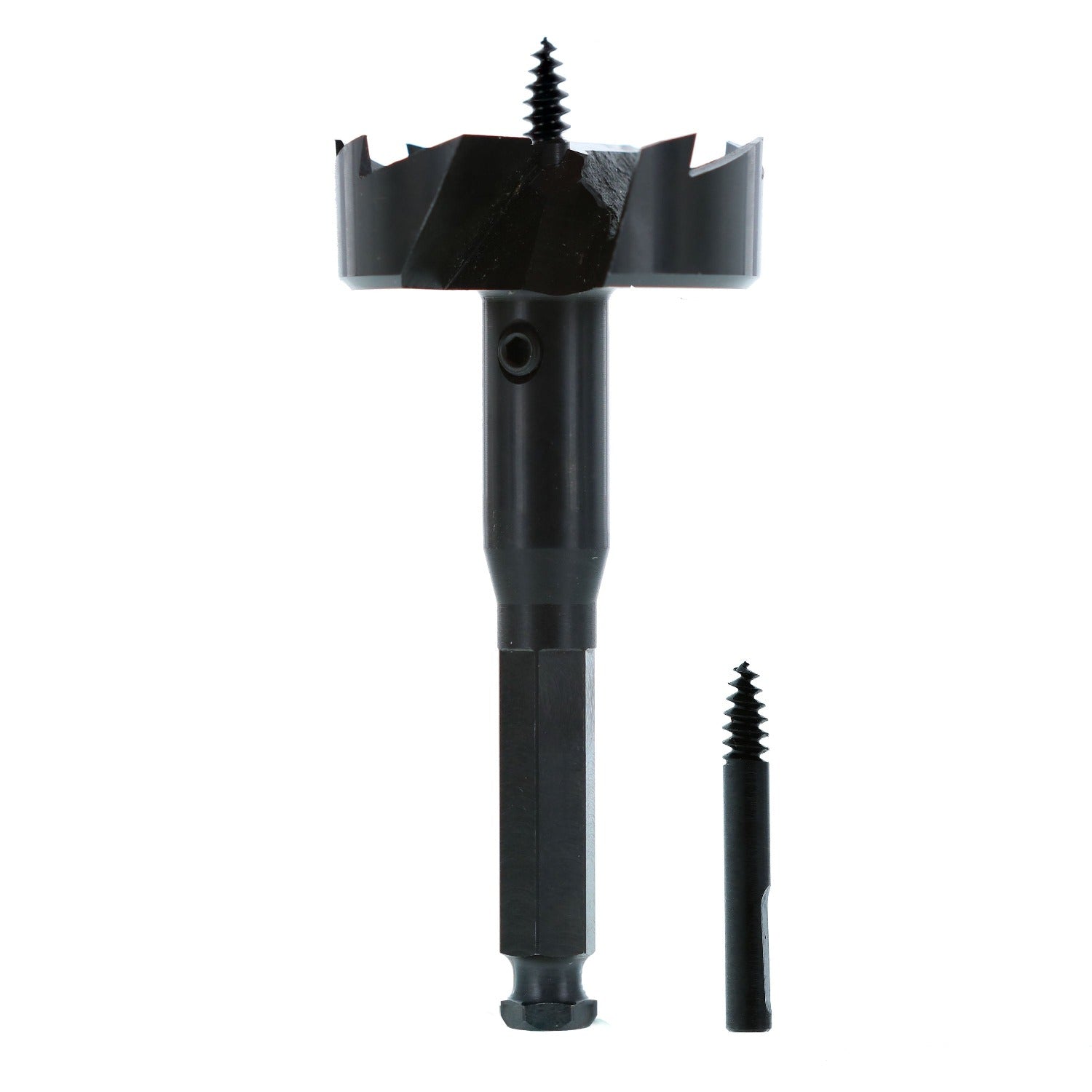

Diablo DSF2125 Self-feed Bit 2-cutter 2-1/8 in

Product Description

The DIABLO DSF2125 is a 2-cutter self-feed bit engineered for fast, efficient hole-making in soft woods and clean construction lumber. Heat-forged from premium steel, it features an aggressive low-thread-count feed screw that reduces pitch build-up and drives faster entry into the material. The 2-cutter head delivers consistent, smooth cuts with minimal resistance and clean finishes. Designed for use with cordless drills, this bit is built for tradespeople who need reliable performance over extended drilling sessions without sacrificing hole quality or tool life.

The DSF2125 is sized at 2-1/8 inches in diameter and 5-1/8 inches in length, making it well-suited for rough-in drilling tasks in residential and light commercial framing applications. Plumbers, electricians, and framers use this bit when running pipe, conduit, or wire through wood framing members. It is optimized for softwood and clean construction lumber and is designed to be driven by standard cordless drills. Each bit ships with a replacement feed screw and an Allen key included in the package.

Key Features

• Heat-forged 2-cutter head for consistent, smooth cuts and extended tool life
• Aggressive low-thread-count feed screw reduces pitch build-up and improves entry speed in softwoods
• Replaceable feed screw with pull-out stop mechanism prevents disengagement when backing out of material
• Engineered for energy-efficient drilling to maximize holes per battery charge on cordless tools
• Includes replacement feed screw and Allen key for field serviceability
• Optimized for framing, rough-in plumbing, and electrical drilling in clean wood

Compatibility

Designed for use with standard cordless drills in framing, plumbing rough-in, and electrical rough-in applications involving softwood and clean construction lumber.

Installation Notes

This bit is installed and serviced by framers, plumbers, and electricians during rough-in phases of construction. Before replacing the feed screw, ensure the drill is powered off and the bit is secured in a stable position. Use the included Allen key to service the replaceable feed screw per the manufacturer procedure. Follow applicable codes such as the IPC or NEC when drilling through framing members for pipe or conduit clearance.
