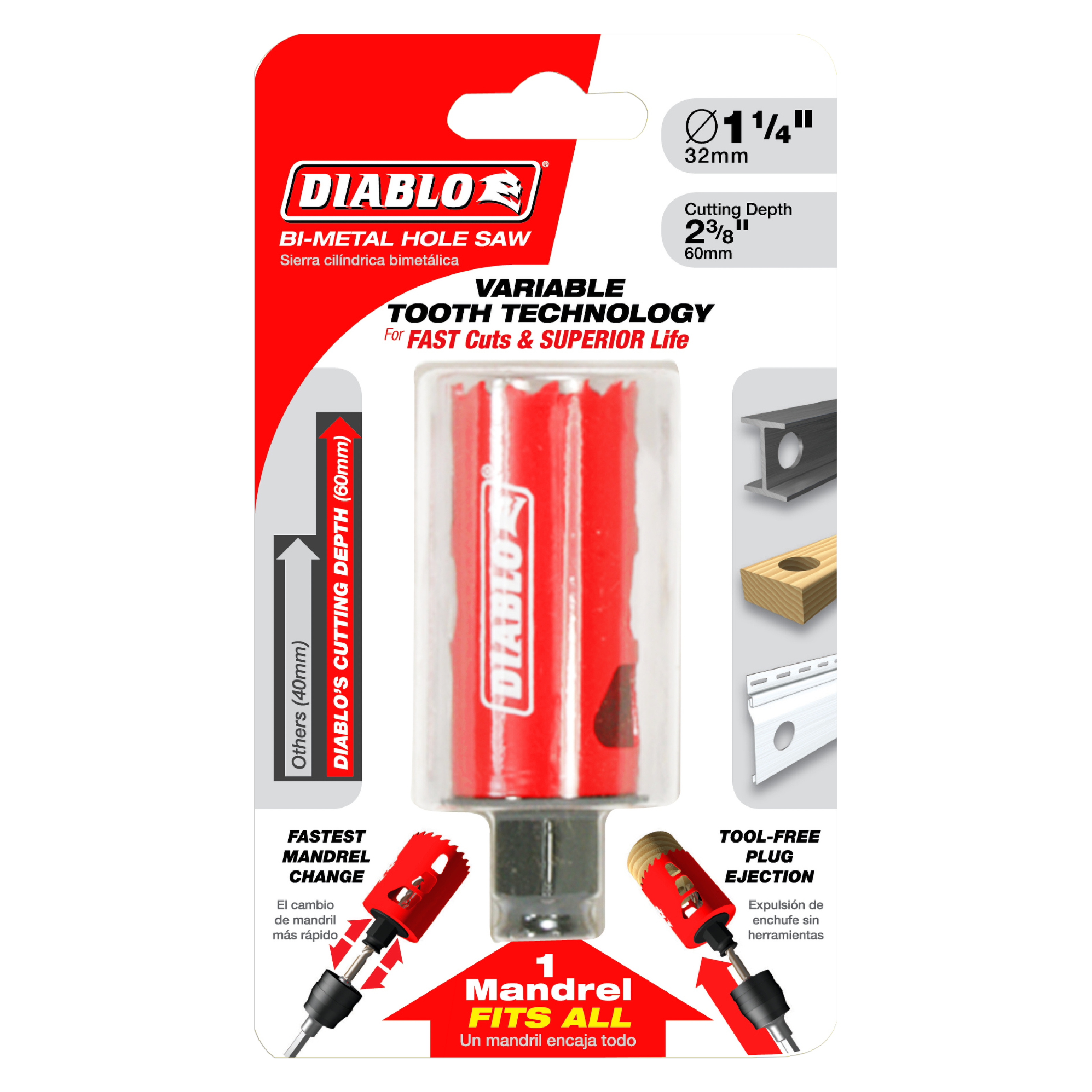

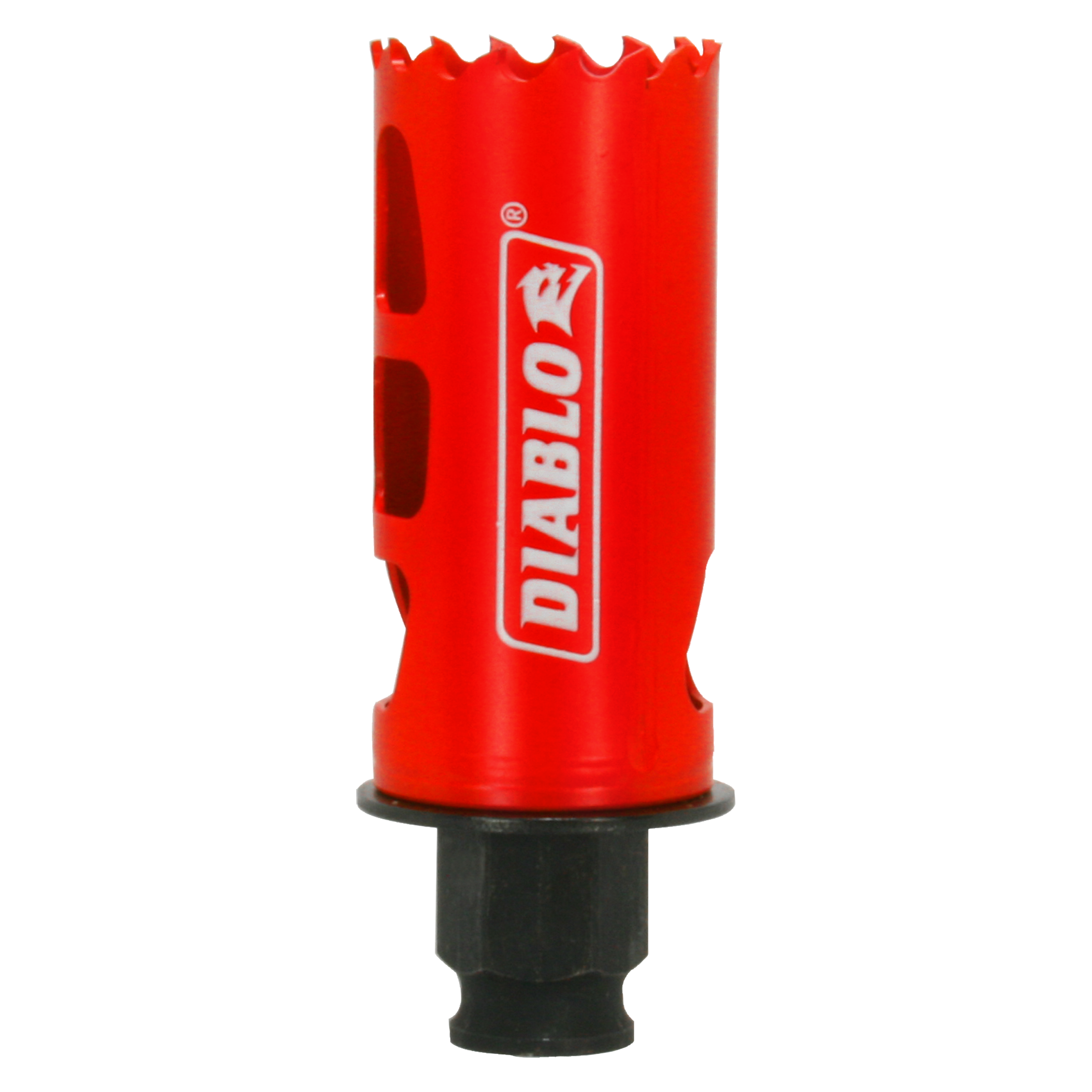

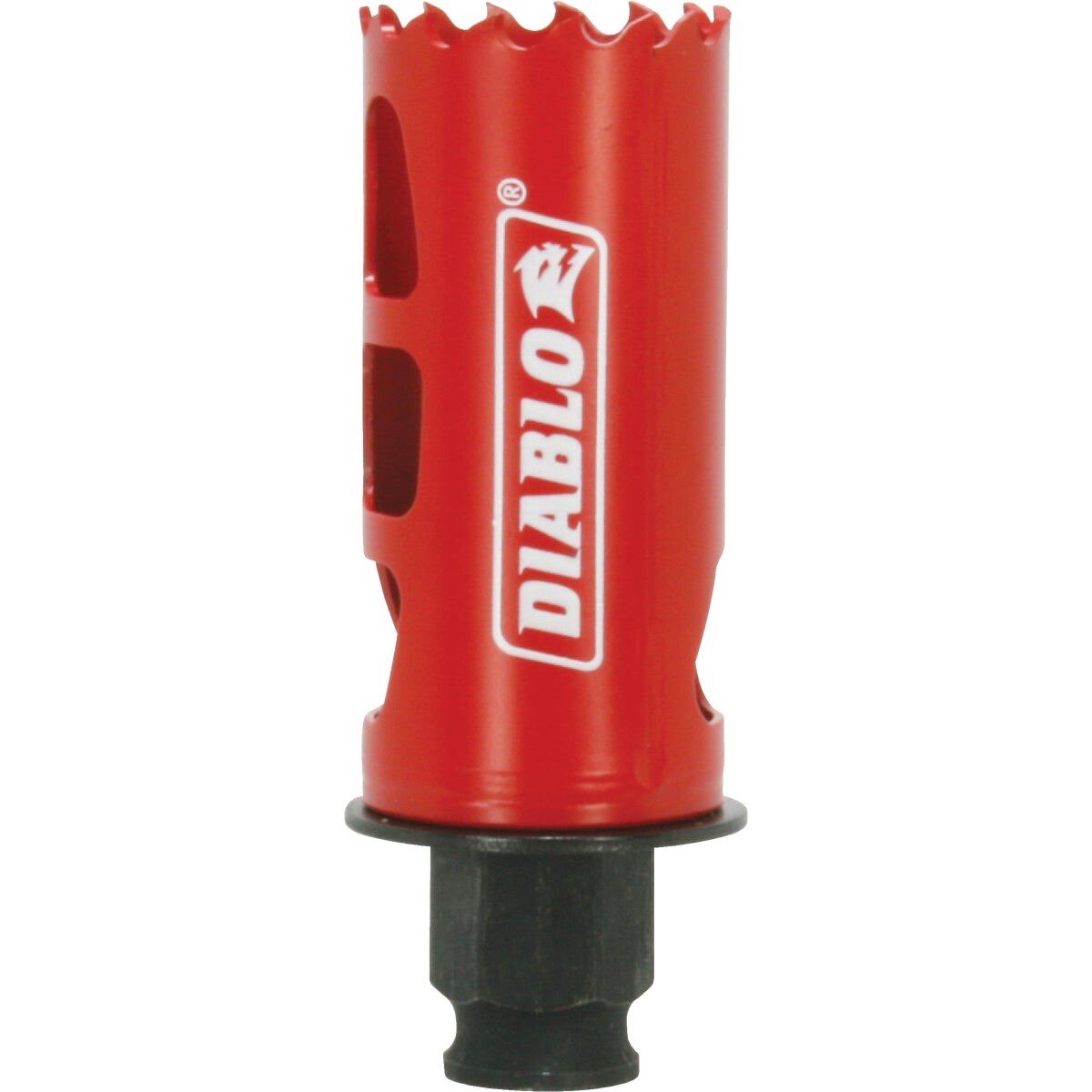

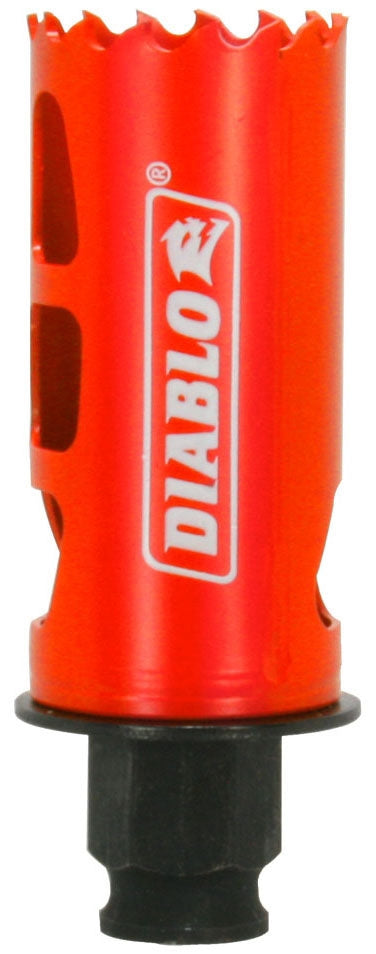

Diablo DHS1250 1-1/4 in. Bi-Metal Hole Saw

Product Description

The Diablo DHS1250 is a high-performance bi-metal hole saw designed for faster cutting and increased productivity. Diablo's hole saw system simplifies the attachment process for efficient mounting. It features ultimate cutting length for deeper holes in a single pass, tool-free plug ejection, and a variable tooth design for faster cuts.

• 60 mm (2-3/8 in.) cutting depth for 40% deeper holes in 1 pass

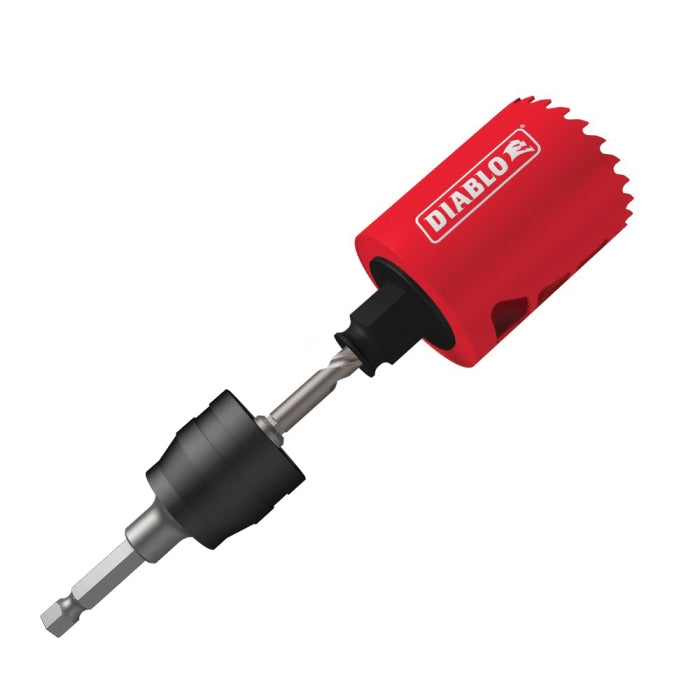

• Fits with Snap-Lock Plus mandrel system for quick and easy changes
• Variable Tooth Design provides faster cuts with less vibration

Product Highlights

This hole saw is ideal for drilling wood, plastic, aluminum, metal, and stainless steel.

Product Information

Standard Information

• Brand: DIABLO
• Manufacturer Part Number: DHS1250
• Country of Origin: CN

Technical Specifications

• MPN: DHS1250
• Brand: Diablo
• Manufacturer: Freud and Diablo
• Applicable Materials: Wood, Plastic, Aluminum, Metal and Stainless Steel
• Cutting Depth: 2-3/8 in
• Overall Length: 2-3/8 in
• Diameter: 1-1/4 in
• Material: Bi-Metal
• Shank Type: Hex
• Hole Saw Diameter (in): 1-1/4"
• Blade Material: Bi-Metal
• Cut Material: Wood, Plastic, Aluminum, Metal, Stainless Steel
• Type: Variable Pitch
• Minimum Chuck Size: 3/8 in
• Drilling Depth (In): 2.375
• Minimum Chuck Size Required: 3/8 in
• Unit Length (in.): 2-3/8 in.
• Shank Diameter: 3/8 in
• Hole Diameter: 1-1/4 in
• Arbor Type: Hole Saw
• Shank Shape: Hex
• Pitch Pattern: Variable
• Manufacturer Name: DIABLO
• Model Number: DHS1250
• Base Model Number: DHS1250
