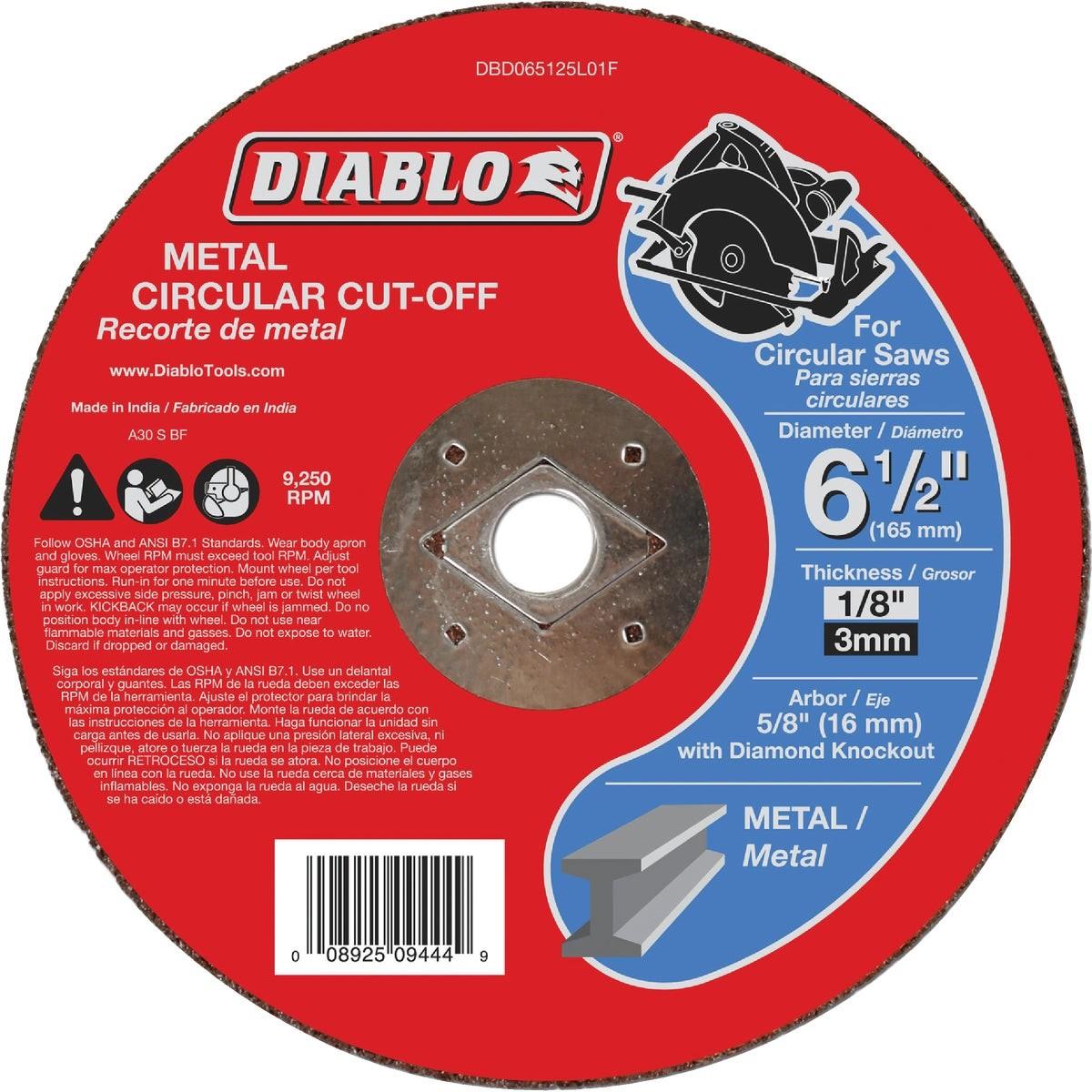

Diablo DBD065125L01F Type 1 Metal Cut-off Wheel

Product Description

The DIABLO DBD065125L01F is a Type 1 flat cut-off wheel engineered for fast, clean cutting in metal fabrication and service work. It measures 6.5 inches in diameter, 0.125 inches thick, with a 0.625-inch arbor bore. The wheel is built with a premium aluminum oxide abrasive blend formulated to balance aggressive material removal with extended wheel life. At 0.377 pounds, it is lightweight enough for sustained use on angle grinders. It is suited for sheet metal work, structural steel, stainless steel, and cast iron cutting tasks on the job site or in the shop.

This cut-off wheel is designed for use in metal cutting applications across mechanical, fabrication, and maintenance trades. Typical use cases include cutting pipe, bar stock, angle iron, sheet metal, and stainless steel components. It fits standard 6.5-inch angle grinders and cut-off tools with a 0.625-inch arbor. The aluminum oxide formulation performs across a broad range of ferrous metals, making it a general-purpose option for HVAC installers, pipefitters, ironworkers, and general maintenance technicians who require consistent, repeatable cuts.

Key Features

• Type 1 flat profile for straight, plunge, and cut-off applications
• Premium aluminum oxide abrasive blend for fast material removal and long cutting life
• 6.5-inch diameter with 0.125-inch thickness for minimal kerf and reduced material loss
• 0.625-inch arbor bore fits standard angle grinders and cut-off tools
• Compatible with steel, stainless steel, cast iron, and sheet metal
• Lightweight at 0.377 pounds for reduced operator fatigue during extended use

Compatibility

Designed for use with 6.5-inch angle grinders and cut-off tools equipped with a 0.625-inch arbor. Suitable for cutting steel, stainless steel, cast iron, and sheet metal.

Installation Notes

Install and operate this wheel using a grinder rated for the wheel diameter and maximum RPM marked on the wheel. Always inspect the wheel for cracks or damage before mounting. Wear appropriate PPE including a face shield, gloves, and hearing protection during operation. Follow ANSI B7.1 and tool manufacturer guidelines for wheel mounting, guard use, and safe operating procedures.

Technical Specifications

• Wheel Type: Type 1 (Flat)
• Diameter: 6.5 inches
• Thickness: 0.125 inches
• Arbor Bore: 0.625 inches
• Abrasive Material: Aluminum Oxide
• Application: Metal (steel, stainless steel, cast iron, sheet metal)
• Weight: 0.377 pounds
• UOM: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: DIABLO
• Manufacturer Part Number: DBD065125L01F
