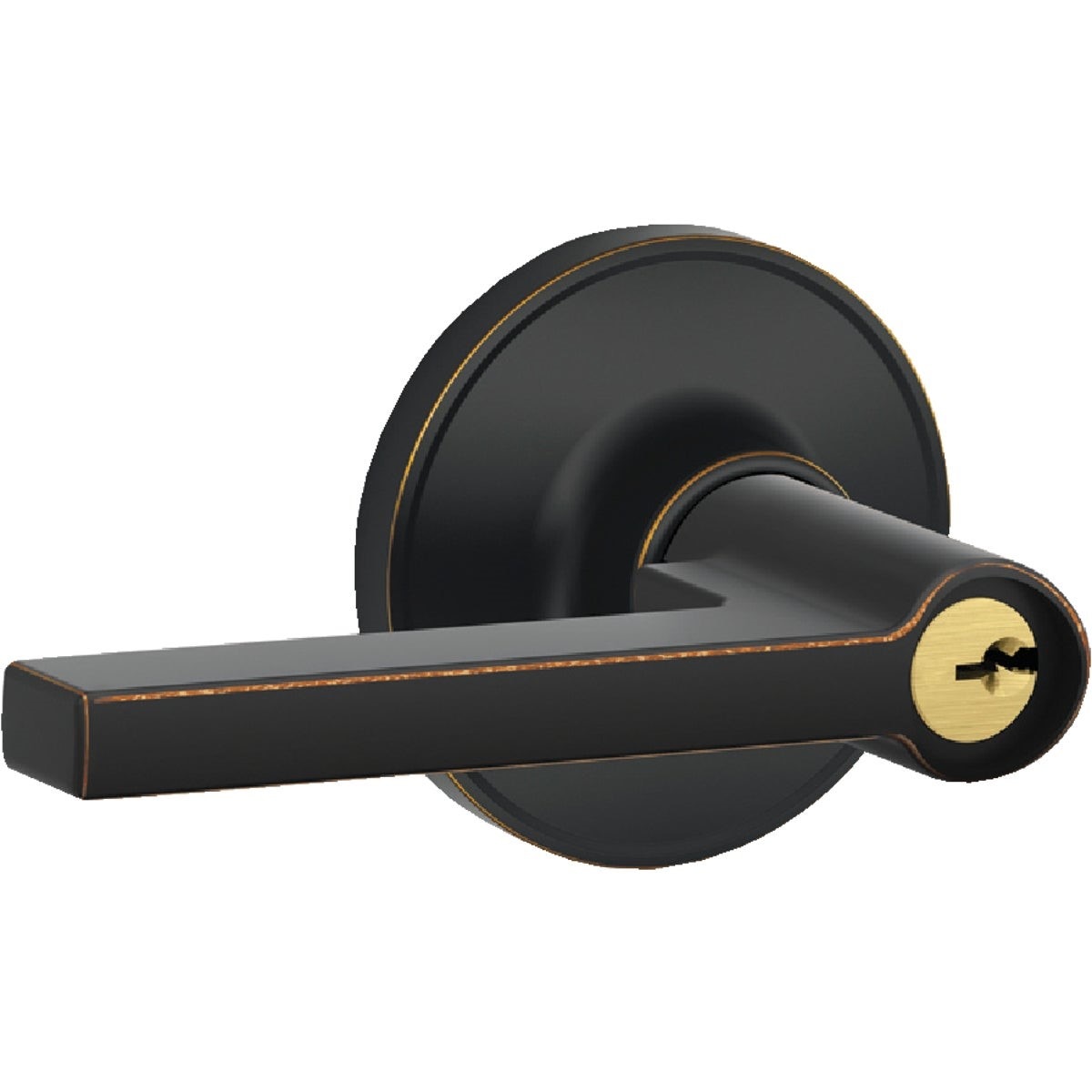

Dexter J54VSOL716 Keyed Entry Door Lever Lockset

Product Description

The DEXTER J54VSOL716 is a keyed entry door lever lockset in an Aged Bronze finish, part of the Solstice series within the J-Series lineup. It is designed for residential entry doors and provides keyed exterior access with an interior turn-button release. The lock features a 5-pin cylinder with a C keyway and ships with 2 keys. The adjustable backset accommodates 2-3/8 inches or 2-3/4 inches, and the lever fits standard doors ranging from 1-3/8 inches to 1-3/4 inches thick. Licensed locksmiths, carpenters, and general contractors typically install this hardware during new construction or door replacement projects.

This lockset is suited for residential entry door applications where a traditional Aged Bronze aesthetic is specified. The Solstice design integrates into standard door prep cutouts. The cylinder can be rekeyed to match existing locks on the same property, making it a practical choice for multi-door keying projects. The unit ships as each, with no additional hardware required for standard installation on prepared doors.

Key Features

• Keyed exterior operation with interior turn-button release for entry door security
• Adjustable backset fits 2-3/8 inch or 2-3/4 inch door prep
• Fits standard door thickness from 1-3/8 inches to 1-3/4 inches
• 5-pin cylinder with C keyway; includes 2 keys and supports rekeying
• ANSI Grade 3 security and performance rating
• Lifetime mechanical warranty and 5-year finish warranty

Compatibility

Designed for standard residential entry doors with a thickness of 1-3/8 inches to 1-3/4 inches and a backset of 2-3/8 inches or 2-3/4 inches; compatible with standard door bore prep.

Installation Notes

Installation is typically performed by a carpenter, general contractor, or licensed locksmith. Ensure the door bore and latch prep match the hardware before installation. Follow local building codes and manufacturer instructions when mounting lever hardware on exterior entry doors. The cylinder can be rekeyed using standard C keyway tools without replacing the entire lockset.

Technical Specifications

• Finish: Aged Bronze
• Backset: 2-3/8 inches or 2-3/4 inches (adjustable)
• Door Thickness: 1-3/8 inches to 1-3/4 inches
• Cylinder: 5-pin, C keyway
• Keys Included: 2
• Security Rating: ANSI Grade 3
• Mechanical Warranty: Lifetime
• Finish Warranty: 5 years
• Weight: 1.899 pounds
• UPC: 00043156293025

Standard Information

• Brand: DEXTER
• Manufacturer Part Number: J54VSOL716
