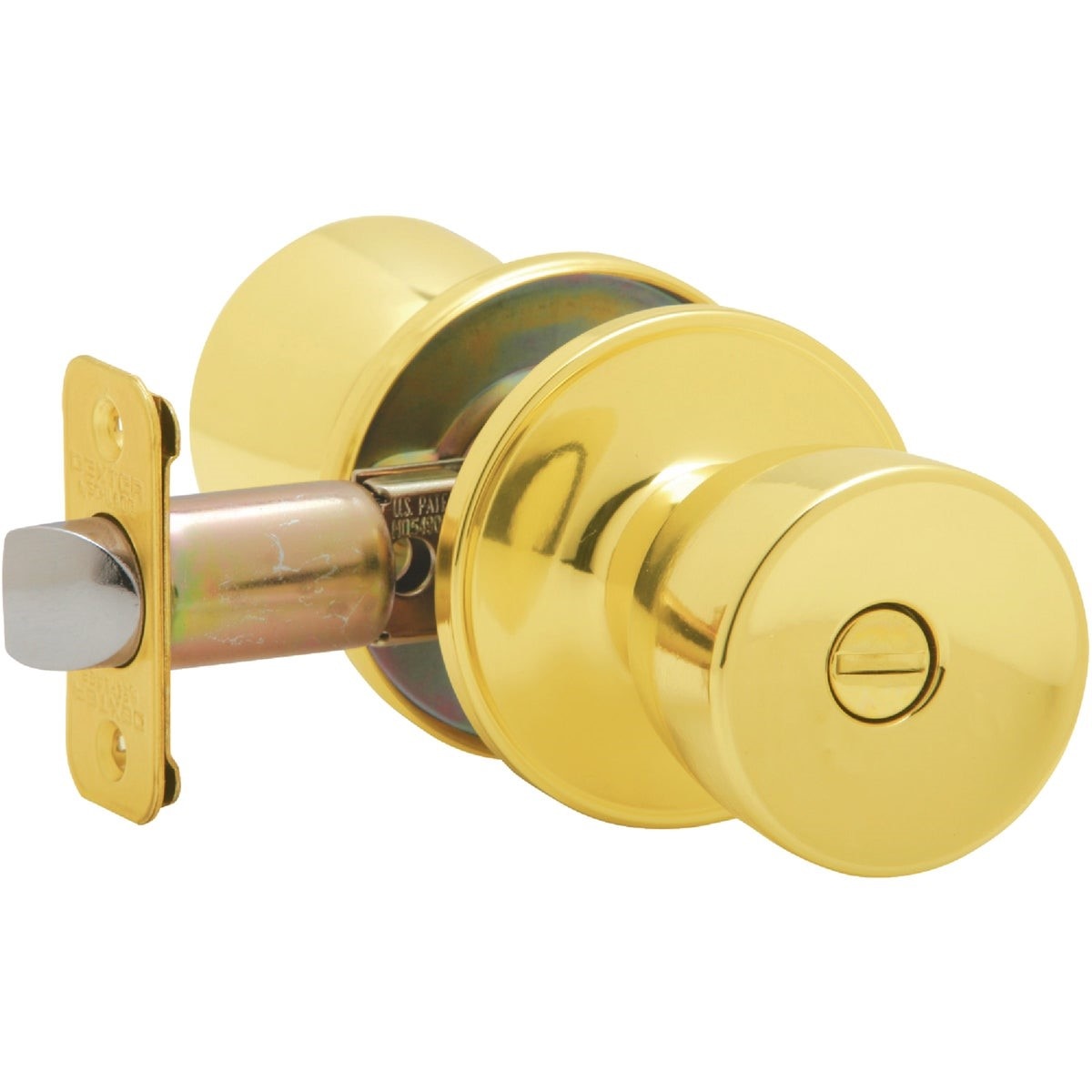

Dexter J40VBYR605 Privacy Door Knob Bright Brass

Product Description

The DEXTER J40VBYR605 is a privacy knob lockset designed for bedroom and bathroom doors in residential applications. The interior knob features a turn button that, when engaged, locks both the interior and exterior knobs simultaneously. The exterior knob accepts an emergency key for access when the interior button is accidentally engaged. The latch is a dual-option spring latch that supports both drive-in and radius faceplates, giving installers flexibility on the job. The adjustable triple-option backset accommodates doors prepped at 2-3/8 inches, 2-3/4 inches, or an intermediate setting, making it compatible with most standard door preparations. Finish is Bright Brass, designated as finish code 605.

This lockset is suited for interior privacy applications in residential new construction and remodel work. It is a common specification for bedroom and bathroom doors where one-sided locking with emergency egress access is required. The adjustable backset and dual faceplate options reduce the need for job-site modification, fitting standard door preps without special boring. Residential locksmiths, finish carpenters, and general contractors routinely install this type of hardware during door hardware rough-in or finish trim stages.

Key Features

• Turn-button interior lock engages both knobs simultaneously for privacy
• Emergency key access on exterior knob for accidental lockout situations
• Dual-option spring latch supports drive-in and radius faceplates
• Adjustable triple-option backset fits 2-3/8 inches and 2-3/4 inches standard door preps
• 1/4 inch radius full-lip strike plate included
• Bright Brass finish (605) with 25-year mechanical warranty and 5-year finish warranty
• ANSI Grade 3 rated for security and performance

Compatibility

Designed for standard residential interior door preparations. Fits doors prepped for 2-3/8 inch or 2-3/4 inch backsets. Suitable for bedroom and bathroom doors requiring a privacy function with emergency egress capability.

Installation Notes

Installation is typically performed by a finish carpenter, residential locksmith, or general contractor using a screwdriver and door hardware installation kit. Verify the door bore diameter and backset measurement before installation to select the correct latch and faceplate configuration. No electrical power shutoff is required for this mechanical hardware. Follow local building codes for egress and privacy hardware requirements on bedroom and bathroom doors.

Technical Specifications

• Backset (Adjustable): 2-3/8 inches to 2-3/4 inches
• Strike: 1/4 inch radius full-lip
• Finish: Bright Brass (605)
• Security Rating: ANSI Grade 3
• Mechanical Warranty: 25 years
• Finish Warranty: 5 years
• Weight: 1.158 pounds
• Sold As: Each

Standard Information

• Brand: DEXTER
• Manufacturer Part Number: J40VBYR605
