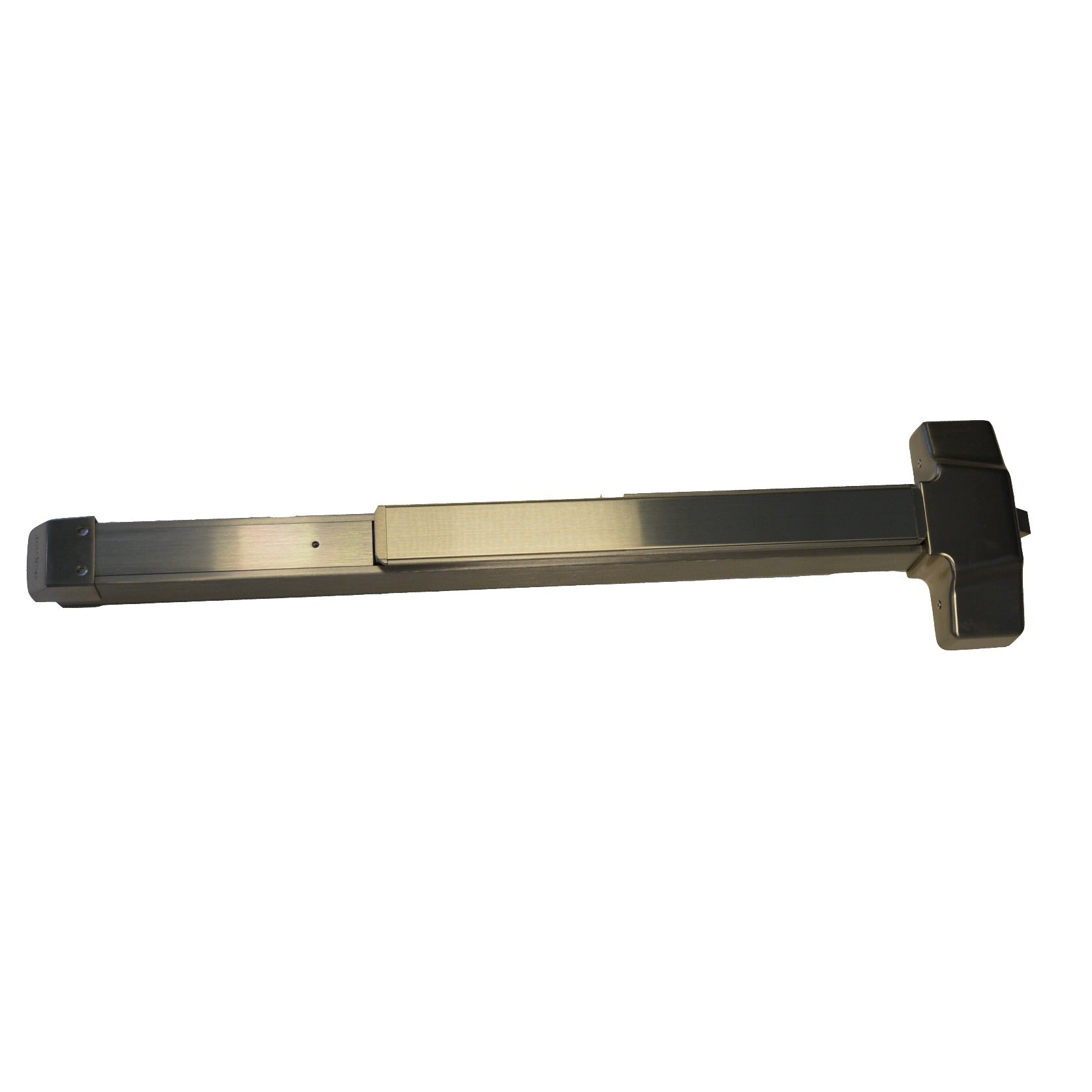

Dexter Commercial ED1000REO3FT630 Rim Exit Device 3 Ft

Product Description

The DEXTER COMMERCIAL ED1000REO3FT630 is a Grade 1 rim exit device designed for commercial door applications requiring reliable, code-compliant egress hardware. Built to a 3-foot door width and finished in satin stainless steel (630 finish), this exit-only device provides a panic-bar push action that releases the latch without allowing entry from the outside. At 12 pounds and constructed to Grade 1 standards, it is engineered for high-traffic commercial openings where durability and code compliance are non-negotiable. Licensed locksmiths, door hardware installers, and commercial contractors are the primary trades that specify and install this device.

This rim exit device is suited for single commercial doors in schools, offices, retail facilities, and light industrial buildings where exit-only function is required. The exit-only trim configuration means no outside lever or key cylinder is included, making it appropriate for stairwell doors, secondary egress doors, and utility room exits where re-entry is not permitted. The satin stainless steel finish provides corrosion resistance in moderate-humidity environments.

Key Features

• Grade 1 construction for high-traffic commercial door applications
• Rim-mount exit device — installs directly to the door face without mortising
• Exit-only function — no outside access hardware included
• Satin stainless steel (630) finish for corrosion resistance
• 3-foot (35 inch) crossbar length for standard single commercial door widths
• Sold individually; available in case quantities of 3

Compatibility

Designed as an OEM-style replacement or new-installation rim exit device for standard 3-foot commercial single doors requiring Grade 1 egress hardware.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with NFPA 101 Life Safety Code and applicable local building codes governing egress hardware. Ensure the door is properly aligned and the latch bolt engages the strike squarely before securing all fasteners. Verify that the exit device operation meets the required unlatching force specified by the applicable fire and life safety codes for the occupancy type. Do not modify the crossbar mechanism or block the latch travel.
