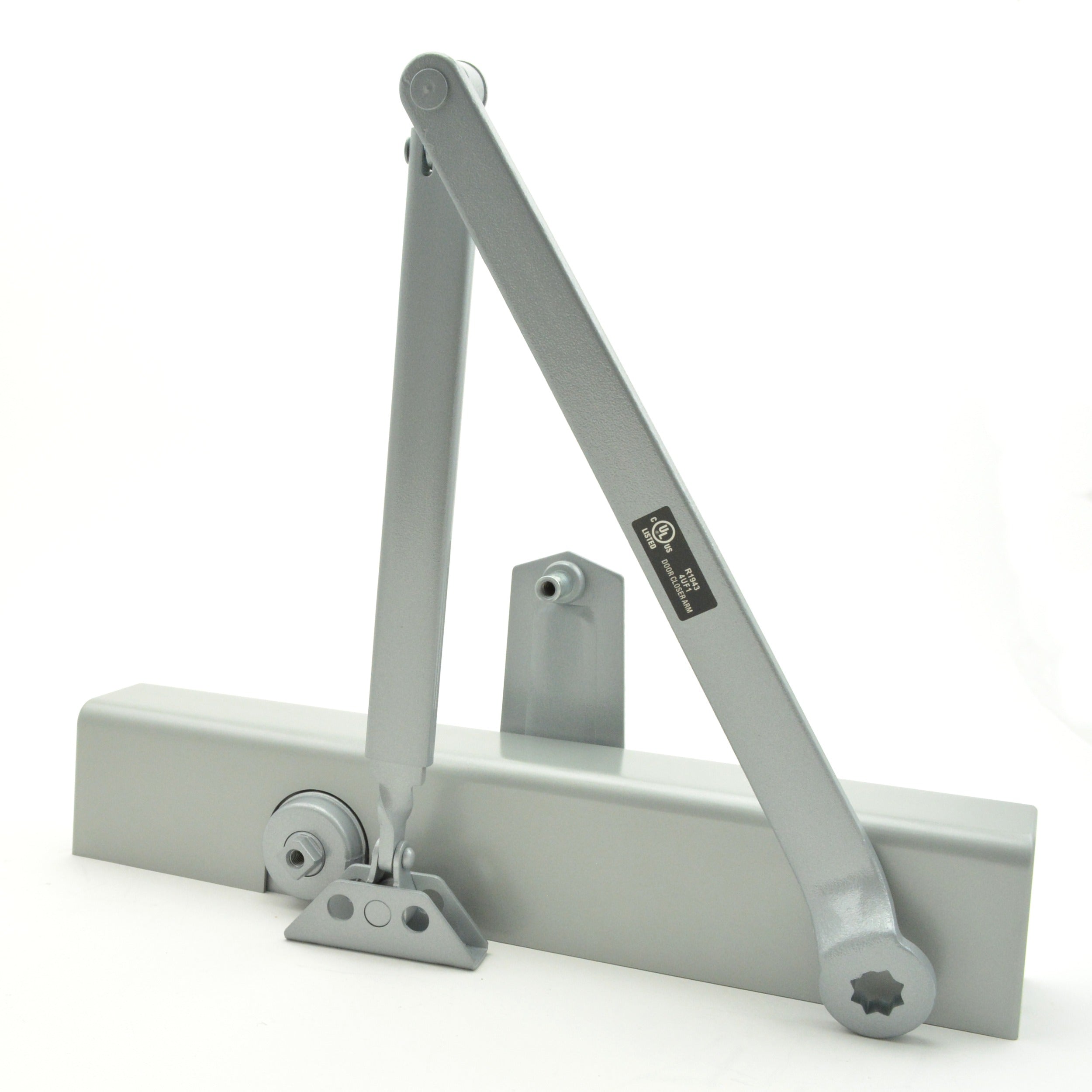

Dexter Commercial DCM1000STDSMRWPA689 Door Closer

Product Description

The DEXTER COMMERCIAL DCM1000STDSMRWPA689 is a medium duty surface mount door closer designed for commercial door applications where reliable, controlled closing is required. It ships with a slim cover and regular arm in an aluminum finish. This unit mounts directly to the door face and frame, making it suitable for new installations and retrofit projects on standard commercial door assemblies. Locksmiths, general contractors, and commercial door hardware installers are the primary trades who specify and install this closer. The body measures 13.8 inches in length, 4.3 inches in width, and 2.9 inches in height, fitting standard door preparations without modification.

This door closer is appropriate for medium duty commercial applications such as office entryways, interior corridor doors, and light commercial storefronts. The surface mount configuration allows installation without mortising or core drilling into the door or frame, reducing labor time on standard steel or wood commercial door sets. The slim cover profile keeps the installed appearance clean and low-profile, which is common in office and retail environments. The aluminum finish coordinates with standard commercial hardware finishes already common in those settings.

Key Features

• Medium duty rating suitable for light to moderate traffic commercial doors
• Surface mount design requires no mortising or core drilling
• Slim cover included for a lower-profile installed appearance
• Regular arm included for standard parallel or top jamb mount configurations
• Aluminum finish compatible with common commercial hardware finishes
• Compact body at 13.8 inches x 4.3 inches x 2.9 inches

Compatibility

Designed as an OEM-style surface mount door closer replacement or new installation unit for standard commercial door frames and doors in medium duty applications.

Installation Notes

Installation is performed by a licensed locksmith or qualified commercial door hardware technician. Ensure the door and frame are properly aligned and that all existing hardware is removed or confirmed compatible before mounting. Follow the template provided by the manufacturer for hole layout to achieve correct arm geometry and closing speed. Local building codes and ADA requirements may govern closer sizing, backcheck, and closing force settings on accessible openings.
