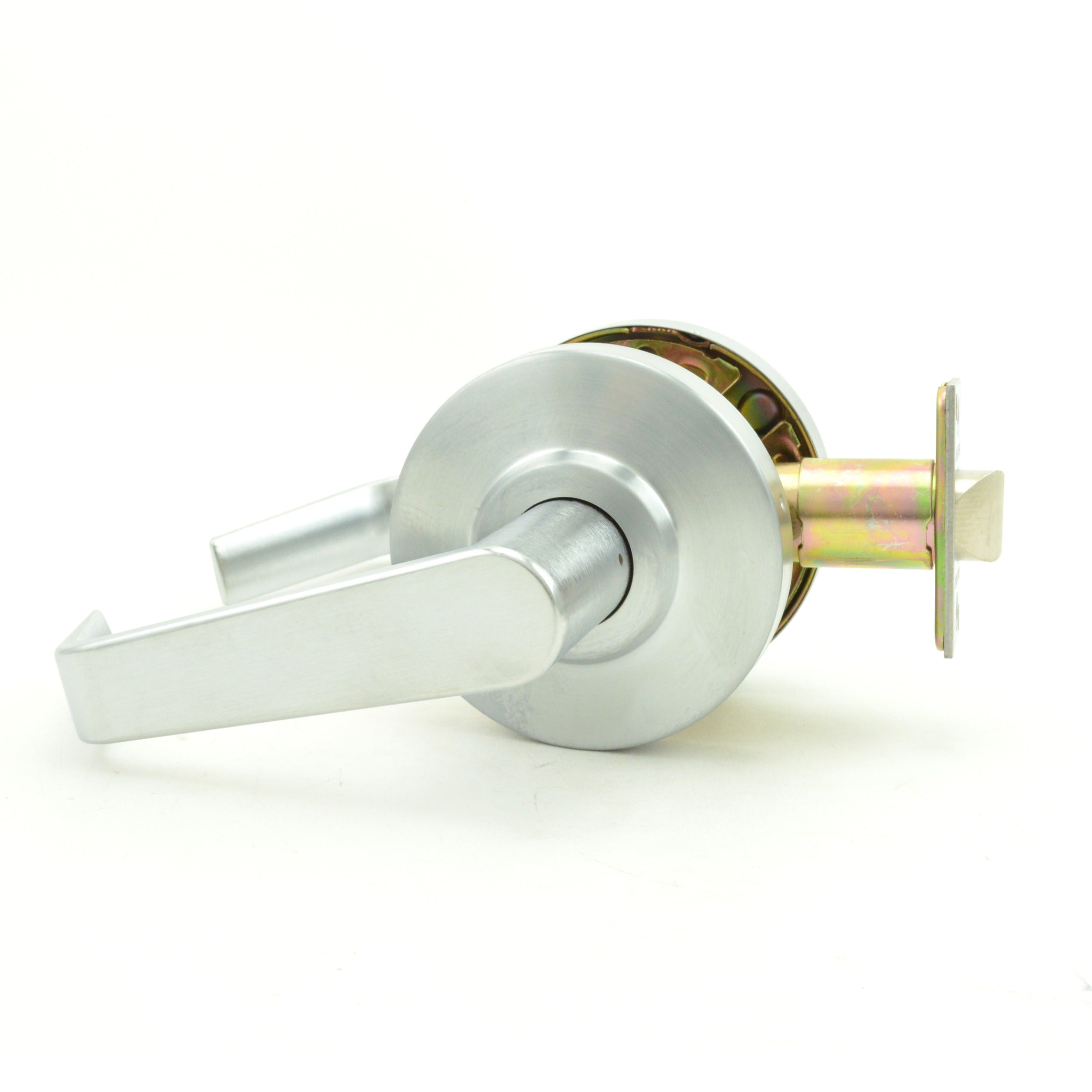

Dexter Commercial C2000PASSR626 Passage Cylindrical Lock

Product Description

The DEXTER COMMERCIAL C2000PASSR626 is a Grade 2 passage cylindrical lock designed for commercial door hardware applications. It features a non-clutching regular lever and ships with a 2-3/4 inch backset and an ANSI-standard strike plate. The satin chrome finish provides a clean, professional appearance suited to interior commercial doors. This lock installs in standard cylindrical bore preparations and is intended for passage function, meaning no keying or locking mechanism is present — the lever operates freely from both sides. Licensed locksmiths and commercial door hardware installers are the primary trade for this product.

The C2000PASSR626 is suited for interior passage doors in light commercial and institutional settings where a Grade 2 cylindrical lock meets the access control requirements. Typical applications include office interiors, hallways, and storage rooms where free passage is needed without a locking function. The ANSI strike and 2-3/4 inch backset make it compatible with standard commercial door frame preparations.

Key Features

• Grade 2 cylindrical lock construction for light commercial use
• Passage function — non-clutching lever operates freely from both sides
• 2-3/4 inch backset with included ANSI-standard strike plate
• Satin chrome finish for a clean, low-maintenance appearance
• Standard cylindrical bore installation — no special machining required

Compatibility

Designed as an OEM-style replacement or new-installation cylindrical passage lock for standard commercial door preparations accepting a Grade 2 cylindrical lockset with a 2-3/4 inch backset.

Installation Notes

Installation is typically performed by a licensed locksmith or qualified commercial door hardware technician. Verify the door bore diameter and backset measurement before installation to confirm fitment. No power source is required for this mechanical lock. Follow local building code requirements and ADA lever accessibility guidelines when selecting and positioning hardware.
