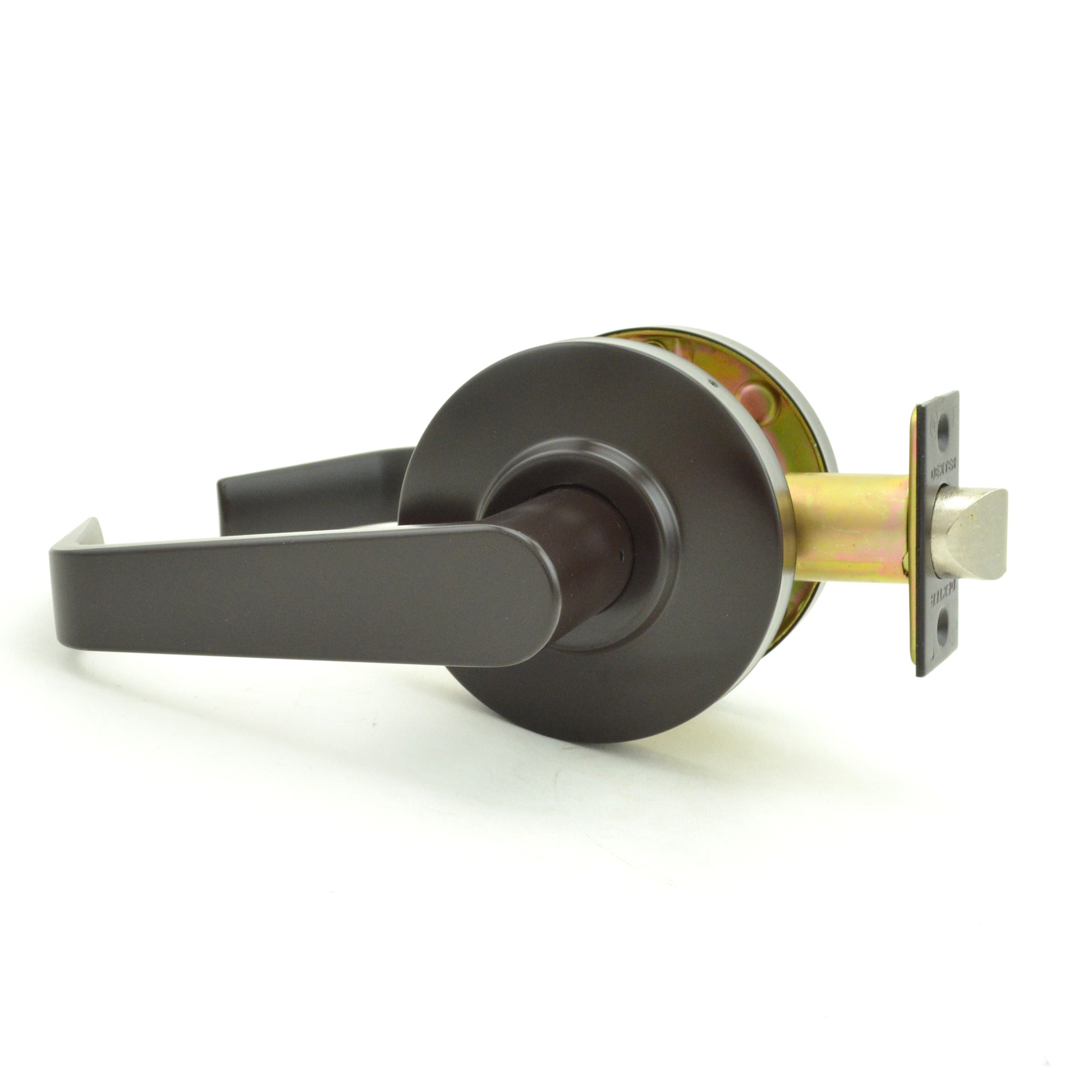

Dexter Commercial C2000PASSR613 Passage Lock Grade 2

Product Description

The DEXTER COMMERCIAL C2000PASSR613 is a Grade 2 passage cylindrical lock designed for commercial door hardware applications. It features a non-clutching regular lever and ships with a 2-3/4 inch backset and an ANSI-standard strike plate. The oil rubbed bronze finish suits interior commercial doors where a consistent, traditional aesthetic is required. This lock carries no latch or locking function — passage locks allow free movement in both directions, making them appropriate for hallways, closets, and open common areas. Installation is handled by licensed locksmiths or commercial door hardware technicians.

The C2000PASSR613 is intended for interior commercial doors in light-to-moderate traffic environments. Its Grade 2 rating positions it between residential-grade and heavy-duty Grade 1 hardware, making it a cost-effective fit for offices, storage rooms, and non-secured interior passages in commercial buildings. The included ANSI strike simplifies rough-in and ensures compatibility with standard door prep. The non-clutching lever design means no torque resistance is built into the lever return mechanism.

Key Features

• Grade 2 cylindrical lock construction suitable for commercial interior doors
• Passage function — non-locking, free rotation in both directions
• Non-clutching regular lever for straightforward operation
• 2-3/4 inch backset compatible with standard commercial door prep
• Includes ANSI-standard strike plate for easy installation
• Oil rubbed bronze finish for consistent interior hardware aesthetics

Compatibility

Designed as an OEM-style replacement or new-installation cylindrical passage lock for standard commercial interior doors prepared for cylindrical lock hardware with a 2-3/4 inch backset and ANSI strike routing.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Confirm door thickness and bore dimensions match the lock specifications before installation. Follow all applicable building codes and manufacturer instructions for proper strike plate mortising and door prep alignment. Ensure the door is fully supported and stationary during installation to prevent misalignment of the latch and strike.
