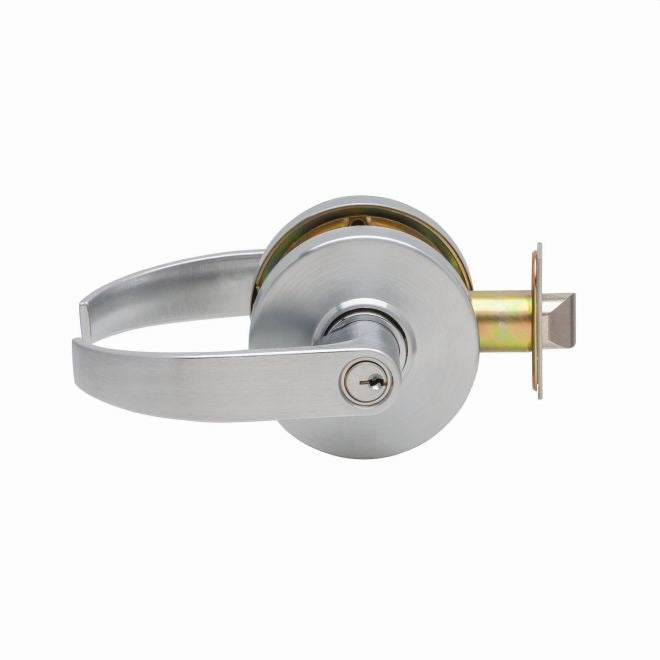

Dexter Commercial C1000ENTRC626KDC Grade 1 Cylindrical Lock

Product Description

The DEXTER COMMERCIAL C1000ENTRC626KDC is a Grade 1 clutching cylindrical lock designed for entry and office applications in commercial settings. It features a curved lever trim and ships with an ANSI strike plate in a satin chrome (626) finish. The 2-3/4 inch backset accommodates standard commercial door preparations, and the 1-1/8 inch face fits most typical mortised strike pockets. Licensed locksmiths, commercial door hardware installers, and facilities maintenance technicians are the primary trades that specify and install this hardware. The clutching lever mechanism provides tamper resistance, preventing forced lever rotation from damaging the internal lock chassis.

This cylindrical lock is suited for commercial entry doors and private office doors where Grade 1 durability is required. It is appropriate for light commercial and mid-range commercial construction where ANSI Grade 1 hardware is specified by code or the project architect. The C keyway governs key blanks and master key system compatibility. The satin chrome finish coordinates with standard commercial door hardware suites. Sold as a single unit, this lock is packaged in cases of four for multi-door projects.

Key Features

• ANSI Grade 1 rated for commercial-duty cycle and security requirements
• Clutching curved lever prevents torque damage from forced rotation attempts
• 2-3/4 inch backset fits standard commercial door bore preparations
• 1-1/8 inch face dimensions compatible with typical ANSI strike mortises
• Includes ANSI strike plate for complete installation out of the box
• Satin chrome (626) finish suitable for coordinated commercial hardware suites
• C keyway for integration into existing key systems or new master key programs

Compatibility

Designed as an OEM-style replacement or new-installation cylindrical lock for commercial entry and office doors requiring ANSI Grade 1 clutching lever hardware with a 2-3/4 inch backset and C keyway.

Installation Notes

Installation is performed by a licensed locksmith or qualified commercial door hardware technician. Verify door thickness and bore preparation match the lock specifications before installation. Ensure the door is secured open and all related access control or electrical systems are powered down before beginning work. Follow ANSI and local building code requirements for hardware grade and fire-rating compliance on the door assembly.
