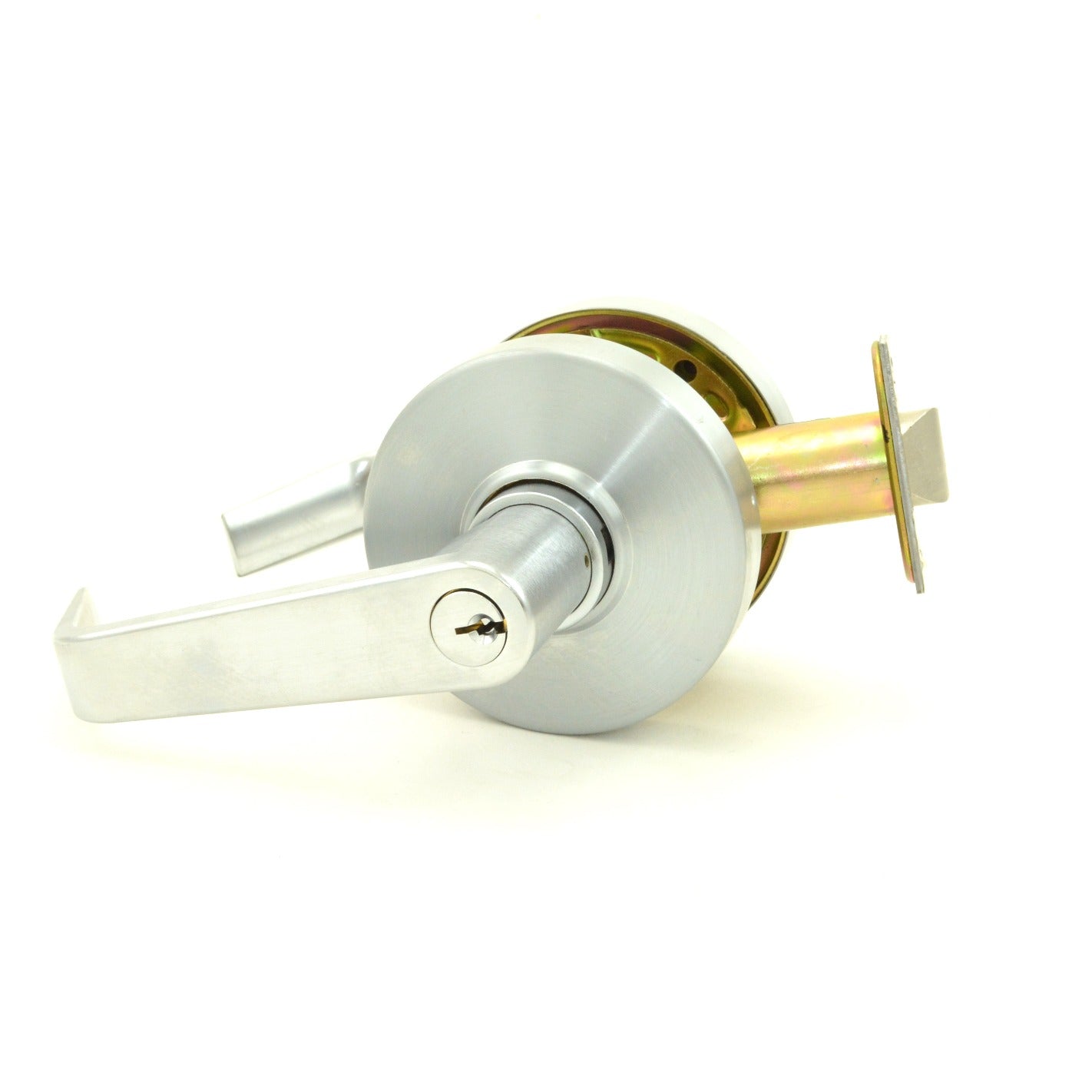

Dexter Commercial C1000CLRMR626KDC Classroom Cylindrical Lock

Product Description

The DEXTER COMMERCIAL C1000CLRMR626KDC is a Grade 1 classroom-function cylindrical lock designed for commercial door hardware applications. It features a regular lever trim with a C keyway and a 2-3/4 inch backset. The face bore accepts a 1-1/8 inch face plate, and the unit ships with an ANSI-standard strike plate. The satin chrome (626) finish meets typical institutional and commercial aesthetic requirements. This lock is rated Grade 1 under ANSI/BHMA standards, making it appropriate for high-cycle commercial installations. It is installed by licensed locksmiths or commercial door hardware technicians on interior doors requiring classroom-function access control.

The C1000CLRMR626KDC is suited for classroom and institutional interiors where a lockable lever set with outside key control and always-free egress from the inside is required. Typical applications include K-12 schools, universities, and municipal or government office buildings. The clutching lever mechanism protects the internal lock components from forced rotation attempts, a standard requirement in educational facility specifications. Installation requires a standard cylindrical lock prep with a 2-1/8 inch cross bore and the specified 1-1/8 inch face bore.

Key Features

• ANSI Grade 1 rated for high-cycle commercial and institutional use
• Classroom function: lever always free from inside, key-controlled lockout from outside
• Clutching lever design resists forced rotation and protects internal mechanism
• C keyway for key control in commercial master-key systems
• 2-3/4 inch backset with 1-1/8 inch face for standard cylindrical door prep
• Includes ANSI strike plate; satin chrome 626 finish

Compatibility

Designed as an OEM-style Grade 1 cylindrical lock replacement or new installation for commercial doors with a standard 2-1/8 inch cross bore, 2-3/4 inch backset, and 1-1/8 inch face bore prep.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Verify door prep dimensions match the 2-3/4 inch backset and 1-1/8 inch face bore before installation. Confirm that the door and frame are properly aligned and that the ANSI strike is correctly mortised to ensure latch engagement. Follow applicable local building codes and ADA lever clearance requirements when selecting mounting height and hardware configuration.
