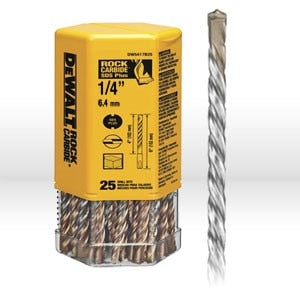

Dewalt DW5416B25 Sds Plus Masonry Drill Bit 25 Pack

Product Description

The DEWALT DW5416B25 is a 25-pack of SDS Plus masonry drill bits built for demanding concrete, block, and masonry drilling applications. Each bit features a rock carbide tip combined with a serrated carbide cutting edge engineered for extended drilling life in hard substrates. The 1/4-inch diameter bit measures 4 inches in overall length with a 2-inch usable flute length. This bit is designed for use in SDS Plus rotary hammer drills and is a standard item for licensed masonry contractors, concrete anchor installers, and general construction tradespeople.

This 25-pack is suited for high-volume anchor setting work on commercial and residential job sites. The improved flute geometry evacuates dust and debris rapidly from the hole, reducing heat buildup and maintaining drilling speed. The bit tip is engineered to start on contact without walking, which improves hole placement accuracy when setting anchor bolts, wedge anchors, sleeve anchors, and similar fasteners in concrete or CMU. Bulk pack quantity supports continuous production work without frequent bit changes.

Key Features

• Rock carbide tip with serrated cutting edge for extended service life in concrete and masonry
• Improved flute design accelerates dust evacuation for faster, cooler drilling
• Self-starting tip geometry reduces bit walk and improves hole placement accuracy
• SDS Plus shank fits standard SDS Plus rotary hammers
• 25-pack quantity supports high-volume anchor installation work
• 1/4-inch diameter x 4-inch overall length per bit

Compatibility

Designed for use with SDS Plus rotary hammer drills. The SDS Plus shank is an industry-standard interface and is not compatible with SDS-Max or standard 3-jaw chuck tools without an adapter.

Installation Notes

Installation should be performed by qualified tradespeople following applicable building codes and anchor manufacturer specifications. Always wear appropriate eye and respiratory protection when drilling into concrete or masonry. Confirm the drill is in hammer-drill mode and that the SDS Plus bit is fully seated and locked in the chuck before operation. Inspect bits for carbide tip damage or shank wear before each use and replace any bit that shows cracking or chipping.

Technical Specifications

• Shank Type: SDS Plus
• Bit Diameter: 1/4 inches
• Overall Length: 4 inches
• Usable Flute Length: 2 inches
• Tip Material: Rock Carbide with serrated titanium carbide cutting edge
• Pack Quantity: 25
• Weight: 2.5 pounds
• UPC: 028874254169

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: DW5416B25
