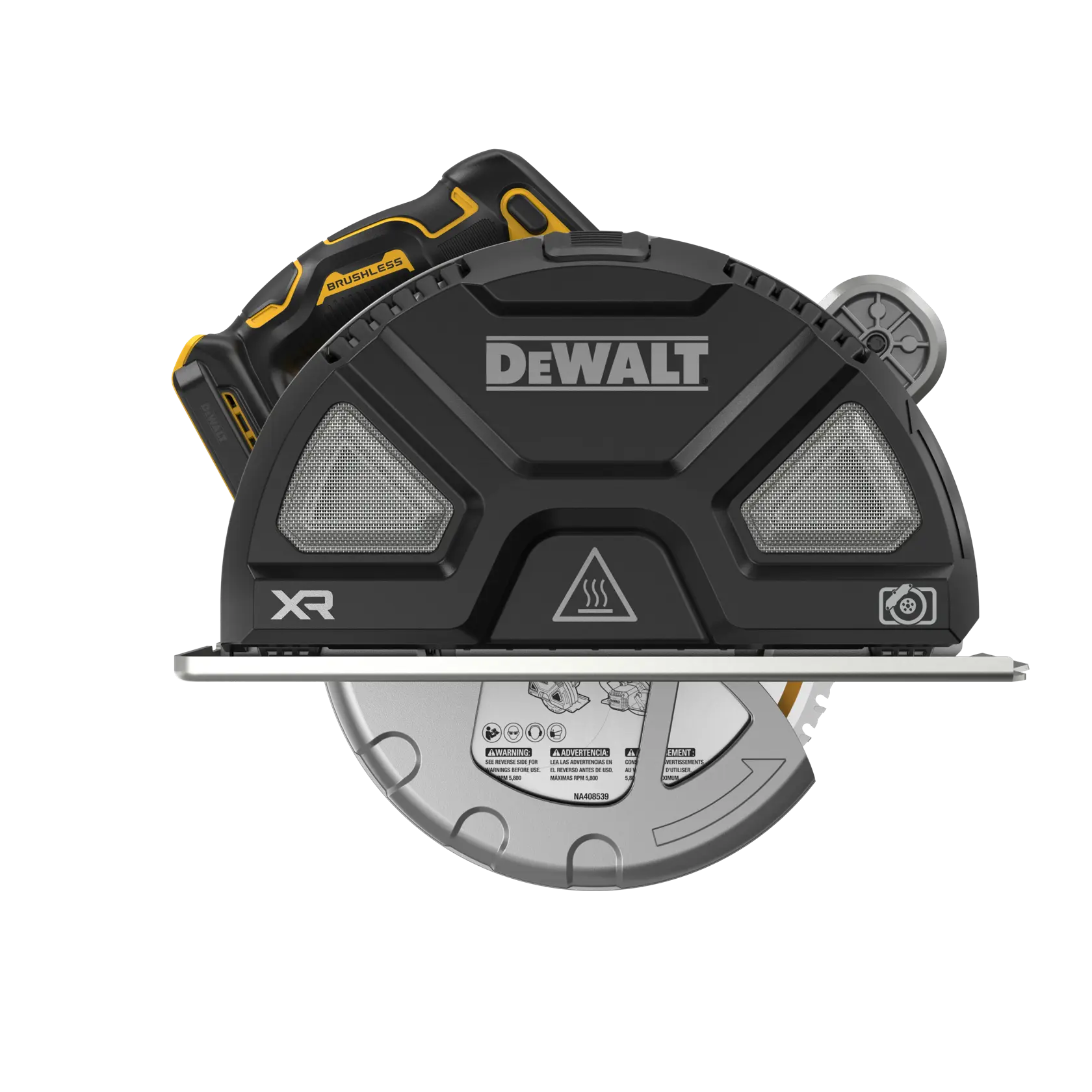

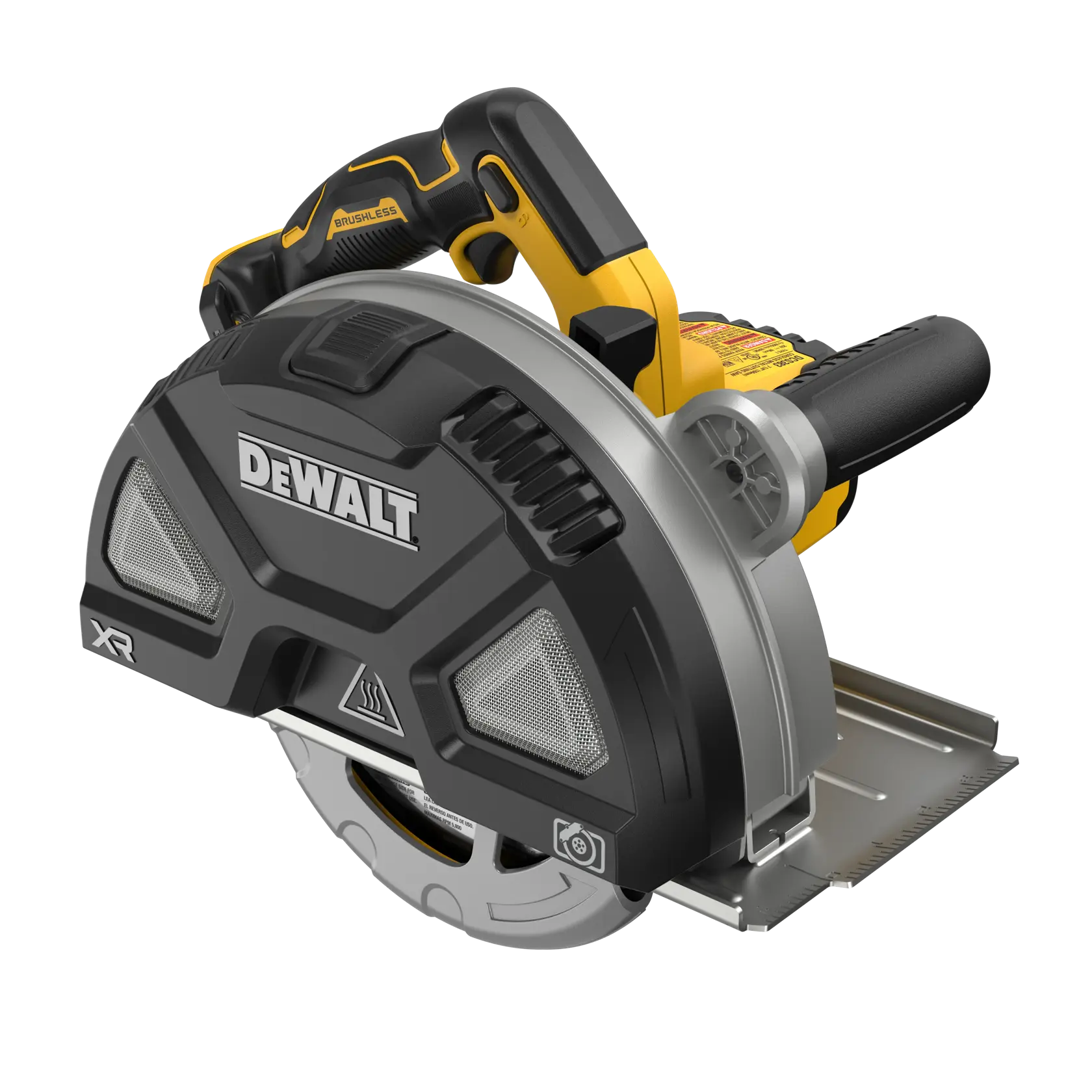

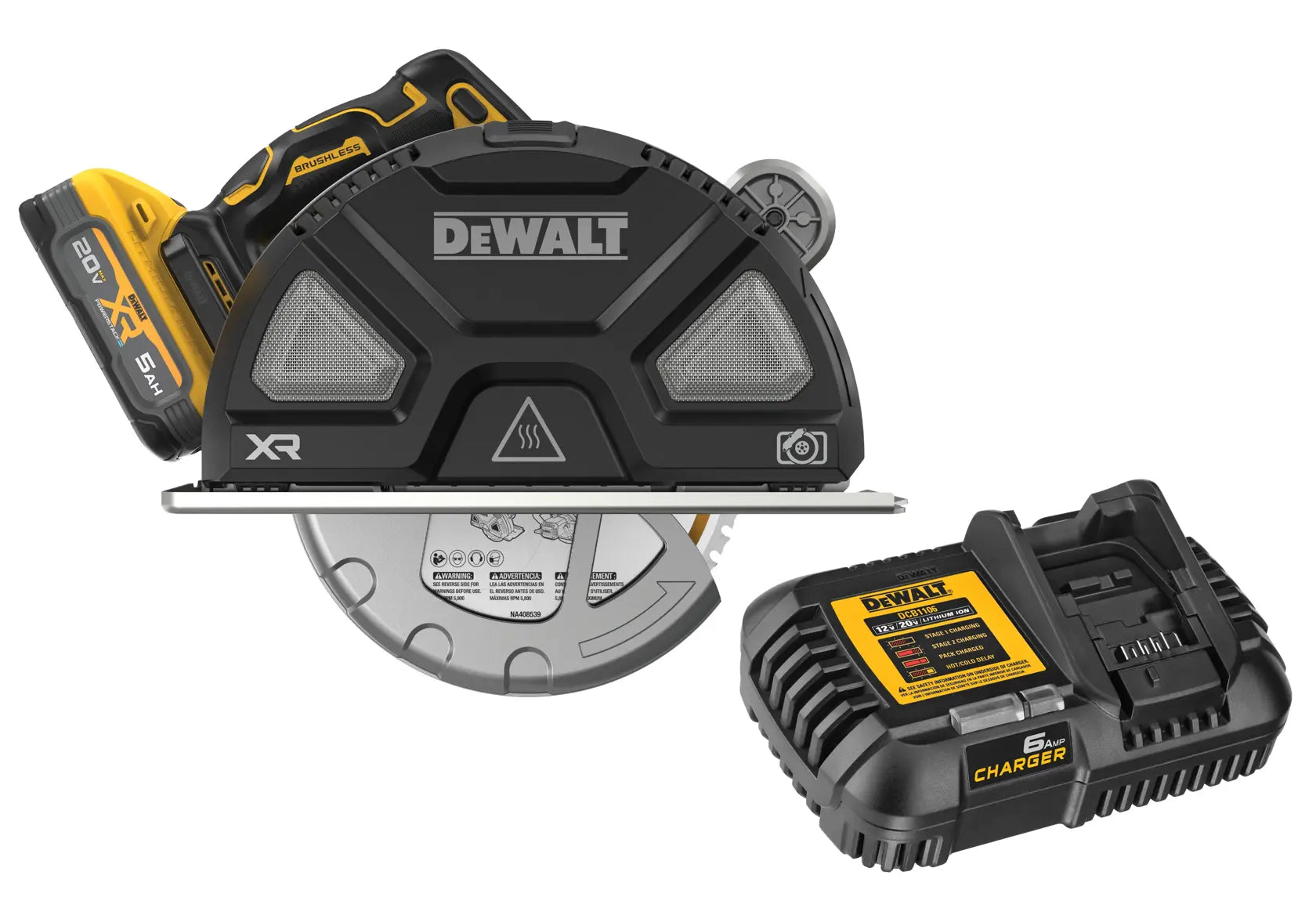

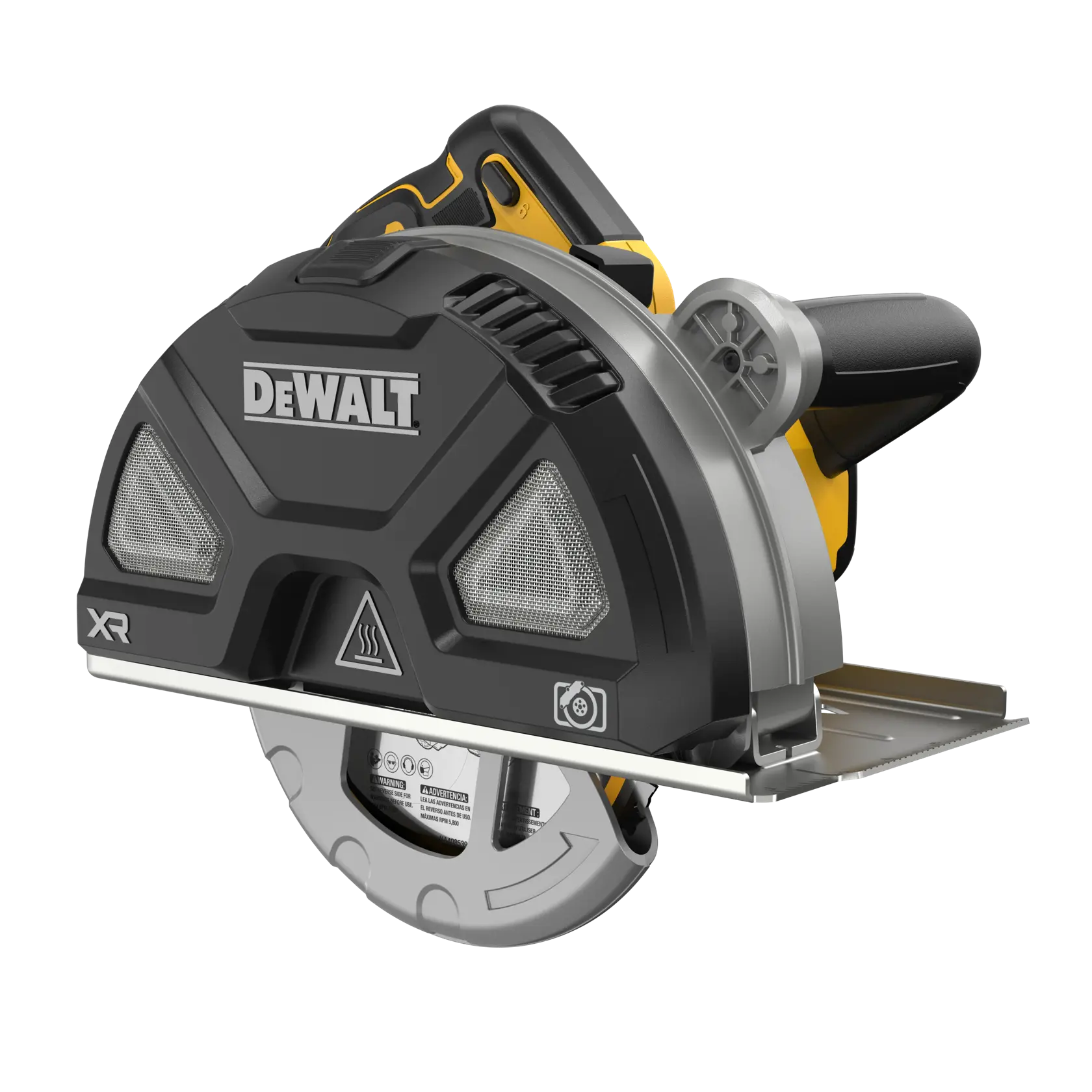

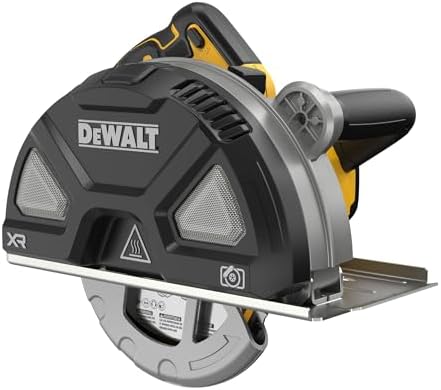

Dewalt DCS383B Metal Cutting Circular Saw 20V Max XR 1,400 MWO (7-1/4 in)

Product Description

The DeWalt DCS383B is a 20V Max XR 7-1/4 in metal cutting circular saw with a brushless motor delivering up to 1,400 MWO. It offers a 2-5/8 in depth of cut and an integrated chip collector for managing metal shavings. The tool includes an electronic brake that stops the blade in less than one second and Tool Connect+ connectivity; it is sold as a tool-only model and includes a 7-1/4 in 48T blade and blade change wrench.

• Brushless motor delivering up to 1,400 MWO on the 20V Max XR platform; battery and charger sold separately
• 7-1/4 in carbide blade with 48 teeth and 2-5/8 in depth of cut for metal cutting applications
• Integrated chip collector, electronic brake (stops blade in <1 second) and Tool Connect+ connectivity

Product Highlights

Cordless 20V Max XR metal cutting circular saw with 7-1/4 in blade, 2-5/8 in depth of cut, integrated chip collection, electronic brake, and Tool Connect+.

Product Information

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: DCS383B

Technical Specifications

• Brand: DeWalt
• Manufacturer Part Number: DCS383B
• Model: DCS383B
• Product Type: Circular Saw (metal cutting)
• Platform: 20V Max XR
• Power (max watts out, MWO): Up to 1,400 MWO
• Input Voltage: 20V (maximum initial battery voltage; nominal 18V)
• Power Source: Battery
• Motor Type: Brushless
• Blade Diameter: 7-1/4 in.
• Blade Teeth: 48
• Blade Material: Carbide
• Depth of Cut: 2-5/8 in.
• Cutting Capacity / Primary Materials: Steel, aluminum, siding, corrugated decking, steel studs, pipe
• Cordless: Yes
• Tool Only: Yes (battery and charger sold separately)
• Electronic Brake: Stops blade in less than 1 second
• Chip Collection: Integrated chip collector
• Connectivity: Tool Connect+
• Included Items: DCS383 20V MAX XR saw (tool only); DWAM71448 7-1/4 in. 48T metal cutting blade; blade change wrench
• Dimensions (manufacturer): 13.39 in L x 10.71 in W x 9.37 in H
• Weight (manufacturer): 13.3 Pounds
• Wattage: 1400 watts (MWO)
• Bevel Capacity: 0 degrees
• Performance Notes: Cuts up to 214 20-gauge steel studs per charge and up to 105 feet of corrugated decking per charge (with DCBP520 battery and DWAM71448 blade, per DEWALT test conditions)
