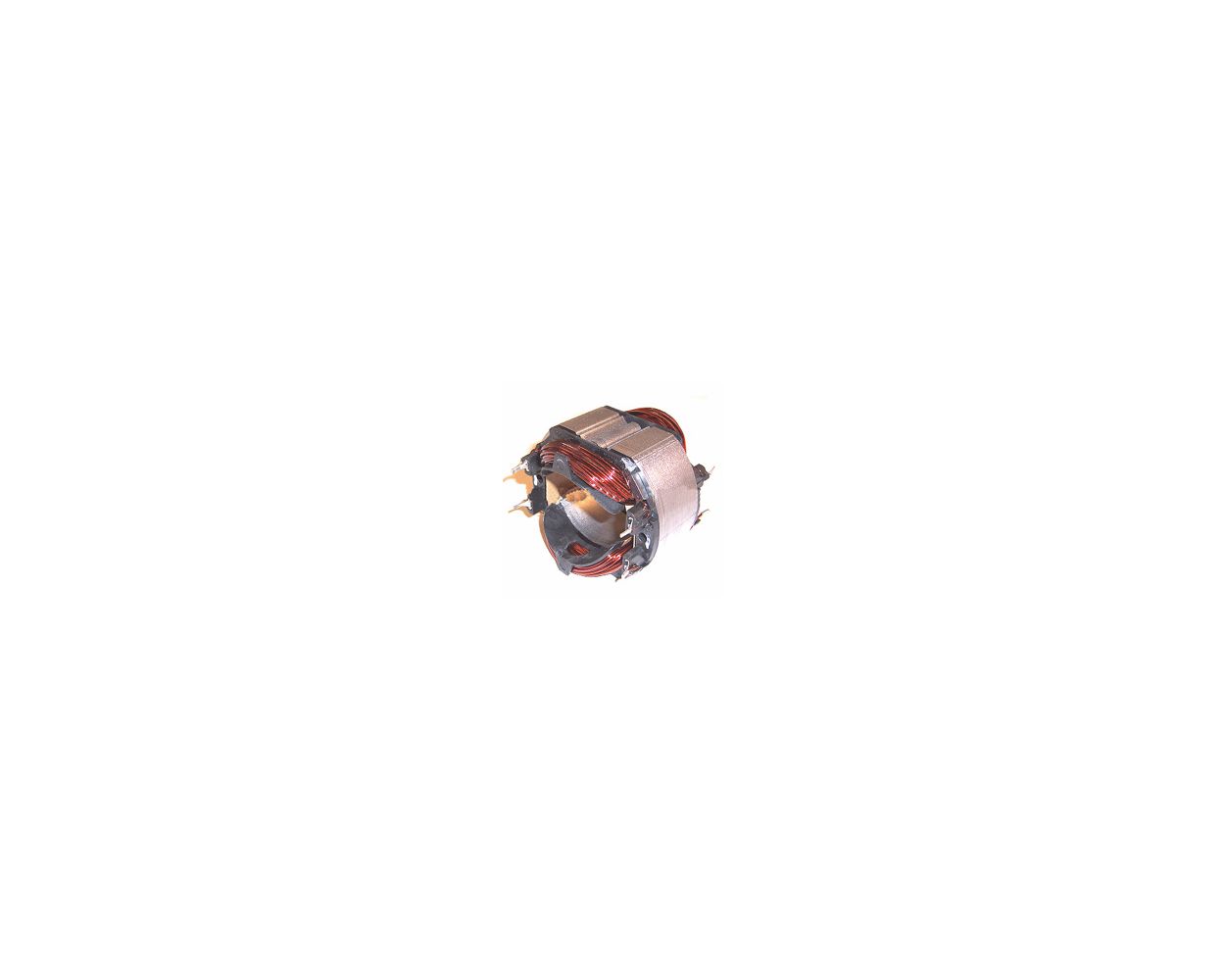

Dewalt 629392-00 Field Replacement Part

Product Description

The DEWALT 629392-00 is a field component designed for use in DEWALT power tools. A field, also called a field coil or field winding, is an electromagnetic assembly inside a brushed motor that generates the magnetic field required for motor operation. When a field coil fails, the motor loses torque, runs intermittently, or stops entirely. Replacing the field restores proper motor function and extends the service life of the tool. This part is sourced as a genuine DEWALT replacement component and is installed by qualified service technicians.

This field component is used in the repair and rebuild of compatible DEWALT power tools that use brushed motor assemblies. Typical applications include shop and job-site tools where the motor has developed heat damage, shorted windings, or reduced output. Installation is performed during a bench repair service rather than in the field. Specific tool model compatibility should be confirmed against the DEWALT parts lookup or service manual prior to ordering.

Key Features

• Genuine DEWALT replacement field component for brushed motor repair
• Restores full motor torque and output when original field has failed
• Direct OEM-sourced part for accurate fitment
• Suited for bench repair and authorized service center use

Compatibility

Designed as an OEM-style replacement field component for compatible DEWALT brushed-motor power tools. Confirm fitment using the DEWALT parts diagram or service documentation for the specific tool model before installation.

Installation Notes

Field replacement should be performed by a qualified power tool service technician. Disconnect and unplug the tool completely before disassembly. Discharge any stored energy and follow standard lockout procedures. Take note of all wiring routing and brush positioning before removing the original field to ensure correct reassembly.

Technical Specifications

• Part Type: Field Coil Assembly
• Brand: DEWALT

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: 629392-00
